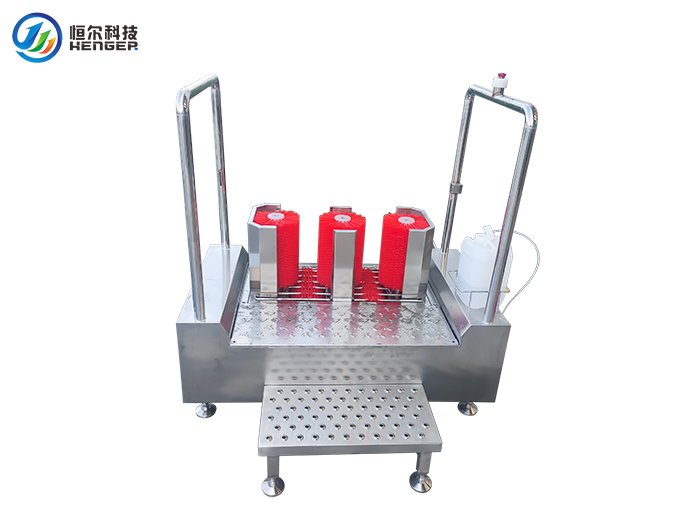

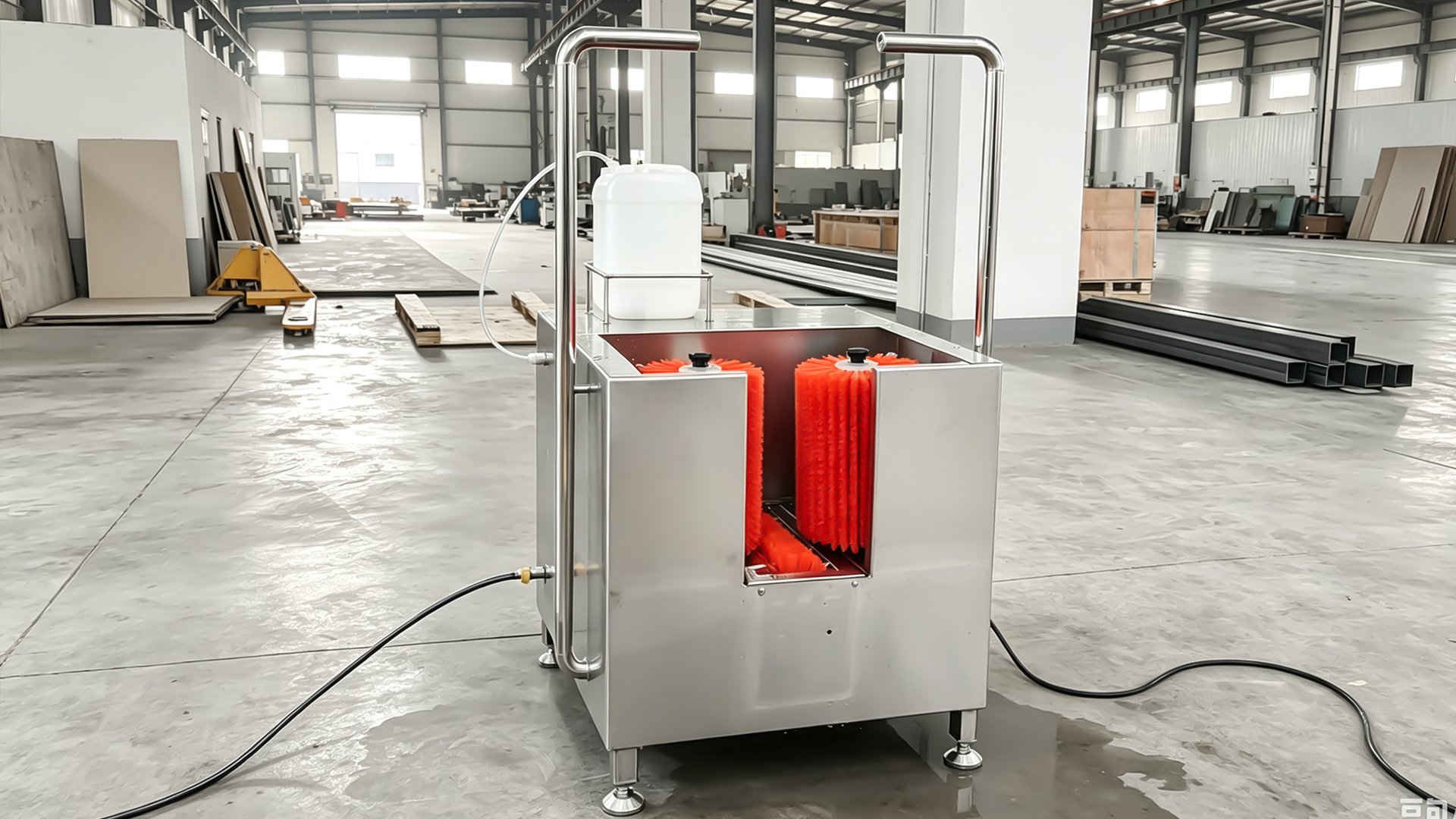

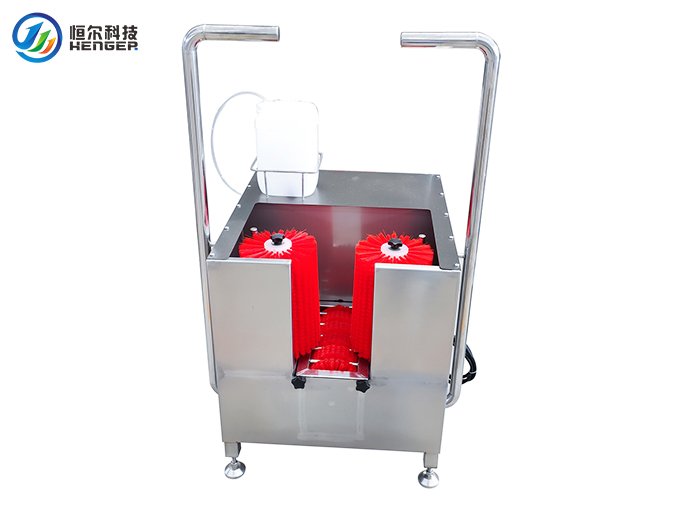

HE-HCDS18 Small-Footprint Boot Sole Washing Unit with Extended Height

Product Introduction

The Henger Technology HE-HCDS18 is a small-footprint, dedicated boot sole washing and disinfection unit sharing the same base footprint as the HE-HCDS15 and HE-HCDS16, with an extended 1500 mm height configuration.

Operating at 0.4 kW and built from 304 stainless steel, the HE-HCDS18 is designed for facilities requiring sole-only boot cleaning with a taller unit profile, potentially accommodating additional structural or signage requirements.

Core Advantages

• Extended Height Configuration: At 1500 mm tall, offers a taller profile than the HE-HCDS16 for facilities with specific installation requirements.

• Dedicated Sole Cleaning: Focuses exclusively on boot sole washing and disinfection.

• Very Low Power Consumption: The 0.4 kW rating offers highly energy-efficient operation.

• 304 Stainless Steel Construction: Durable build suited to humid, food-grade environments.

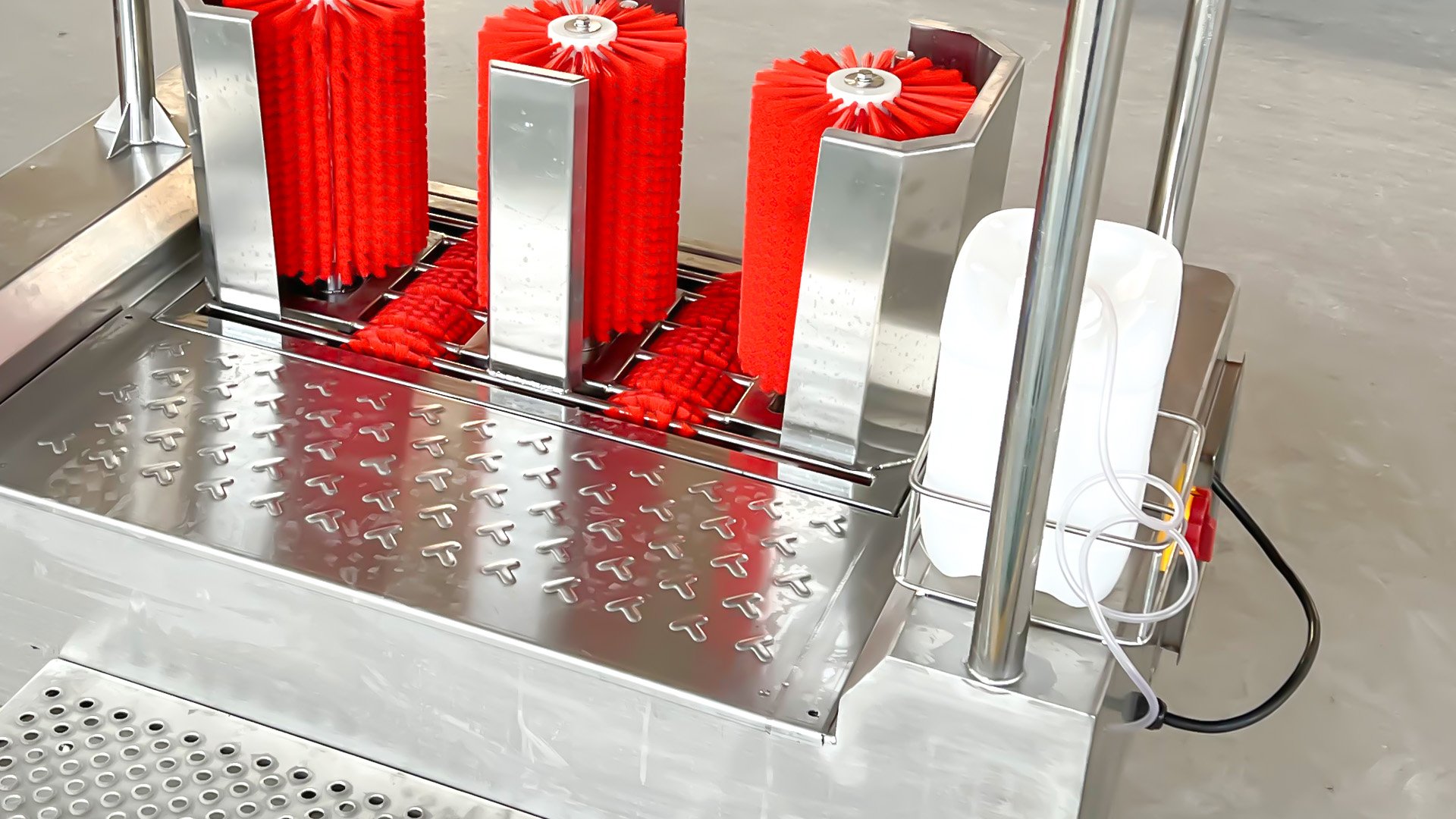

• Photoelectric Sensor Automation: Fully automatic operation activates on approach and stops after passage.

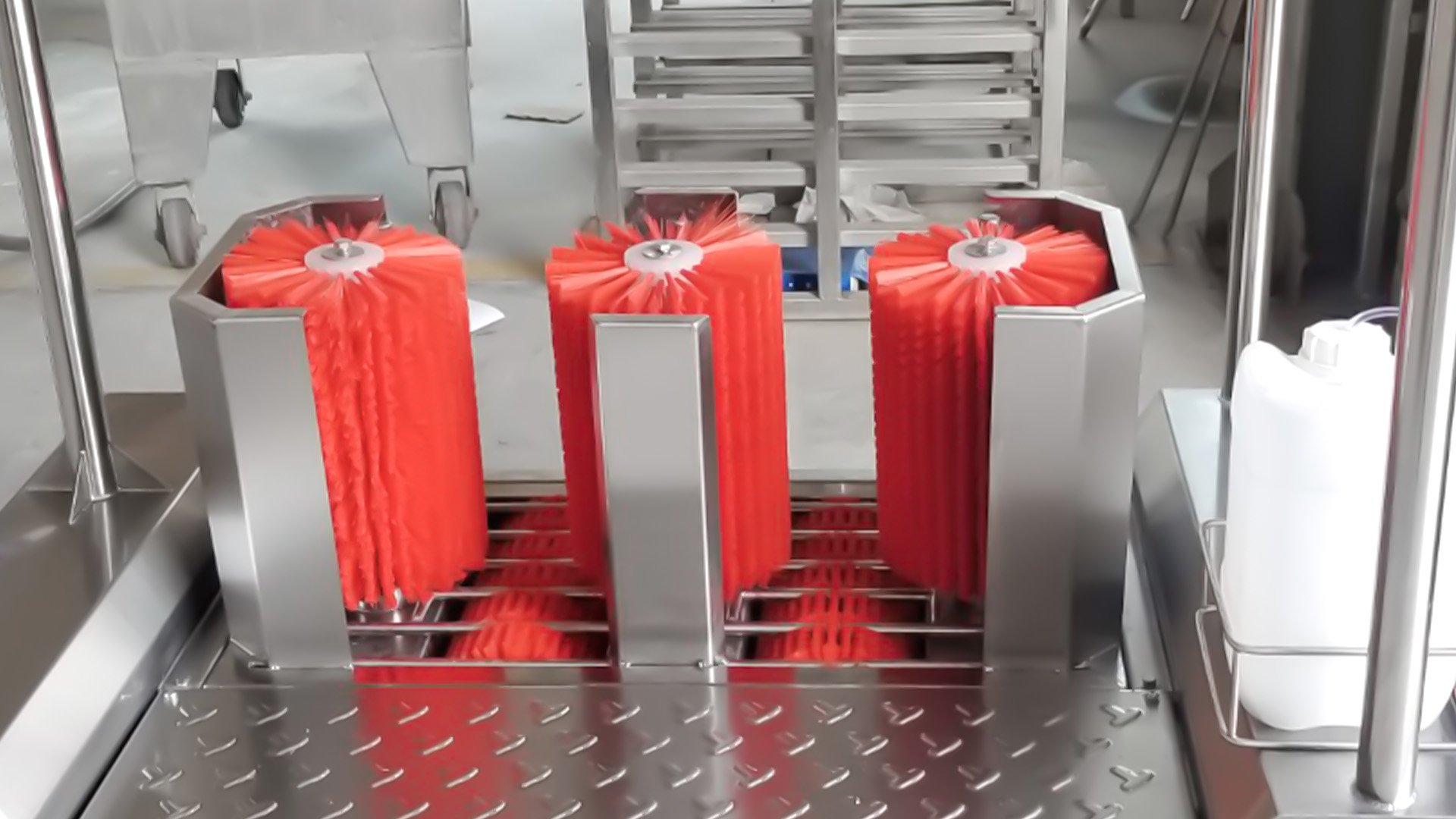

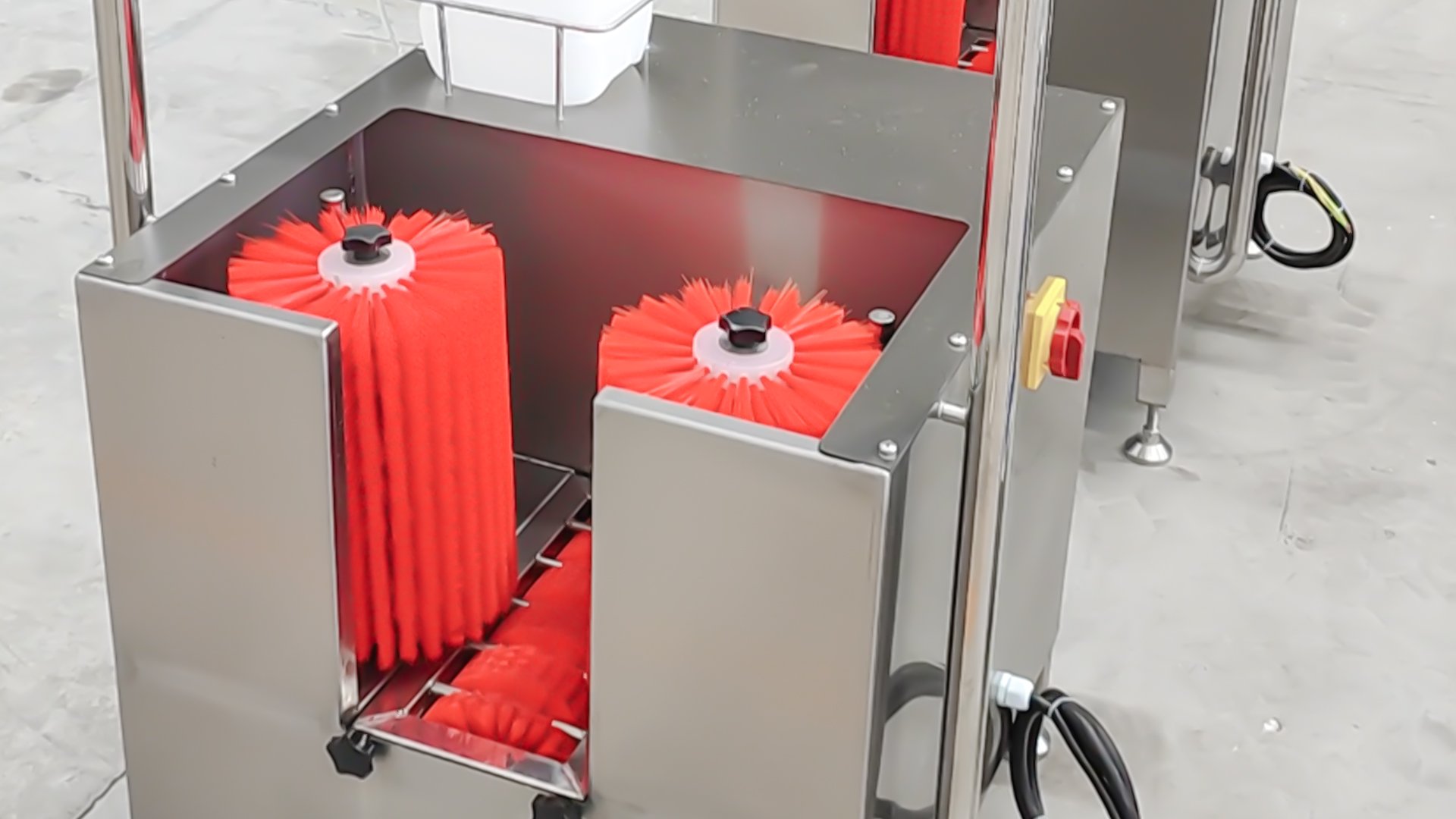

• Quick-Release Brush Design: High-strength food-grade polyester fiber brushes can be replaced without tools.

Technical Specifications

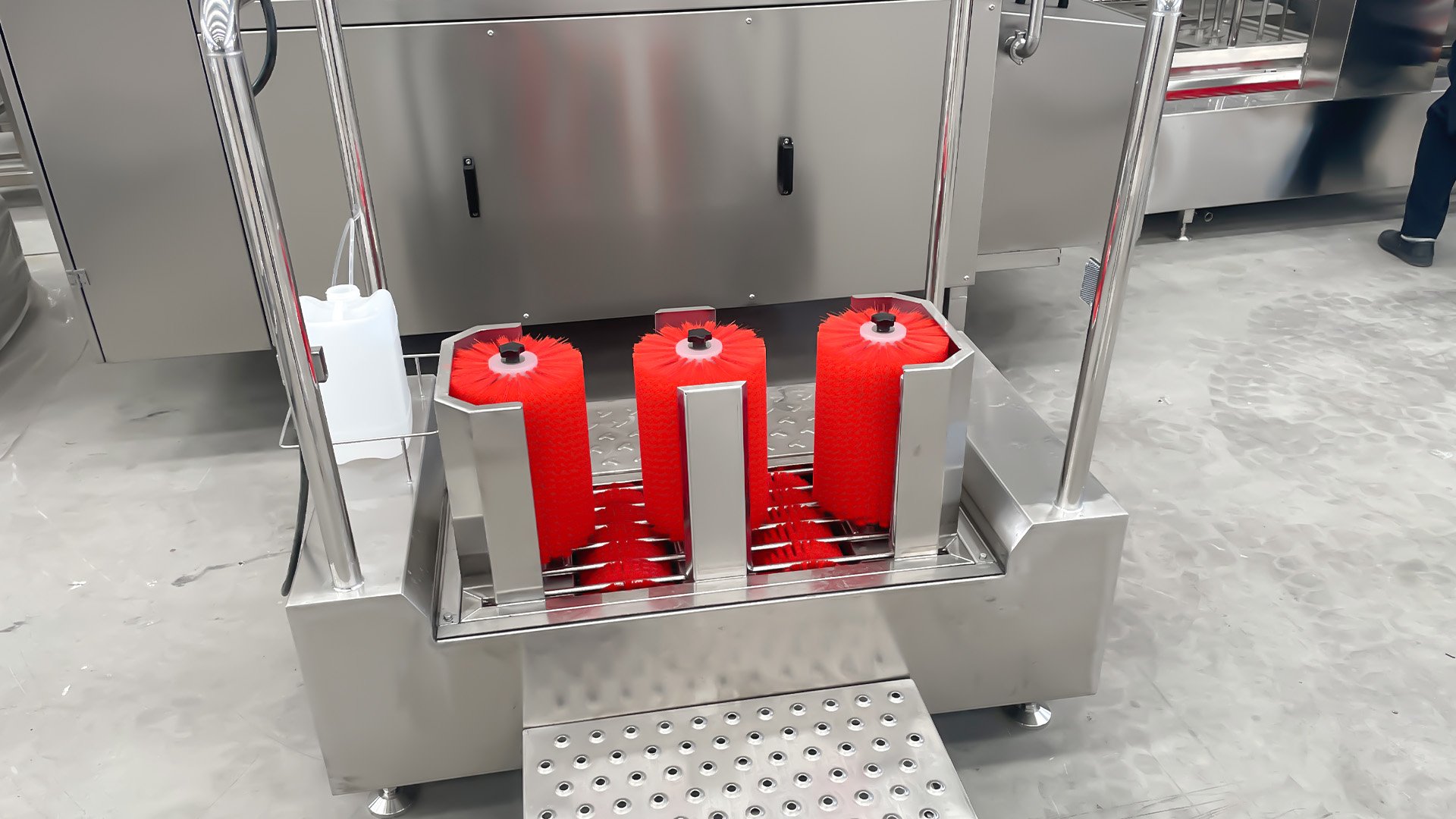

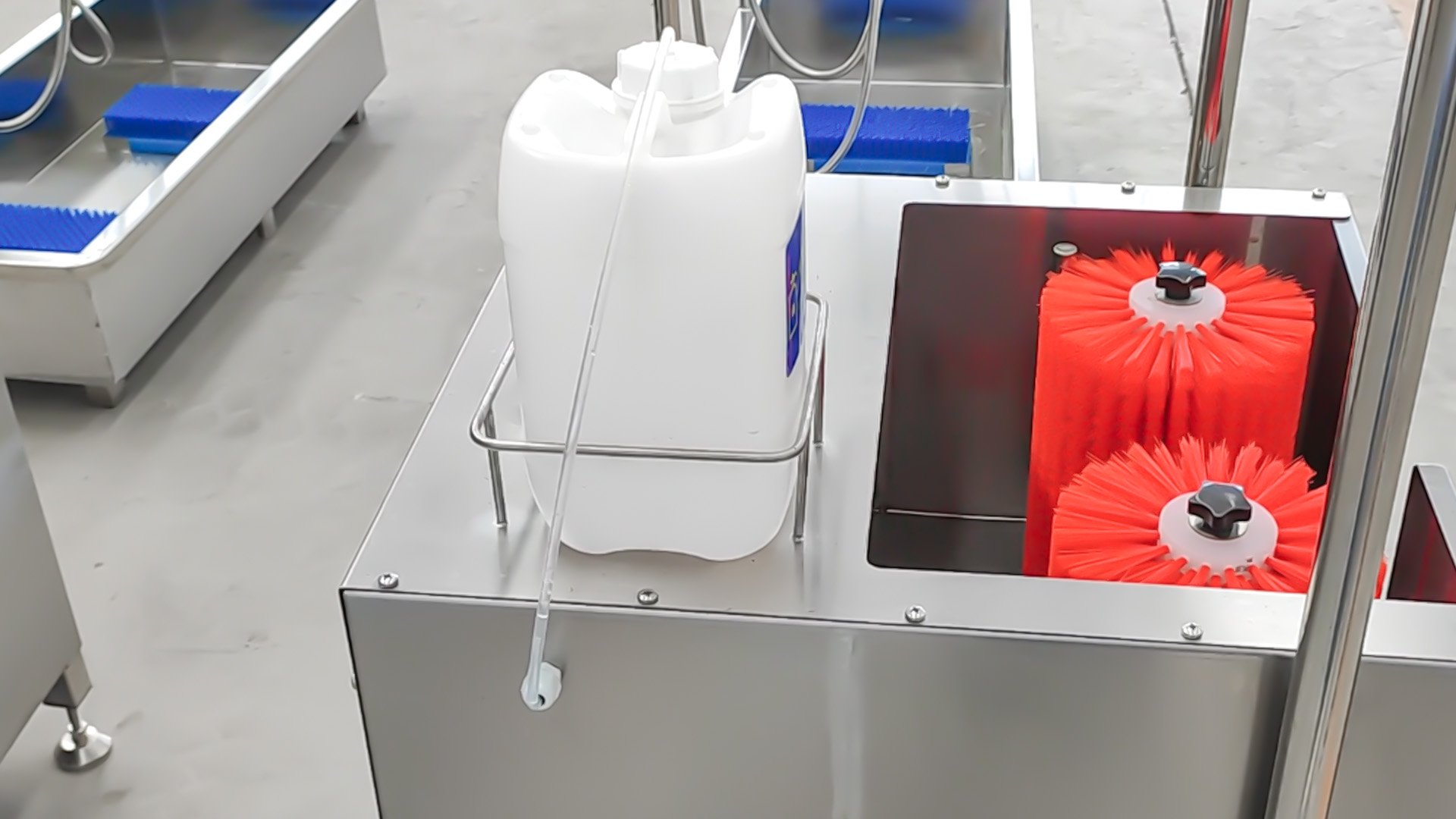

Equipment Detail Display

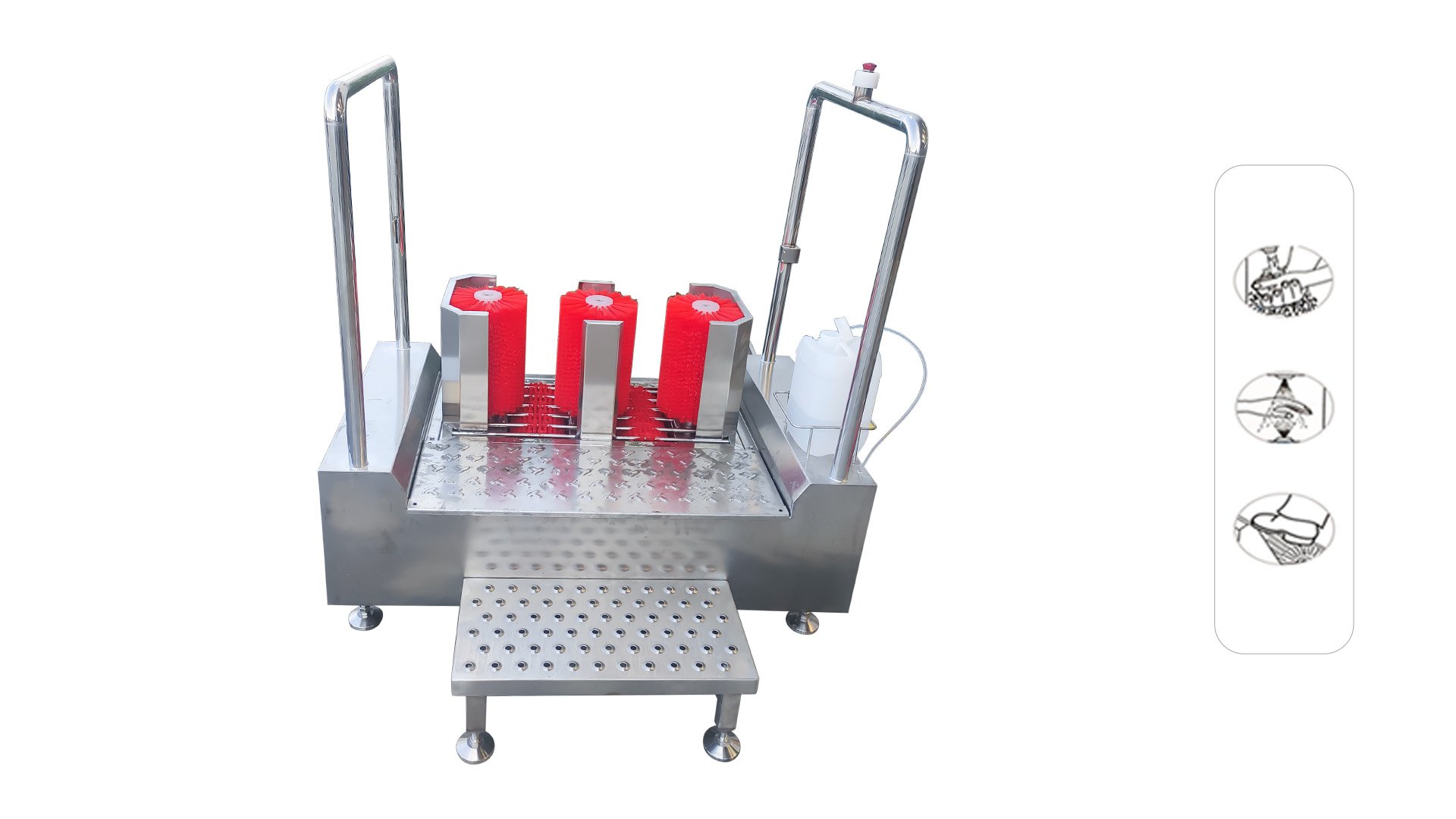

Working Principle

The HE-HCDS18 operates through a minimal, sensor-activated boot sole cleaning cycle:

1. Approach Detection: Photoelectric sensors detect the worker's approach and activate the cycle.

2. Boot Sole Washing & Disinfection: Horizontal brushes scrub and disinfect boot soles.

3. Cycle Completion: The machine stops automatically after the worker passes through.

Application Scenarios & Industry Cases

The HE-HCDS18 is suited for facilities requiring sole-only cleaning with a taller unit profile:

• Facilities with Specific Height Requirements: Suited to installations requiring a taller unit profile.

• Supplementary Sanitation Points: Adds boot sole hygiene at locations already served by other hand hygiene stations.

• Small Bakeries & Pet Food Facilities: Provides minimal-footprint sole cleaning.

• Internal Zone Transitions: Suitable for transitions between low-risk processing zones.

Qualification & Factory Strength

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. specializes in clean industrial and hygiene equipment for food processing facilities. The HE-HCDS18 offers a taller-profile sole cleaning solution within our compact station range.

Our production facility applies precision stainless steel fabrication with fully welded, GMP-compliant surfaces. Henger Technology hygiene equipment is manufactured under CE and ISO 9001 certified processes.

Frequently Asked Questions (FAQ)

Q: How does the HE-HCDS18 differ from the HE-HCDS16?

A: Both provide sole-only boot cleaning with the same base footprint; the HE-HCDS18 has a taller 1500 mm height compared to the HE-HCDS16's 1200 mm.

Q: What are the dimensions of the HE-HCDS18?

A: The unit measures 910 x 400 x 1500 mm (L x W x H).

Q: What is the power consumption of the HE-HCDS18?

A: The unit operates at 0.4 kW.

Q: Does the HE-HCDS18 include hand hygiene functions?

A: No. It is a dedicated boot sole washing unit without integrated hand hygiene or access control.

Q: Can the voltage be customized?

A: Yes. Standard voltage is 380V / 50Hz; configurations for 220V single-phase, 60Hz, or other regional standards are available upon request.

Q: How do I maintain the equipment?

A: Daily rinsing of brush rollers, weekly inspection of the disinfectant tank, and monthly checks of electrical connections and sensors are recommended.

Contact Henger Technology for Your Custom Solution

For a detailed technical proposal or a factory-direct quotation, please contact our engineering team. We offer free layout drawings and customized configuration plans based on your facility's specific throughput and space requirements.
