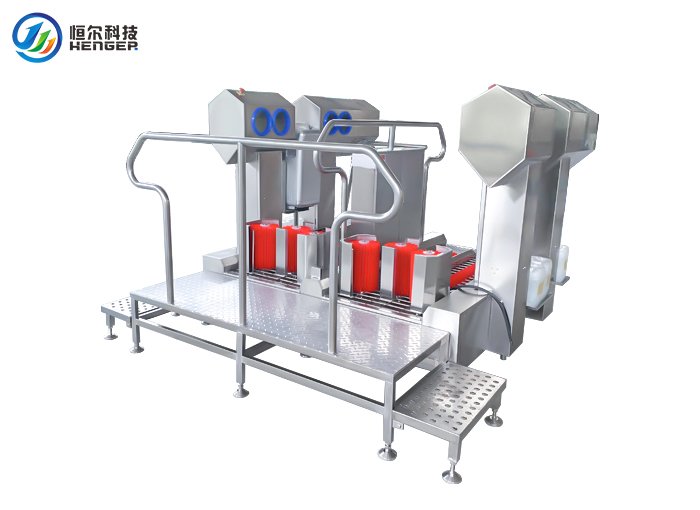

HE-HCDS01 Full-Feature Hygiene Cleaning Station for High-Traffic Entrances

Product Introduction

The Henger Technology HE-HCDS01 is a full-feature hygiene cleaning station engineered for high-traffic entry points in food processing facilities requiring maximum throughput and complete personnel sanitation coverage. As the flagship model in the hygiene station lineup, it integrates hand washing, hand disinfection, hand drying, boot side and sole washing and disinfection, and access control into a single automated unit.

Constructed from 304 stainless steel with 2.0 mm plate thickness, the HE-HCDS01 is built for continuous operation in humid, high-throughput production environments. Its 7.5 kW power configuration supports the largest functional footprint in the series, making it suitable for main entrances serving large workforces.

Core Advantages

• Complete Hygiene Coverage: Combines hand washing, hand disinfection, hand drying, and boot side/sole cleaning and disinfection in one automated cycle.

• High-Capacity Design: The 2450 x 2250 x 1600 mm footprint and 7.5 kW power rating support high-traffic entrances with continuous worker flow.

• Photoelectric Sensor Control: Fully automatic operation activates on approach and stops after passage, minimizing contact contamination risk.

• 304 Stainless Steel Construction: 2.0 mm plate thickness provides durability in humid, chemically exposed food processing environments.

• Access Control Integration: The gate unlocks only after the full hygiene cycle is completed, enforcing consistent compliance across every worker and shift.

• Quick-Release Brush System: High-strength food-grade polyester fiber brushes can be replaced without tools for streamlined maintenance.

• Built-In Safety Features: Emergency stop button, auto-stop when idle, and leakage protection switch support safe daily operation.

Technical Specifications

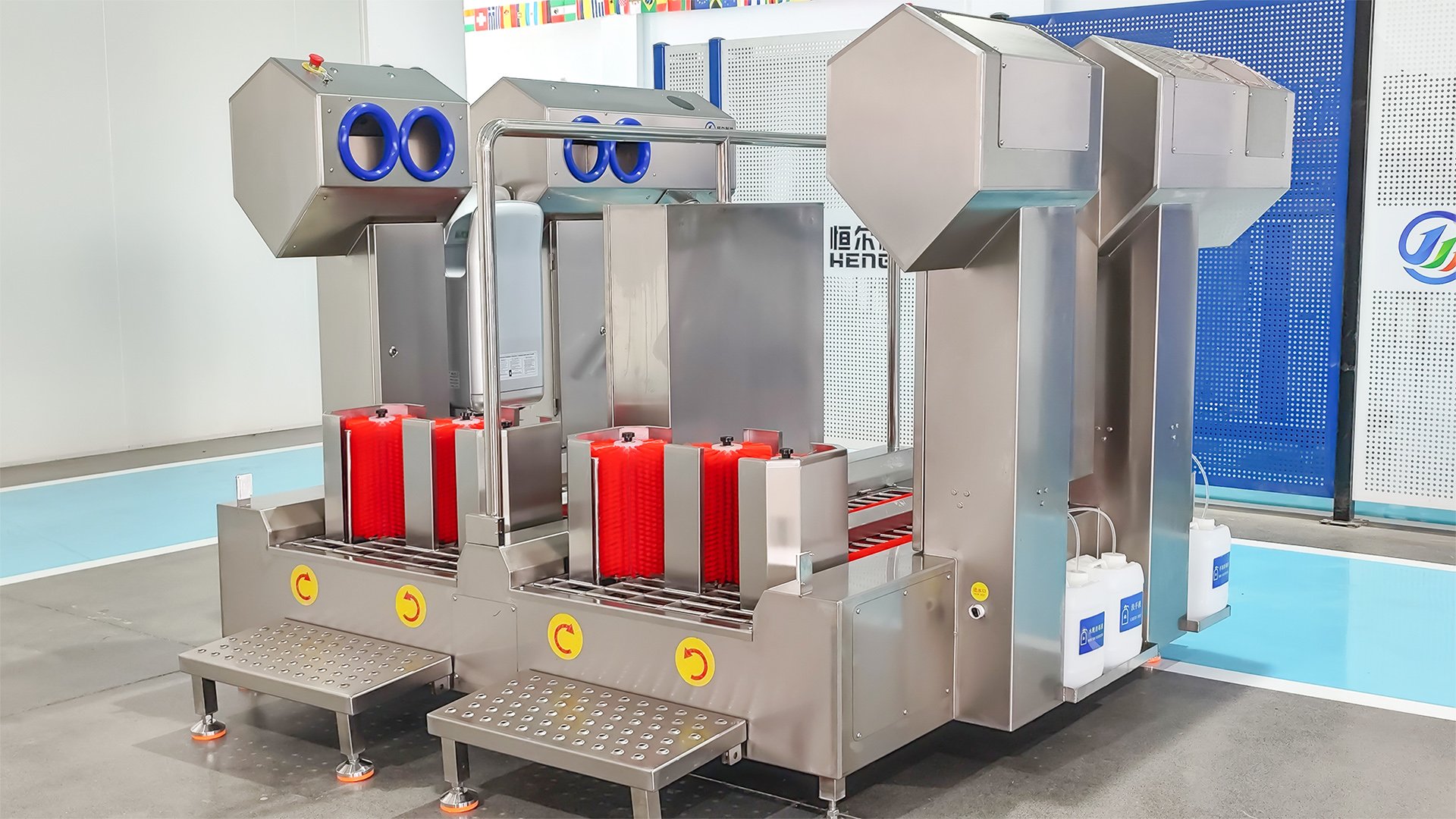

Equipment Detail Display

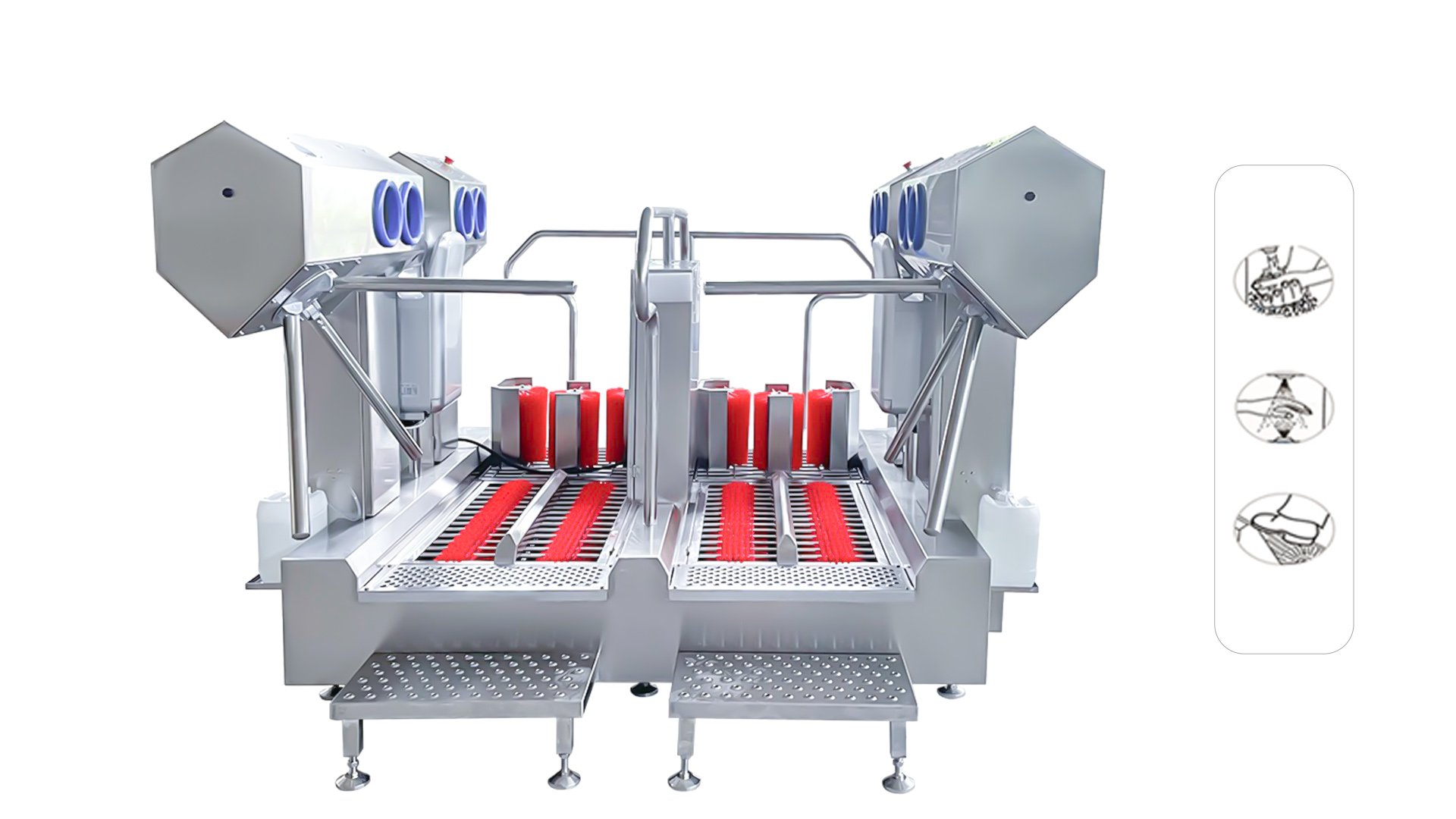

Working Principle

The HE-HCDS01 operates through a four-step sensor-activated hygiene cycle:

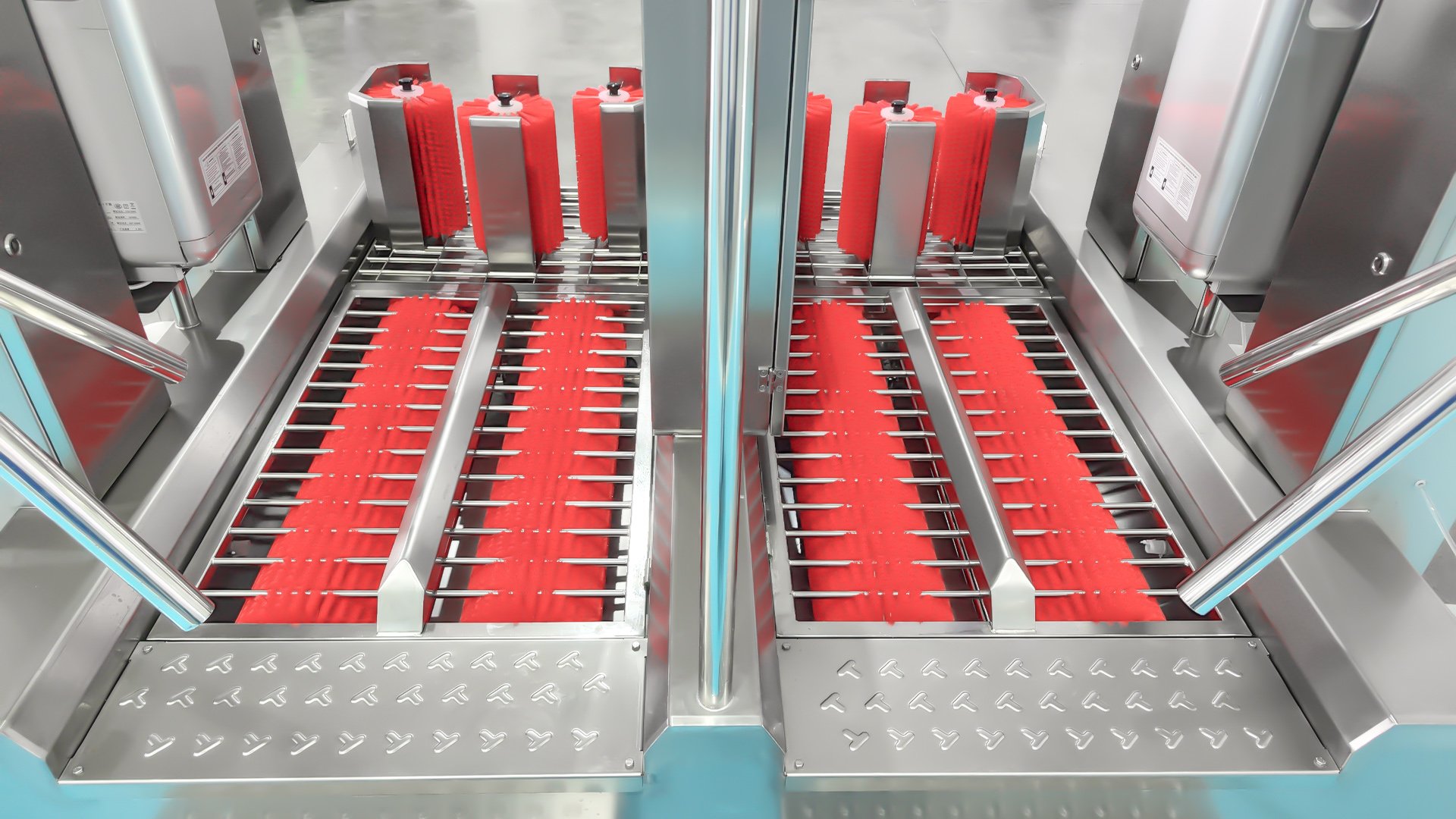

1. Boot Side Washing & Disinfection: Photoelectric sensors detect approach; vertical rotating brushes clean and disinfect both sides of the boots simultaneously.

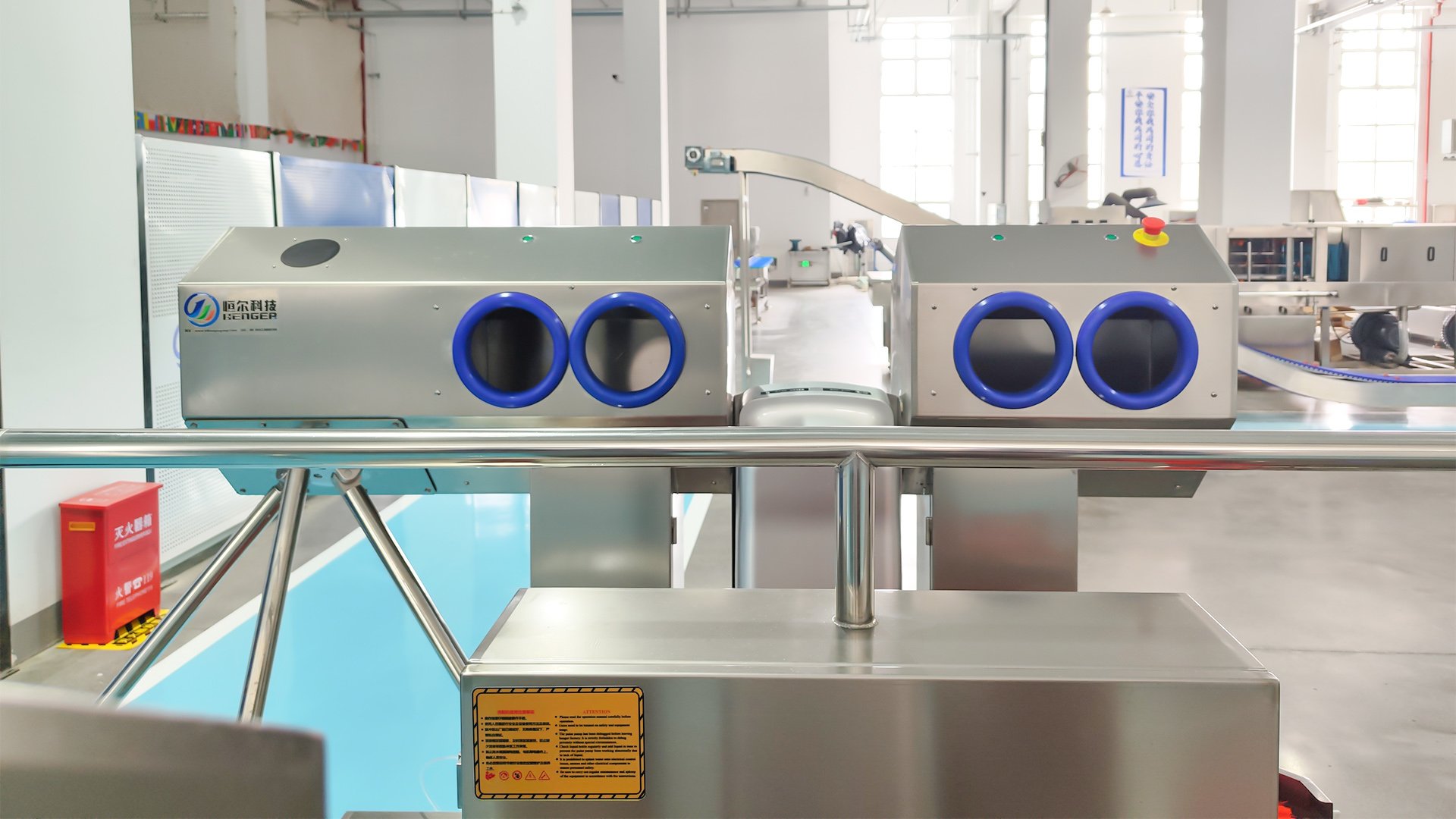

2. Hand Washing & Sanitizing: The integrated hand wash basin auto-dispenses water and sanitizer for thorough hand cleaning.

3. Hand Drying + Boot Sole Cleaning: The built-in hand dryer operates simultaneously while horizontal brushes scrub and disinfect boot soles.

4. Final Hand Disinfection & Access Control: A second hand disinfection step completes the cycle, and the access gate unlocks to allow passage.

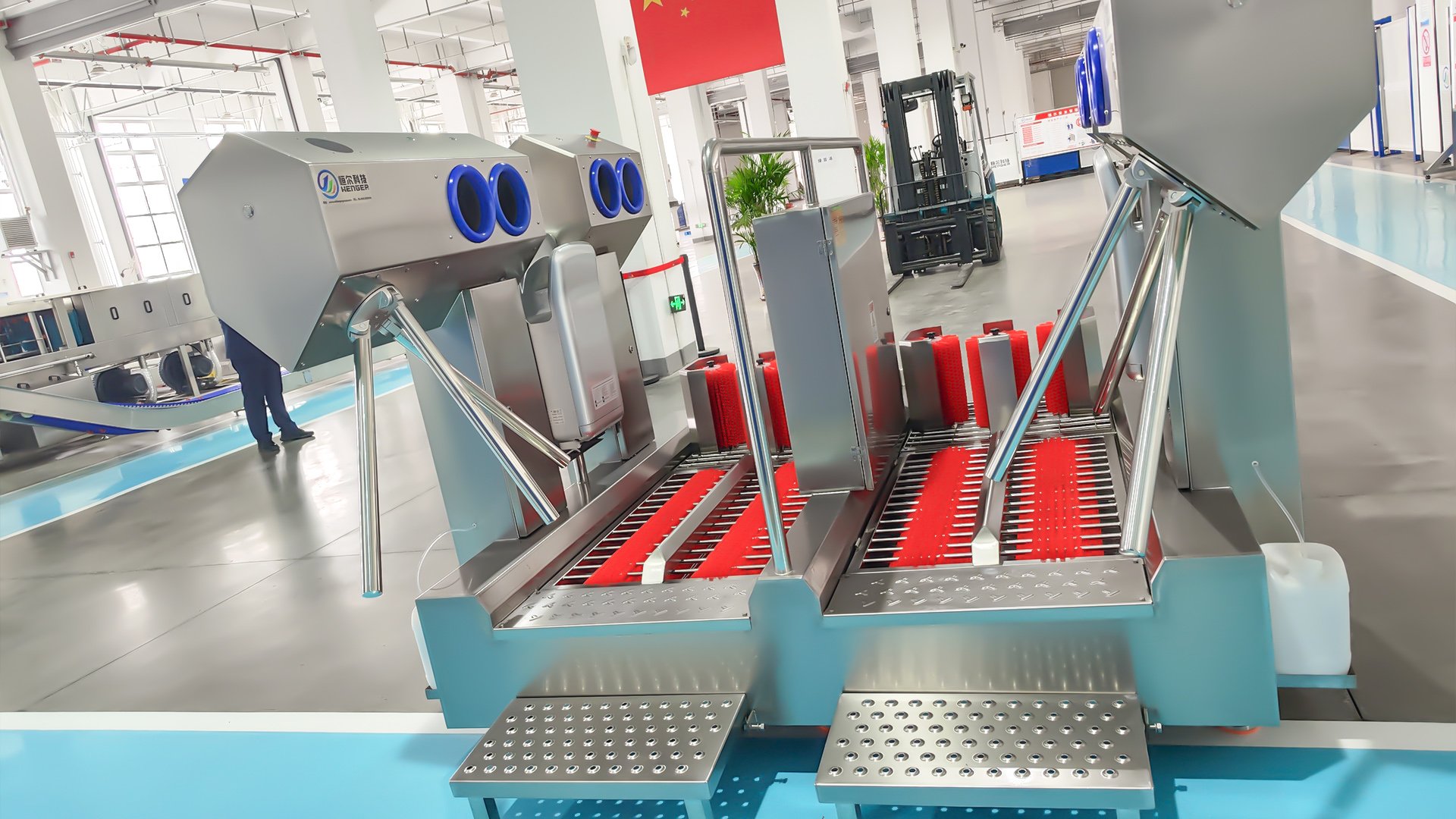

Application Scenarios & Industry Cases

The HE-HCDS01 is suited for large-scale food production facilities requiring maximum hygiene throughput:

• Meat Processing & Slaughterhouses: Prevents cross-contamination between kill floor, dressing, cutting, and chilling zones.

• Dairy Processing: Controls microbial transfer between raw milk reception, pasteurization, and packaging areas.

• Large Central Kitchens & Catering Operations: Enforces food safety at high-traffic preparation zone entrances.

• Beverage & Bottling Plants: Establishes hygiene checkpoints separating production from external environments.

Qualification & Factory Strength

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. is a professional manufacturer specializing in clean industrial and hygiene equipment for food processing facilities worldwide. The HE-HCDS01 represents our highest-capacity personnel hygiene solution, engineered for facilities with demanding throughput requirements.

Our production facility applies precision stainless steel fabrication with fully welded, GMP-compliant surfaces. All Henger Technology hygiene equipment is manufactured under CE and ISO 9001 certified processes.

Frequently Asked Questions (FAQ)

Q: What makes the HE-HCDS01 suitable for high-traffic entrances?

A: Its 7.5 kW power rating and largest footprint in the series (2450 x 2250 x 1600 mm) support continuous, high-volume worker throughput while completing the full four-step hygiene cycle for each individual.

Q: What functions are included in the HE-HCDS01?

A: Hand washing, hand disinfection, hand drying, boot side and sole washing and disinfection, and access control are all integrated into a single automated unit.

Q: Is the HE-HCDS01 suitable for humid processing environments?

A: Yes. The unit is constructed from 304 stainless steel with 2.0 mm plate thickness, designed for the demanding, humid conditions typical of food processing workshops.

Q: Can the voltage be customized?

A: Yes. Standard voltage is 380V / 50Hz; configurations for 220V single-phase, 60Hz, or other regional standards are available upon request.

Q: How is the equipment maintained?

A: Daily rinsing of brush rollers and basins, weekly inspection of the disinfectant tank and metering pump, and monthly checks of electrical connections and sensors are recommended. The quick-release brush design requires no tools for replacement.

Q: How does the access control feature work?

A: The access gate remains locked until the worker completes the full four-step hygiene cycle. Upon completion, the gate unlocks automatically to allow passage into the controlled production area.

Contact Henger Technology for Your Custom Solution

For a detailed technical proposal or a factory-direct quotation, please contact our engineering team. We offer free layout drawings and customized configuration plans based on your facility's specific throughput and space requirements.
