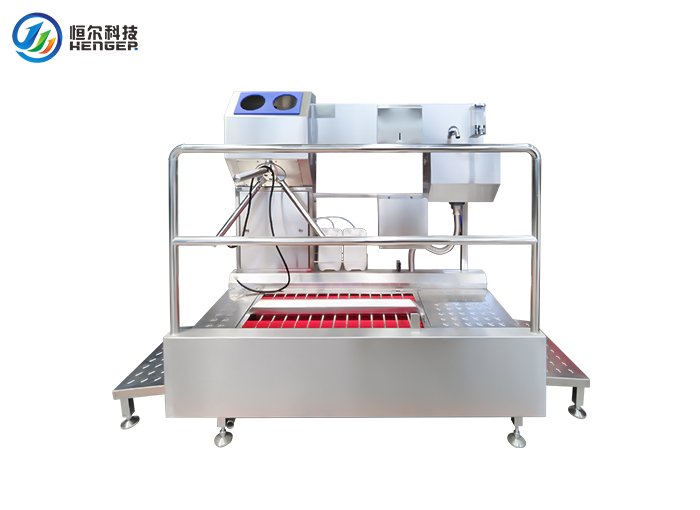

HE-HCDS08 Auto Wash Basin Station with Boot Sole Cleaning

Product Introduction

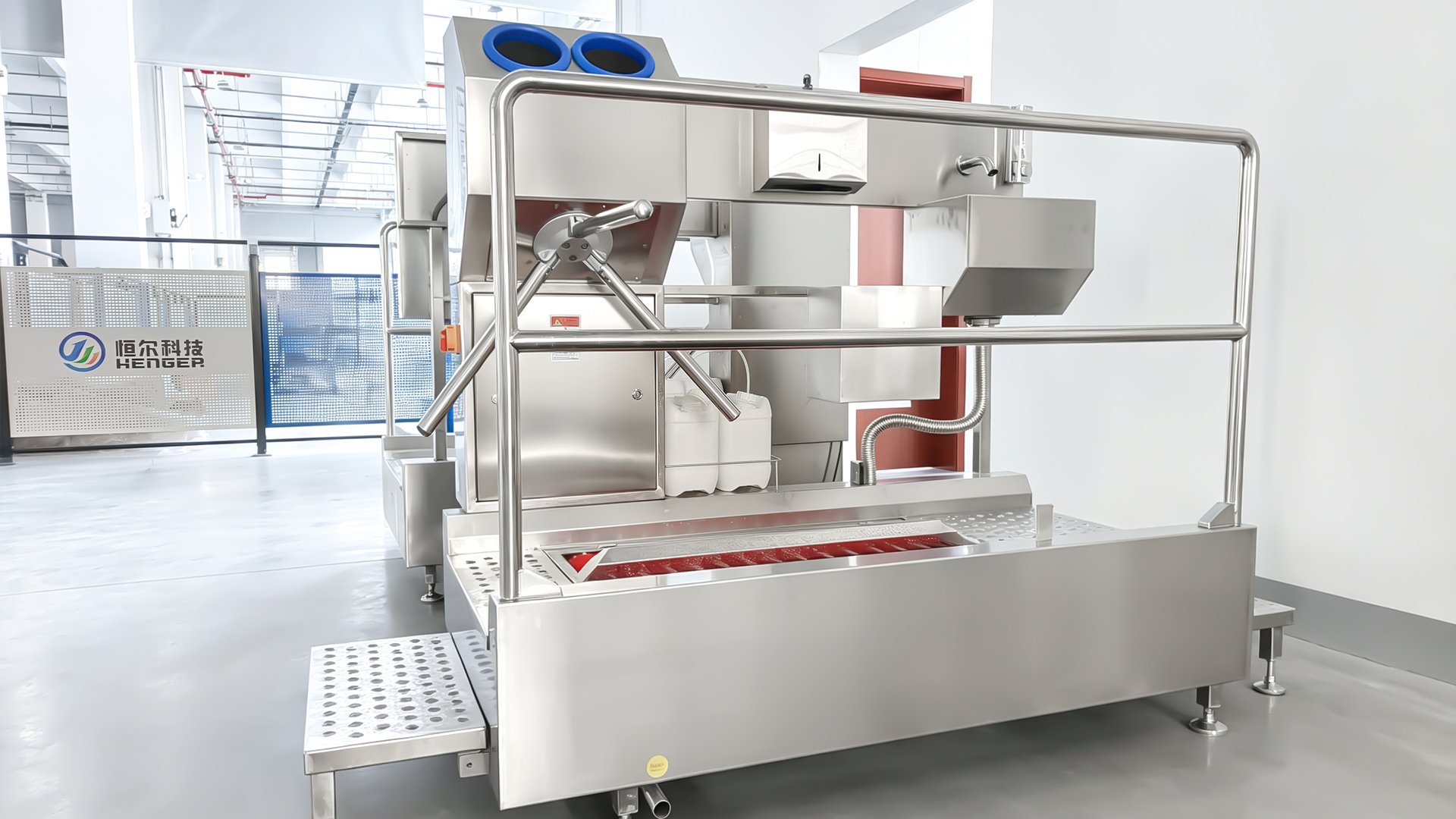

The Henger Technology HE-HCDS08 is an integrated hygiene station featuring an auto wash basin, soap dispenser, tissue and waste box, hand sanitizer, and boot sole washing and disinfection, completed by an access control gate.

Operating at 0.9 kW and built from 304 stainless steel with 2.0 mm plate thickness, the HE-HCDS08 provides the same hand hygiene amenities as the HE-HCDS07 with a streamlined, sole-focused boot cleaning cycle.

Core Advantages

• Comprehensive Hand Hygiene Amenities: Combines an auto wash basin, soap dispenser, tissue/waste box, and hand sanitizer in one unit.

• Streamlined Boot Sole Cleaning: Focuses boot cleaning on the sole area, reducing cycle time compared to full side-and-sole models.

• Low Power Consumption: The 0.9 kW rating offers energy-efficient operation.

• 304 Stainless Steel Construction: 2.0 mm plate thickness supports durability in humid, food-grade environments.

• Photoelectric Sensor Automation: Fully automatic operation activates on approach and stops after passage.

• Access Control Integration: The gate unlocks only after the complete hygiene cycle is finished.

• Convenient Waste Management: The integrated tissue and waste box supports tidy, self-contained hand hygiene practices.

Technical Specifications

Equipment Detail Display

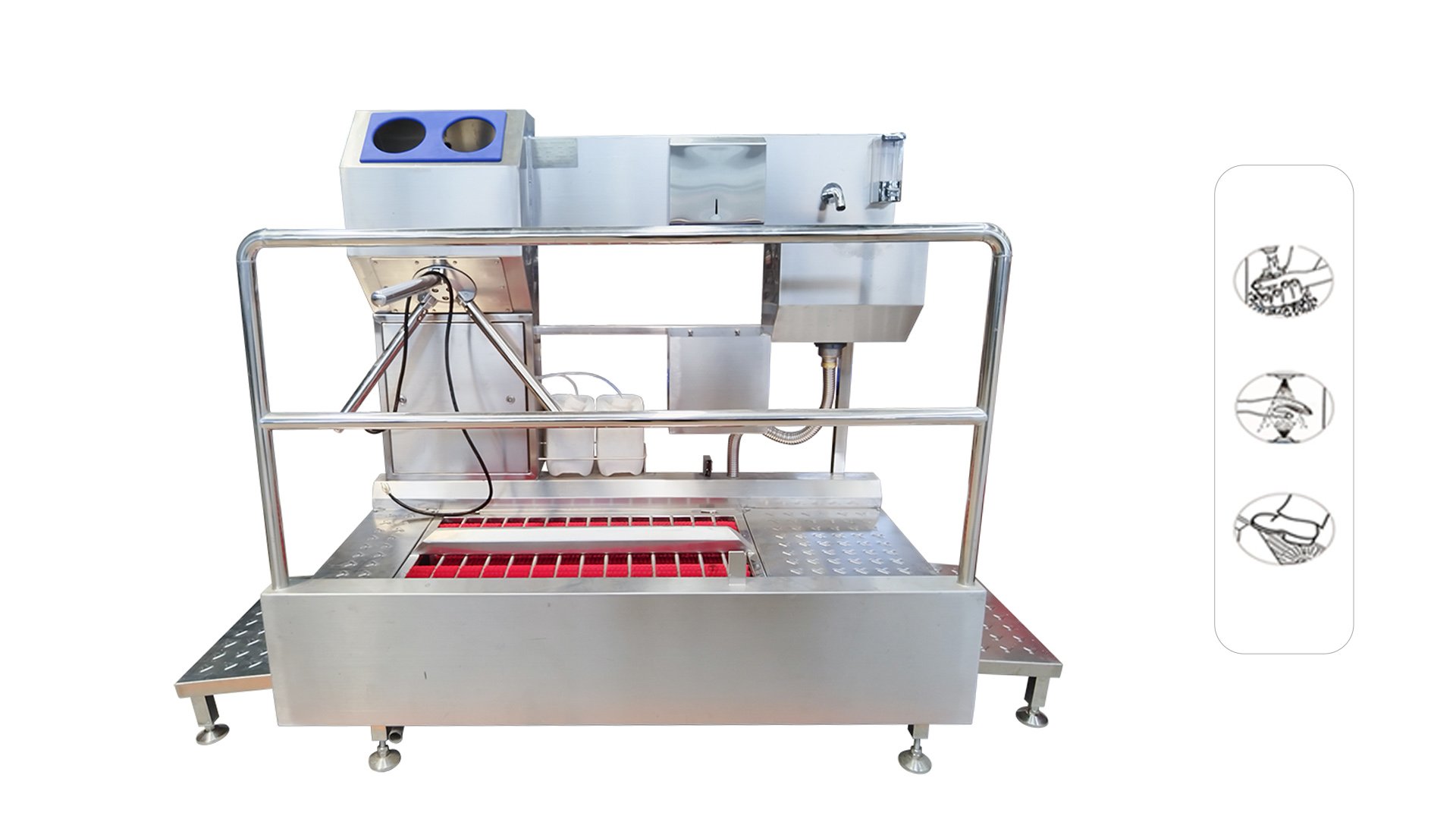

Working Principle

The HE-HCDS08 operates through a sensor-activated hygiene cycle combining hand amenities with sole-focused boot cleaning:

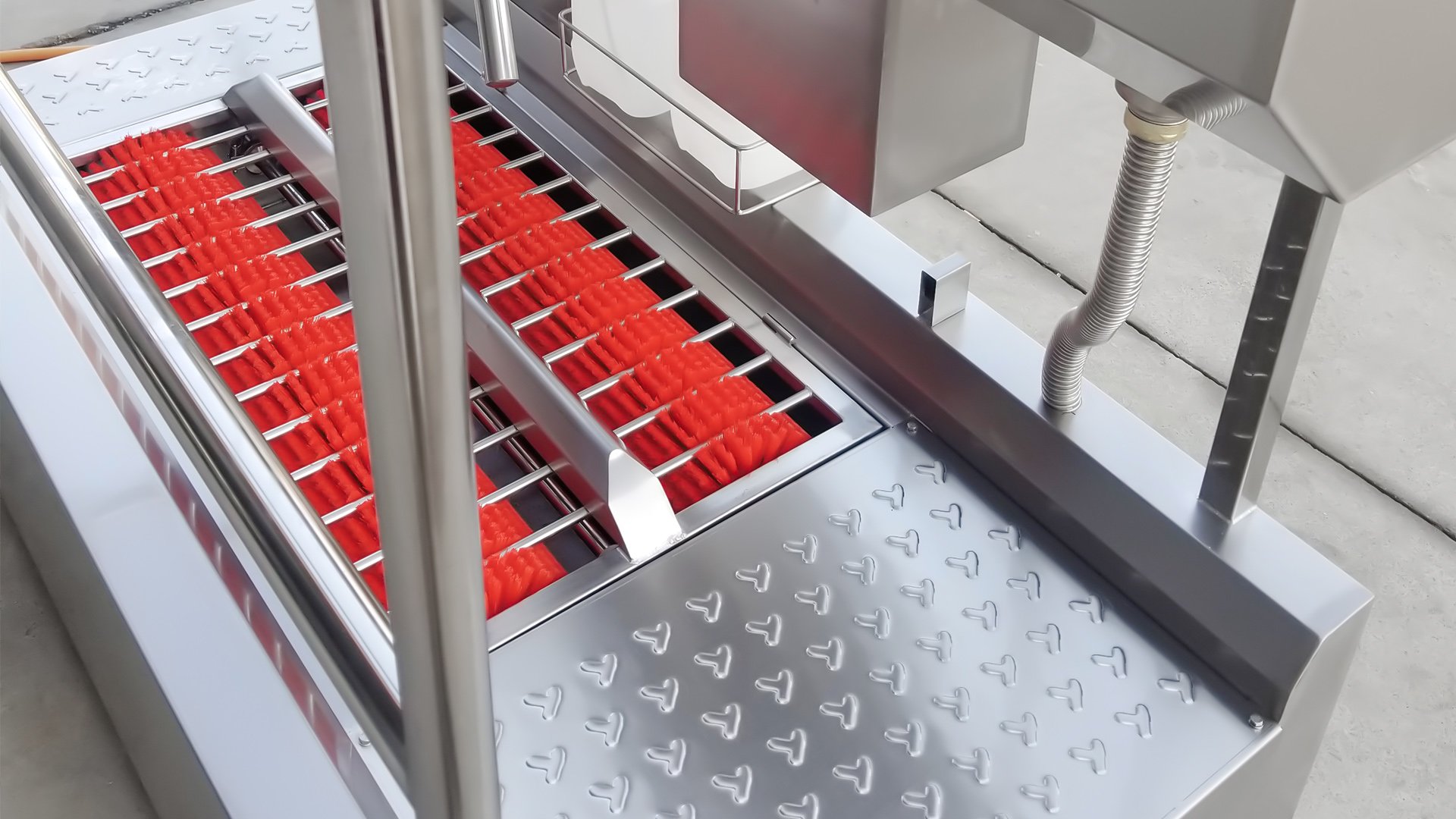

1. Boot Sole Washing: Photoelectric sensors detect approach; horizontal brushes clean and disinfect boot soles.

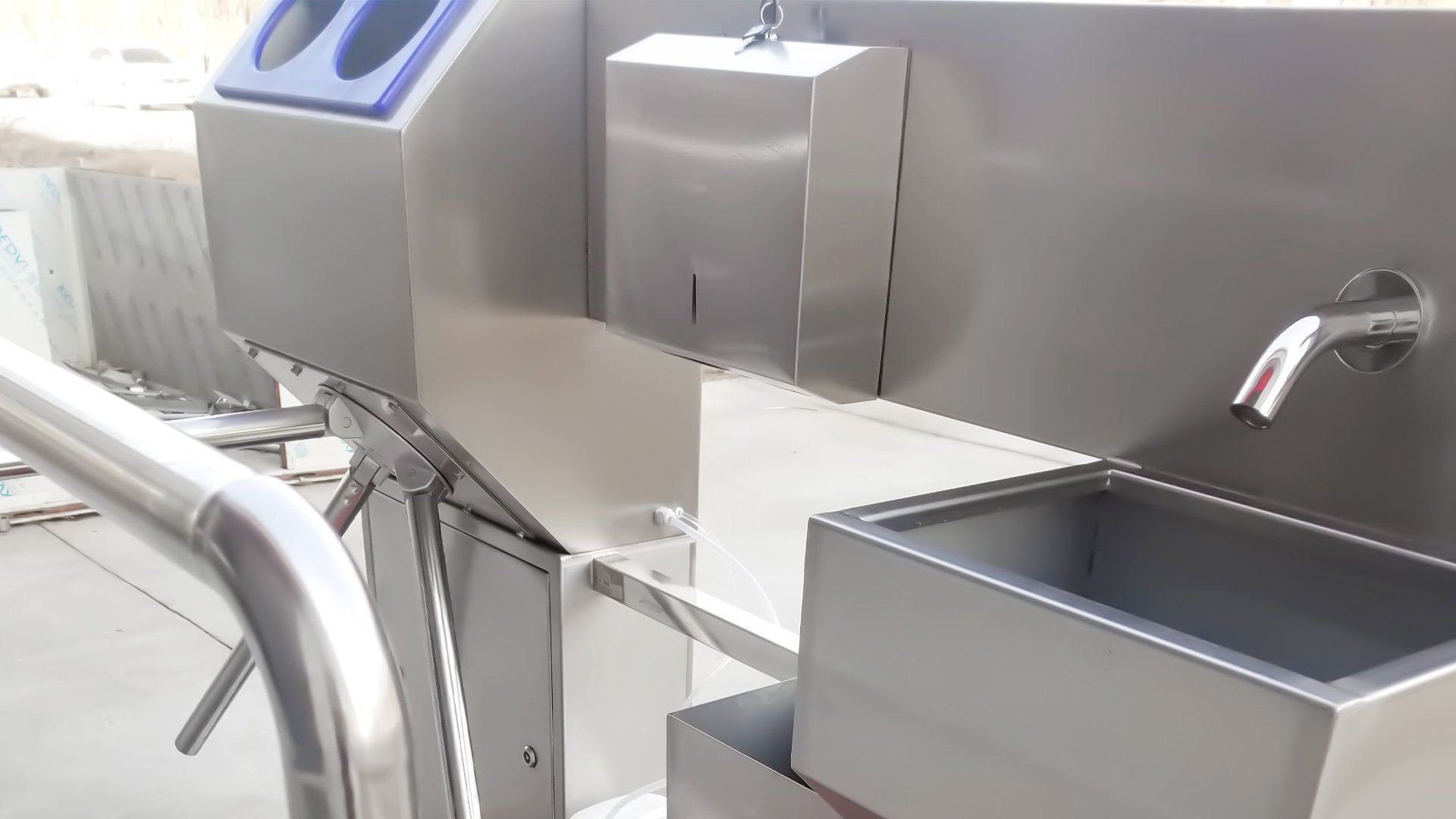

2. Auto Wash Basin Activation: The auto wash basin dispenses water with the integrated soap dispenser for hand washing.

3. Hand Sanitizing: Hand sanitizer is dispensed automatically to complete hand disinfection.

4. Tissue Access & Access Control: Workers can access the integrated tissue/waste box before the access gate unlocks to allow passage.

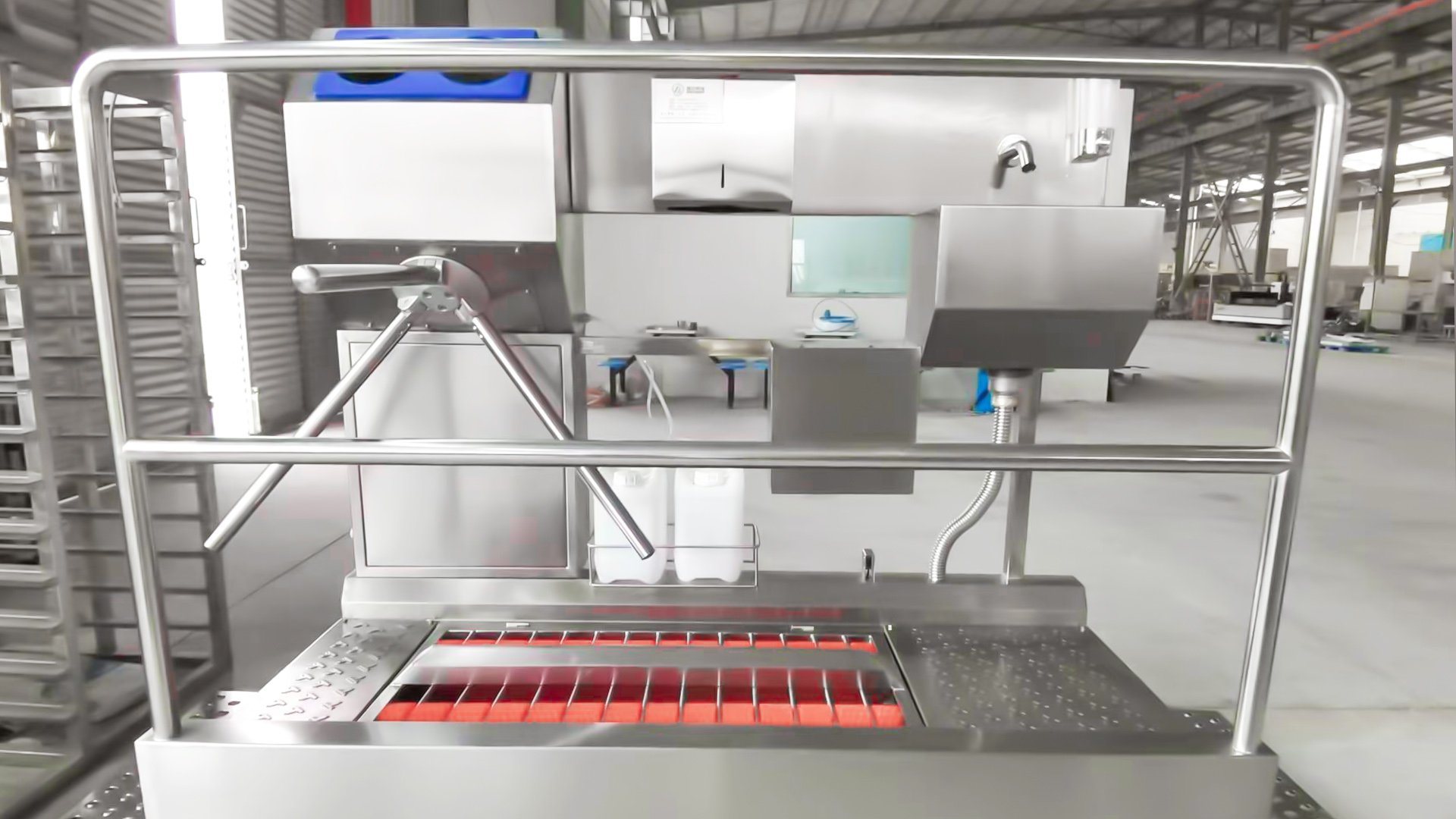

Application Scenarios & Industry Cases

The HE-HCDS08 is suited for facilities requiring comprehensive hand hygiene amenities with sole-focused boot cleaning:

• Beverage & Bottling Plants: Establishes hygiene checkpoints separating production from external environments.

• Central Kitchens & Catering: Enforces food safety compliance with accessible hand hygiene amenities.

• Bakeries & Frozen Food Facilities: Provides a formal hygiene entrance system for food safety-critical environments.

• Pet Food Processing: Supports hygiene compliance at production area entry points.

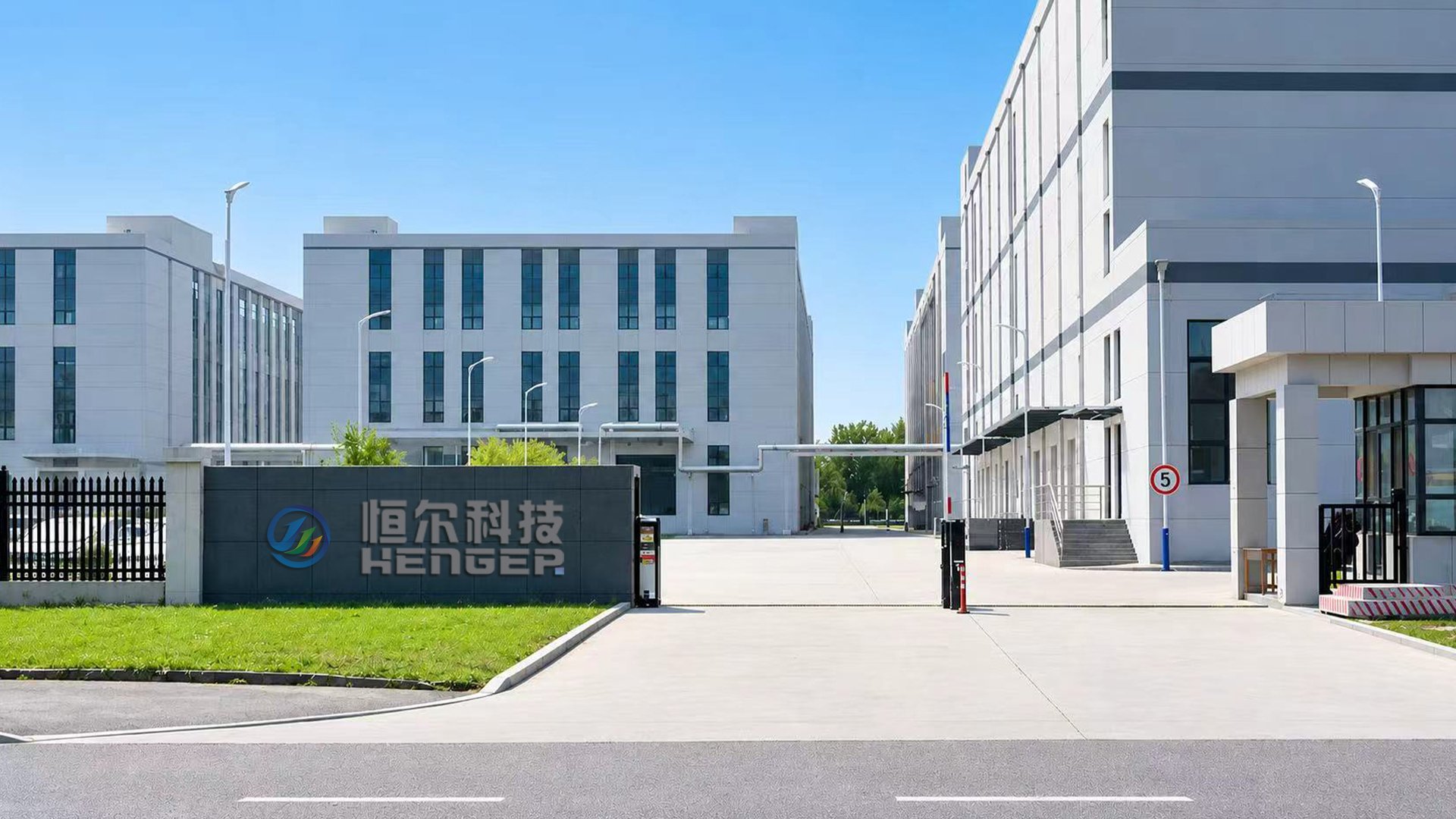

Qualification & Factory Strength

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. specializes in clean industrial and hygiene equipment for food processing facilities. The HE-HCDS08 offers a streamlined, sole-focused configuration within our integrated wash basin range.

Our production facility applies precision stainless steel fabrication with fully welded, GMP-compliant surfaces. Henger Technology hygiene equipment is manufactured under CE and ISO 9001 certified processes.

Frequently Asked Questions (FAQ)

Q: What hand hygiene amenities does the HE-HCDS08 include?

A: An auto wash basin, soap dispenser, tissue and waste box, and hand sanitizer are all integrated into the unit.

Q: Does the HE-HCDS08 clean boot sides as well as soles?

A: No. The HE-HCDS08 focuses on boot sole washing and disinfection only. For full side and sole cleaning with the same hand amenities, the HE-HCDS07 is available.

Q: What is the power consumption of the HE-HCDS08?

A: The unit operates at 0.9 kW, offering energy-efficient operation.

Q: What are the dimensions of the HE-HCDS08?

A: The unit measures 2450 x 1160 x 1600 mm (L x W x H).

Q: Can the voltage be customized?

A: Yes. Standard voltage is 380V / 50Hz; configurations for 220V single-phase, 60Hz, or other regional standards are available upon request.

Q: How do I maintain the equipment?

A: Daily rinsing of brush rollers and basins, weekly inspection of the disinfectant tank and metering pump, and monthly checks of electrical connections and sensors are recommended.

Contact Henger Technology for Your Custom Solution

For a detailed technical proposal or a factory-direct quotation, please contact our engineering team. We offer free layout drawings and customized configuration plans based on your facility's specific throughput and space requirements.
