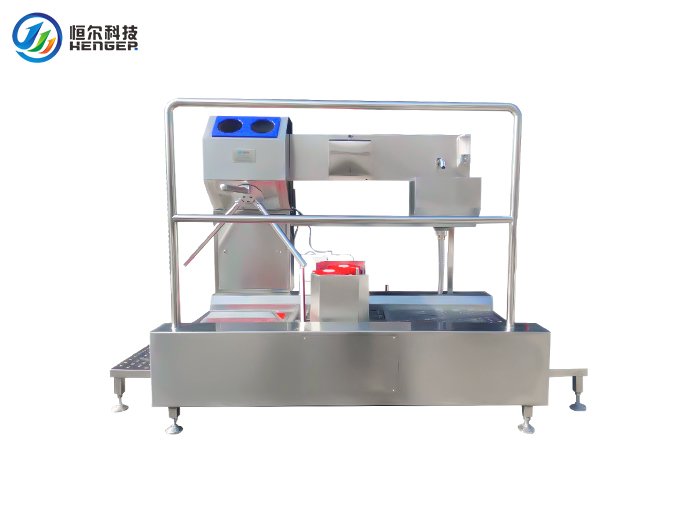

HE-HCDS07 Auto Wash Basin Station with Boot Side & Sole Cleaning

Product Introduction

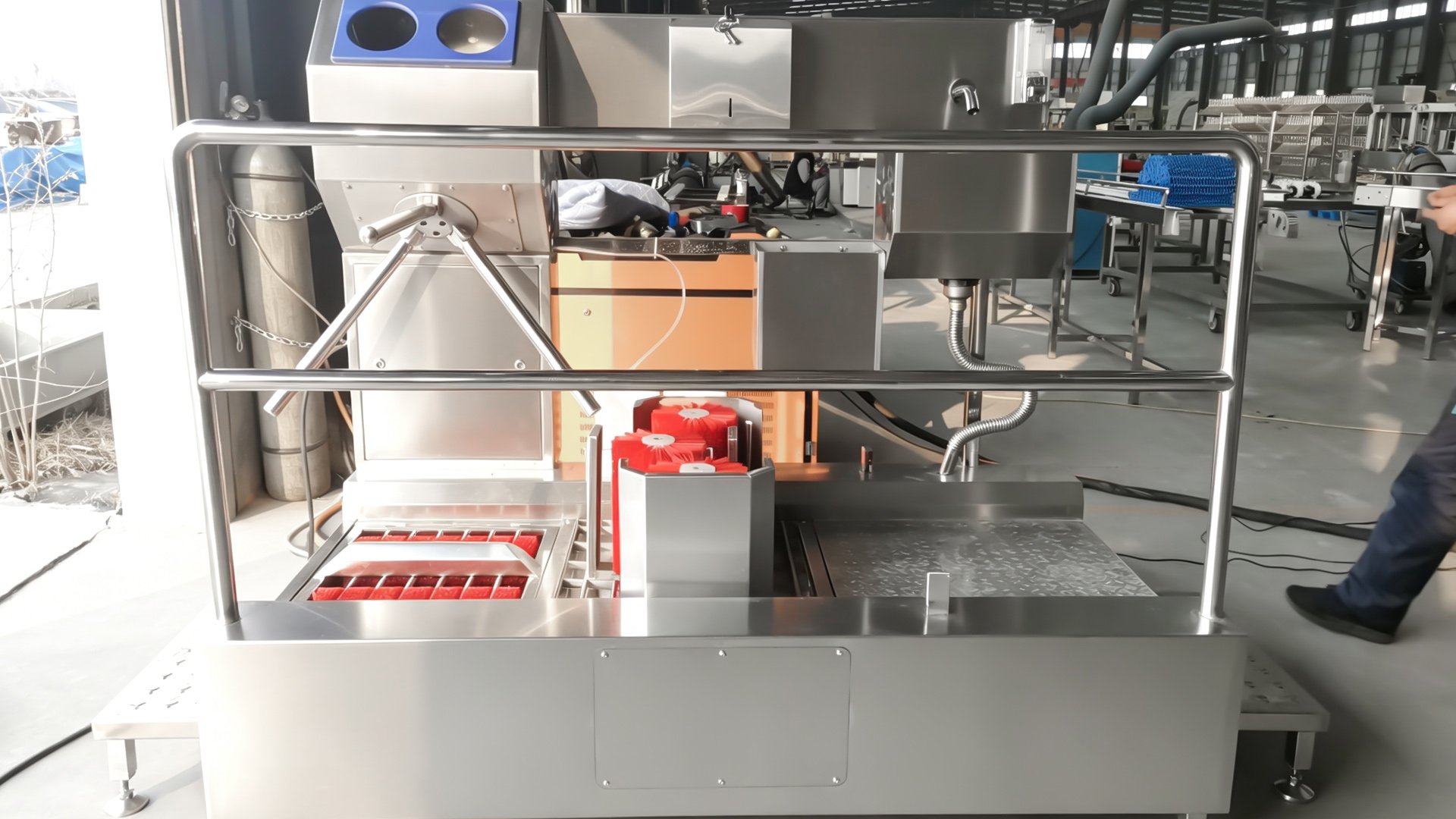

The Henger Technology HE-HCDS07 is an integrated hygiene station featuring an auto wash basin, soap dispenser, tissue and waste box, hand sanitizer, and boot side and sole washing and disinfection, completed by an access control gate.

Operating at a low 0.9 kW and built from 304 stainless steel with 2.0 mm plate thickness, the HE-HCDS07 provides comprehensive hand hygiene amenities alongside full boot cleaning coverage in an energy-efficient configuration.

Core Advantages

• Comprehensive Hand Hygiene Amenities: Combines an auto wash basin, soap dispenser, tissue/waste box, and hand sanitizer in one unit.

• Full Boot Coverage: Cleans and disinfects both boot sides and soles, unlike sole-only models in the same category.

• Low Power Consumption: The 0.9 kW rating offers energy-efficient operation for facilities prioritizing lower utility costs.

• 304 Stainless Steel Construction: 2.0 mm plate thickness supports durability in humid, food-grade environments.

• Photoelectric Sensor Automation: Fully automatic operation activates on approach and stops after passage.

• Access Control Integration: The gate unlocks only after the complete hygiene cycle is finished.

• Convenient Waste Management: The integrated tissue and waste box supports tidy, self-contained hand hygiene practices.

Technical Specifications

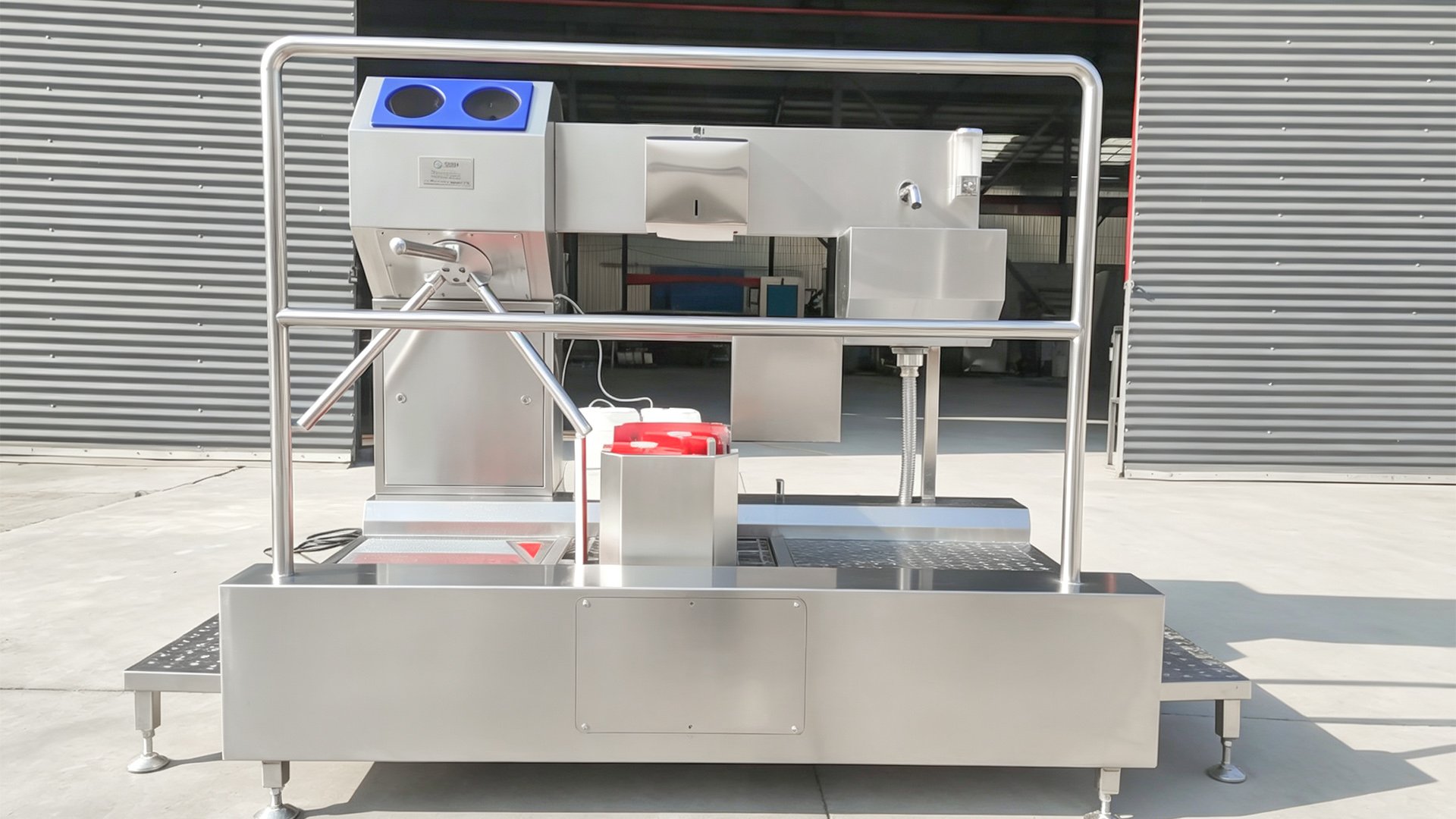

Equipment Detail Display

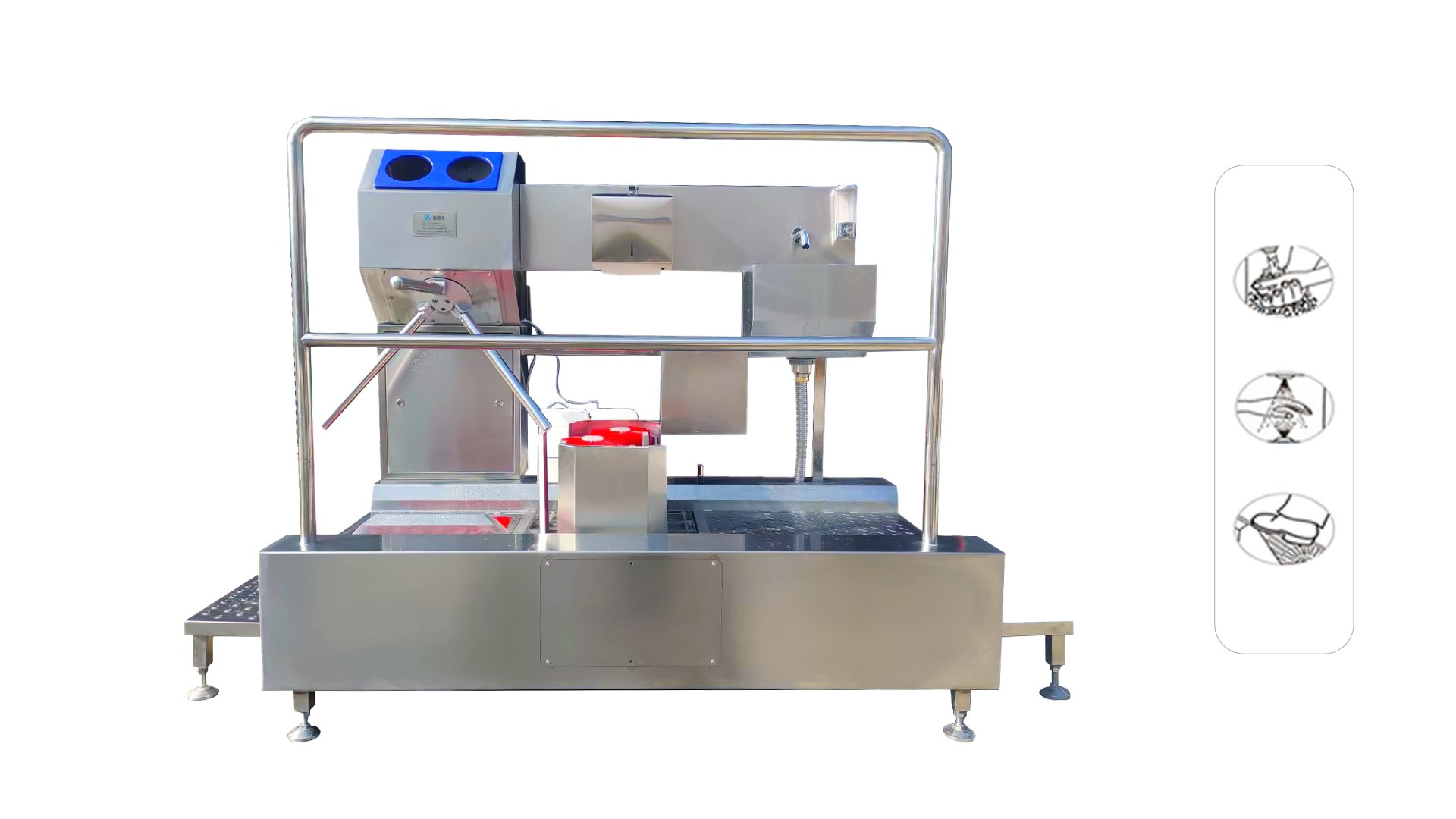

Working Principle

The HE-HCDS07 operates through a sensor-activated hygiene cycle combining hand amenities with full boot cleaning:

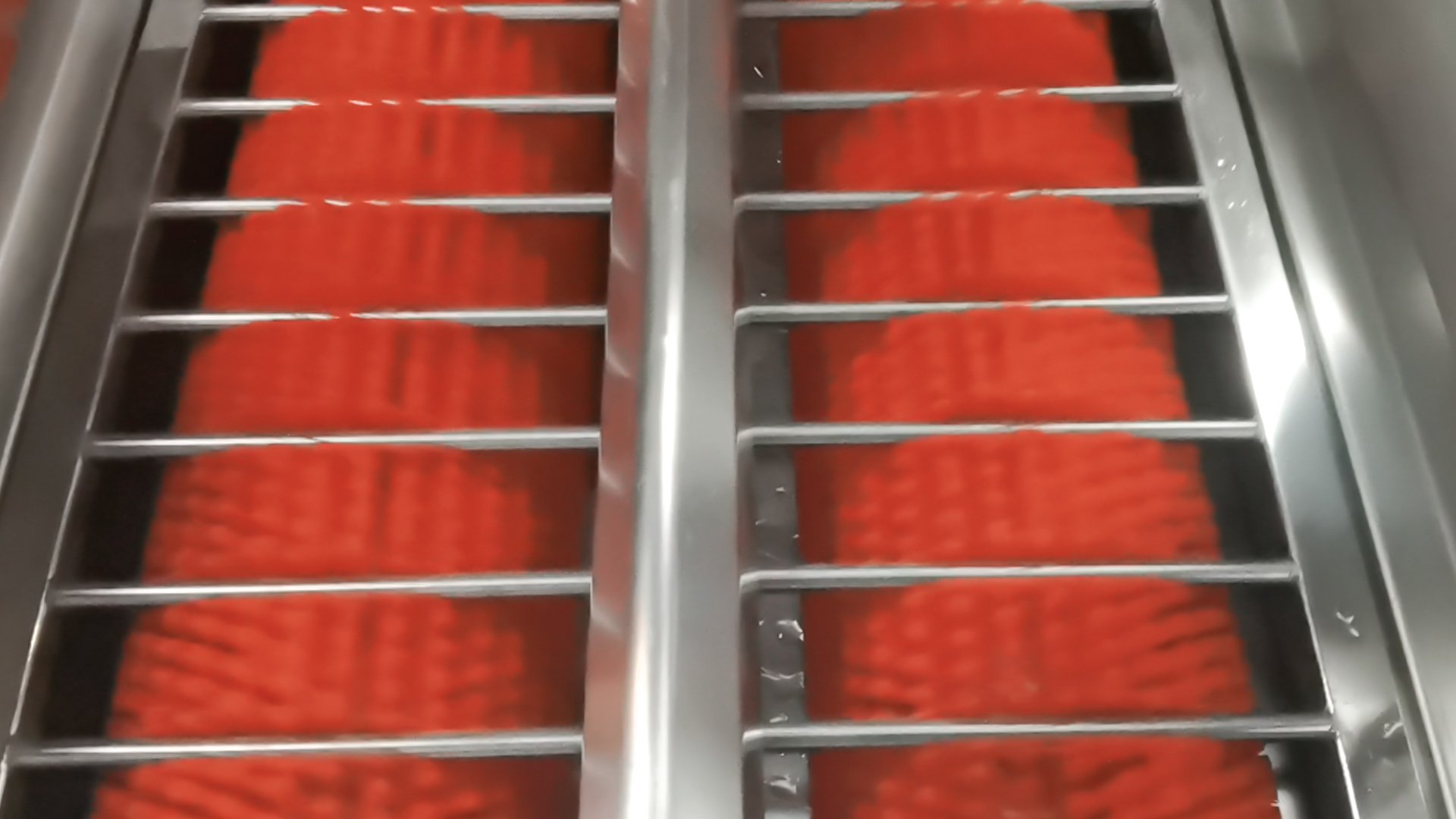

1. Boot Side & Sole Washing: Photoelectric sensors detect approach; brushes clean and disinfect both boot sides and soles.

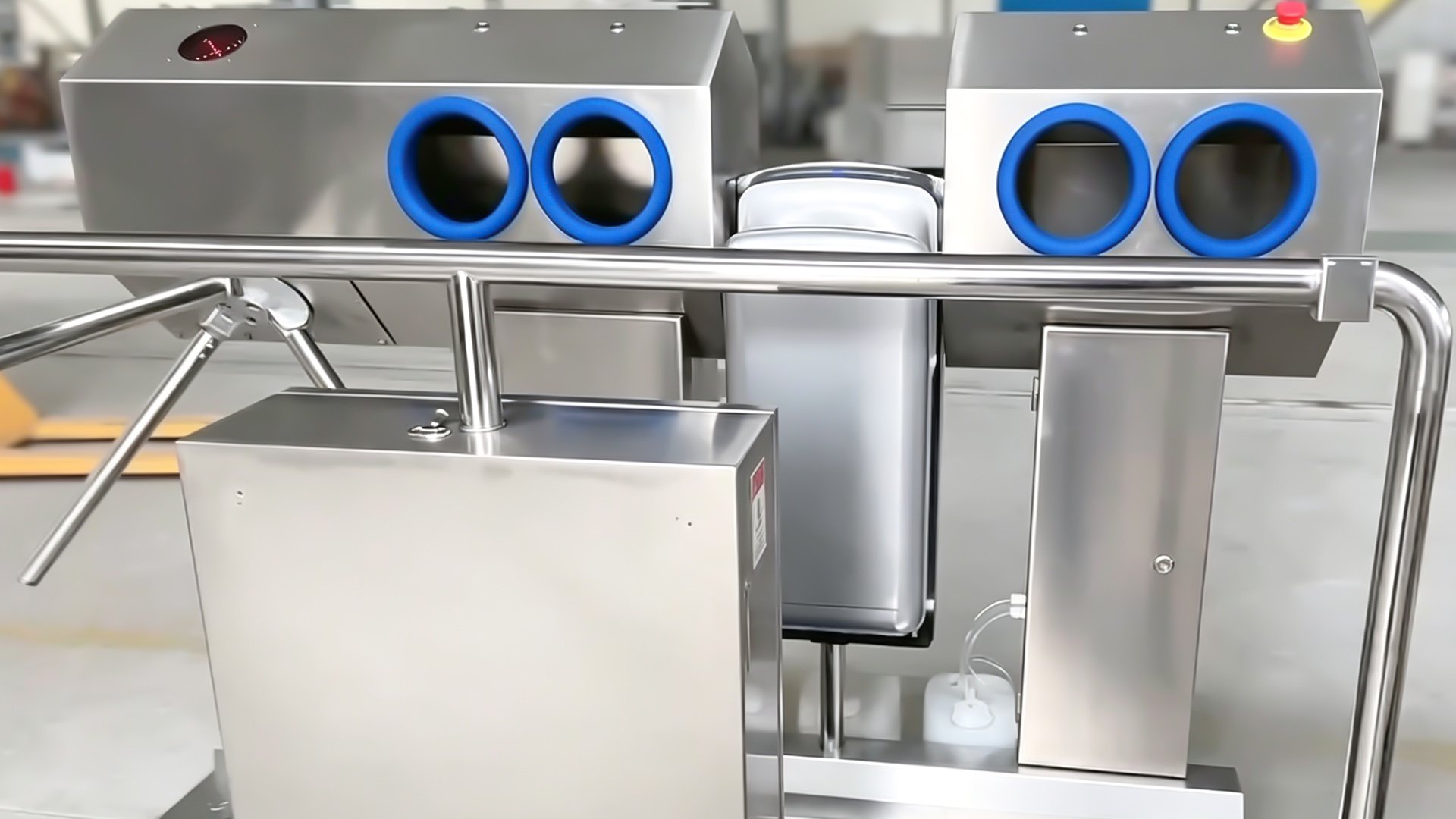

2. Auto Wash Basin Activation: The auto wash basin dispenses water with the integrated soap dispenser for hand washing.

3. Hand Sanitizing: Hand sanitizer is dispensed automatically to complete hand disinfection.

4. Tissue Access & Access Control: Workers can access the integrated tissue/waste box before the access gate unlocks to allow passage.

Application Scenarios & Industry Cases

The HE-HCDS07 is suited for facilities requiring comprehensive hand hygiene amenities with full boot cleaning:

• Central Kitchens & Catering: Enforces food safety compliance with accessible hand hygiene amenities at preparation zone entrances.

• Dairy Processing: Controls microbial transfer between raw milk reception and packaging areas.

• Bakeries, Frozen Food, Pet Food: Provides a formal hygiene entrance system for food safety-critical environments.

• Meat Processing Facilities: Supports full boot and hand hygiene compliance between processing zones.

Qualification & Factory Strength

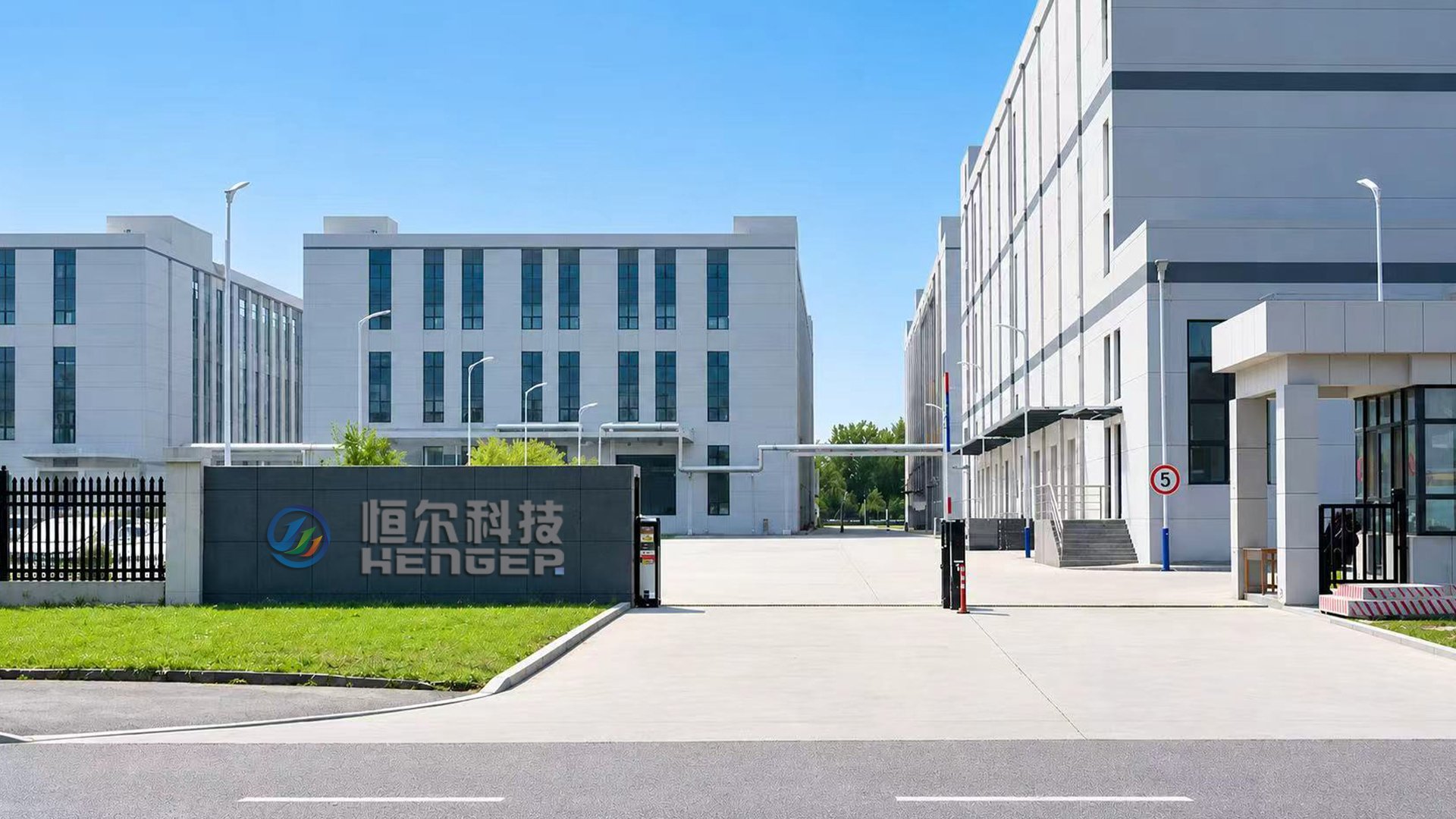

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. specializes in clean industrial and hygiene equipment for food processing facilities. The HE-HCDS07 provides comprehensive hand hygiene amenities within an energy-efficient configuration.

Our production facility applies precision stainless steel fabrication with fully welded, GMP-compliant surfaces. Henger Technology hygiene equipment is manufactured under CE and ISO 9001 certified processes.

Frequently Asked Questions (FAQ)

Q: What hand hygiene amenities does the HE-HCDS07 include?

A: An auto wash basin, soap dispenser, tissue and waste box, and hand sanitizer are all integrated into the unit.

Q: Does the HE-HCDS07 clean both boot sides and soles?

A: Yes. Unlike sole-only models in the same category, the HE-HCDS07 provides full boot side and sole washing and disinfection.

Q: What is the power consumption of the HE-HCDS07?

A: The unit operates at a low 0.9 kW, offering energy-efficient operation.

Q: What are the dimensions of the HE-HCDS07?

A: The unit measures 2450 x 1160 x 1600 mm (L x W x H).

Q: Can the voltage be customized?

A: Yes. Standard voltage is 380V / 50Hz; configurations for 220V single-phase, 60Hz, or other regional standards are available upon request.

Q: How do I choose between the HE-HCDS07 and HE-HCDS08?

A: The HE-HCDS07 provides full boot side and sole cleaning, while the HE-HCDS08 focuses on sole-only boot cleaning with the same hand hygiene amenities. Selection depends on your facility's boot sanitation requirements.

Contact Henger Technology for Your Custom Solution

For a detailed technical proposal or a factory-direct quotation, please contact our engineering team. We offer free layout drawings and customized configuration plans based on your facility's specific throughput and space requirements.
