HE-HCDS02 Standard All-in-One Hygiene Station with Double-Cycle Boot Cleaning

Product Introduction

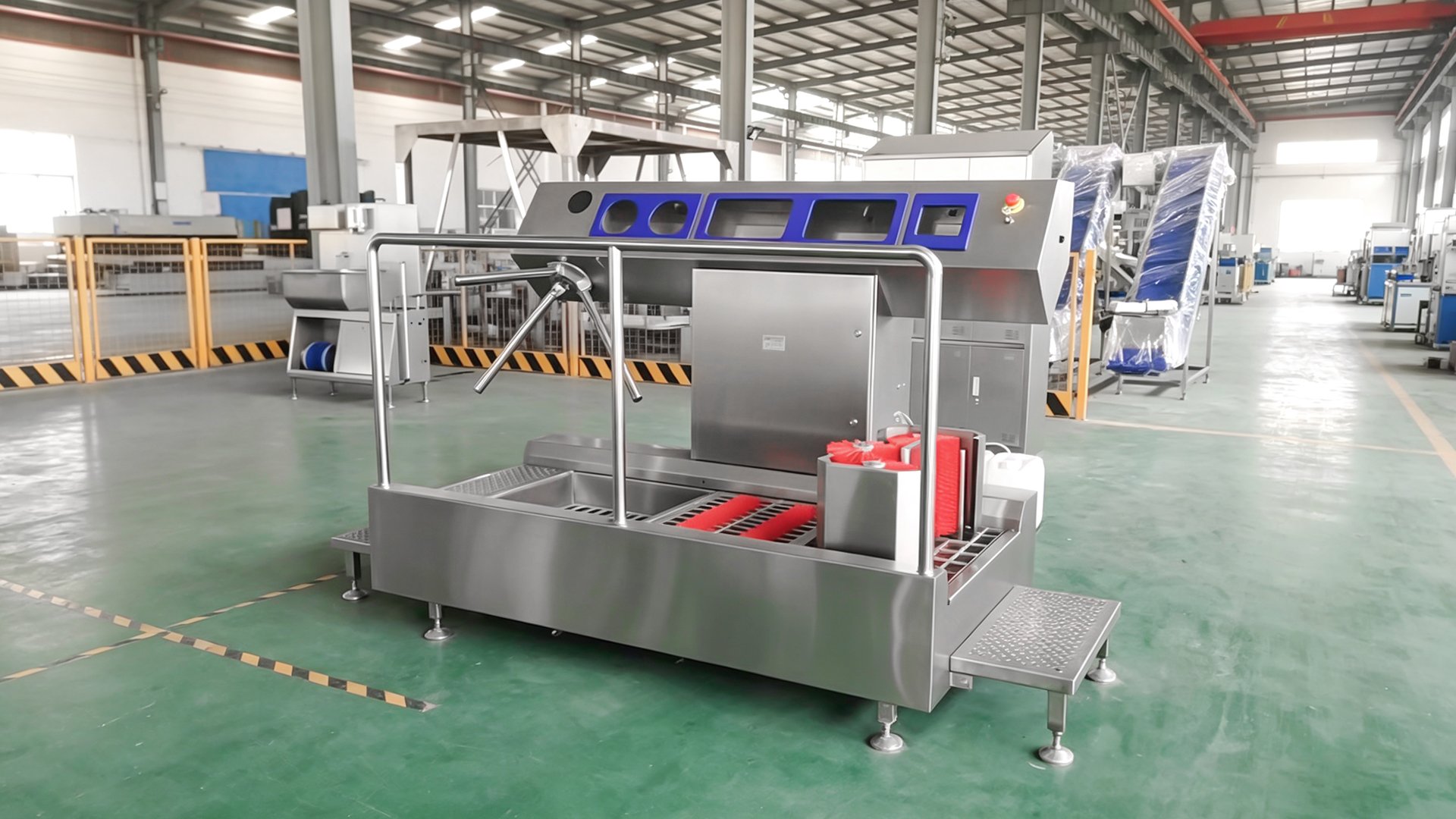

The Henger Technology HE-HCDS02 is a standard all-in-one hygiene station designed for facilities requiring reliable personnel sanitation with an enhanced double-cycle boot cleaning process. The unit integrates hand sanitizing, hand washing, hand disinfection, hand drying, and a two-pass boot side and sole washing and disinfection sequence, completed by an access control gate.

Built from 304 stainless steel with 2.0 mm plate thickness, the HE-HCDS02 operates at 2.1 kW, offering a compact and energy-efficient footprint suitable for standard entry points at food processing facilities.

Core Advantages

• Double-Cycle Boot Cleaning: A two-pass boot side and sole washing and disinfection sequence supports more thorough residue removal than a single-pass cycle.

• Integrated Hand Sanitizing: An additional hand sanitizer step is included alongside standard hand washing, disinfection, and drying functions.

• Compact Footprint: At 2450 x 1160 x 1600 mm, the unit fits standard entry corridors while delivering full hygiene functionality.

• Energy-Efficient Operation: The 2.1 kW power configuration balances functional coverage with efficient energy consumption.

• 304 Stainless Steel Build: 2.0 mm plate thickness supports durability in humid, food-grade processing environments.

• Photoelectric Sensor Automation: Fully automatic operation activates on approach and stops after passage, reducing contact contamination risk.

• Access Control Enforcement: The gate unlocks only after the complete hygiene cycle, supporting consistent compliance across shifts.

Technical Specifications

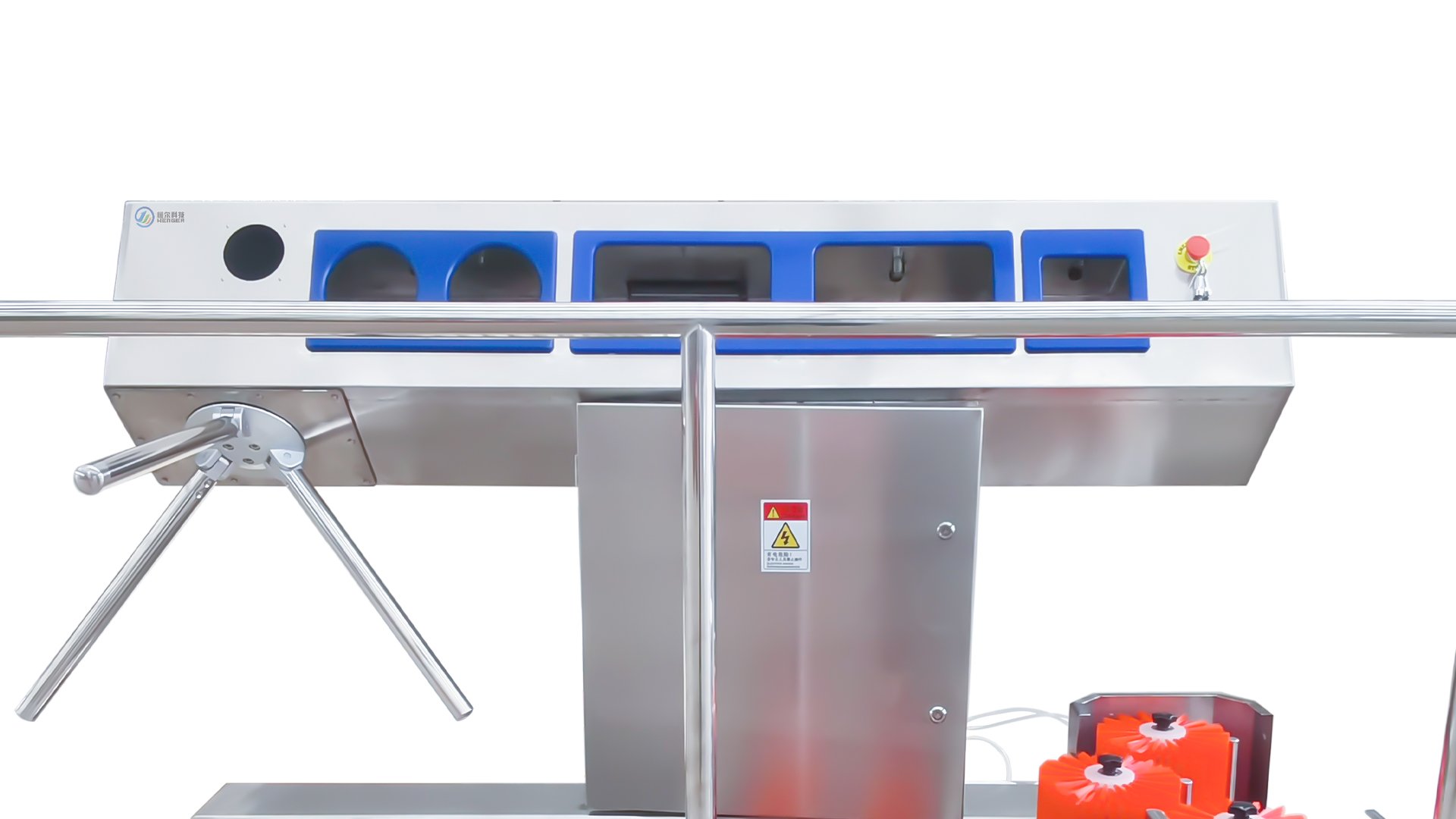

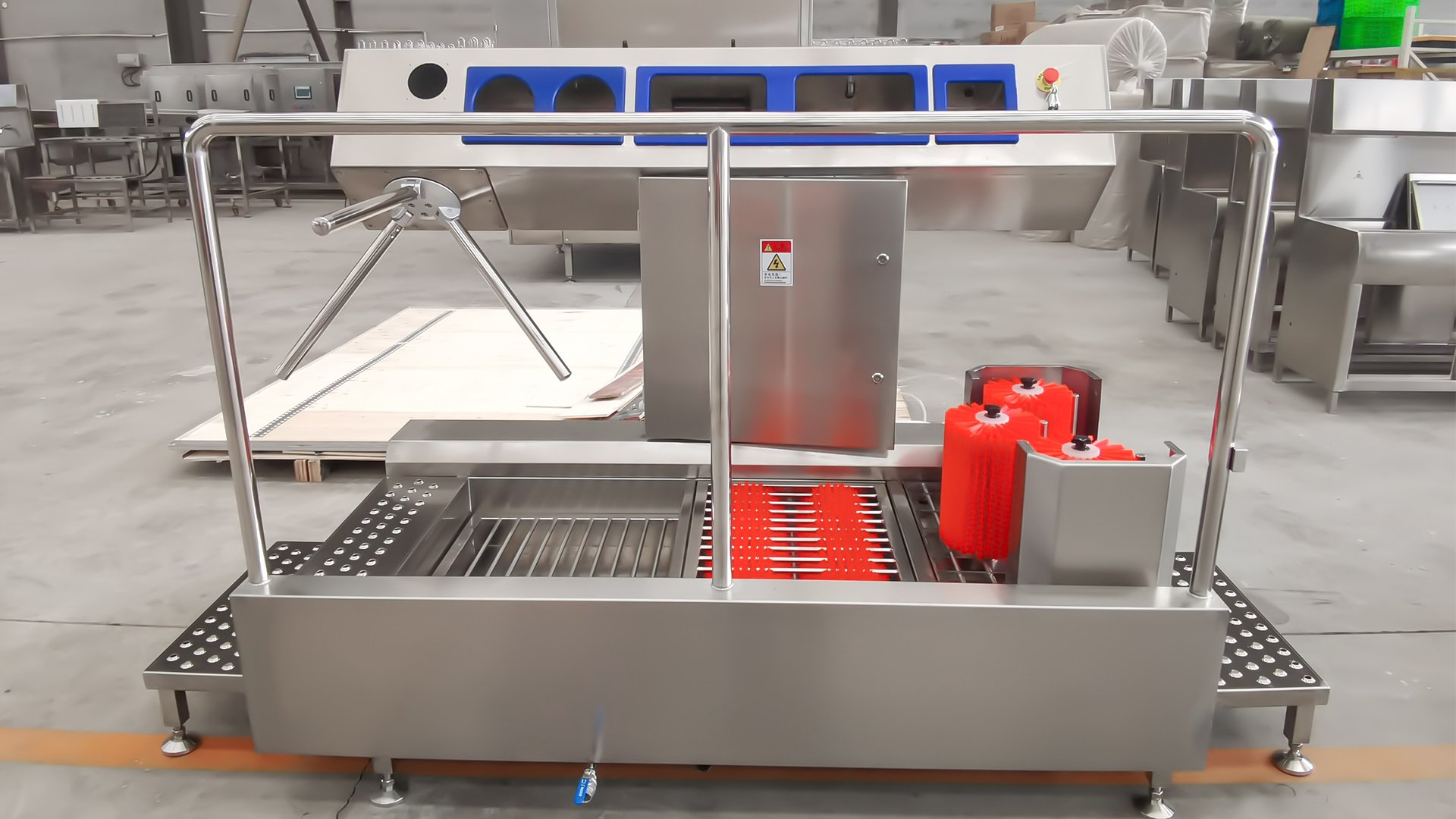

Equipment Detail Display

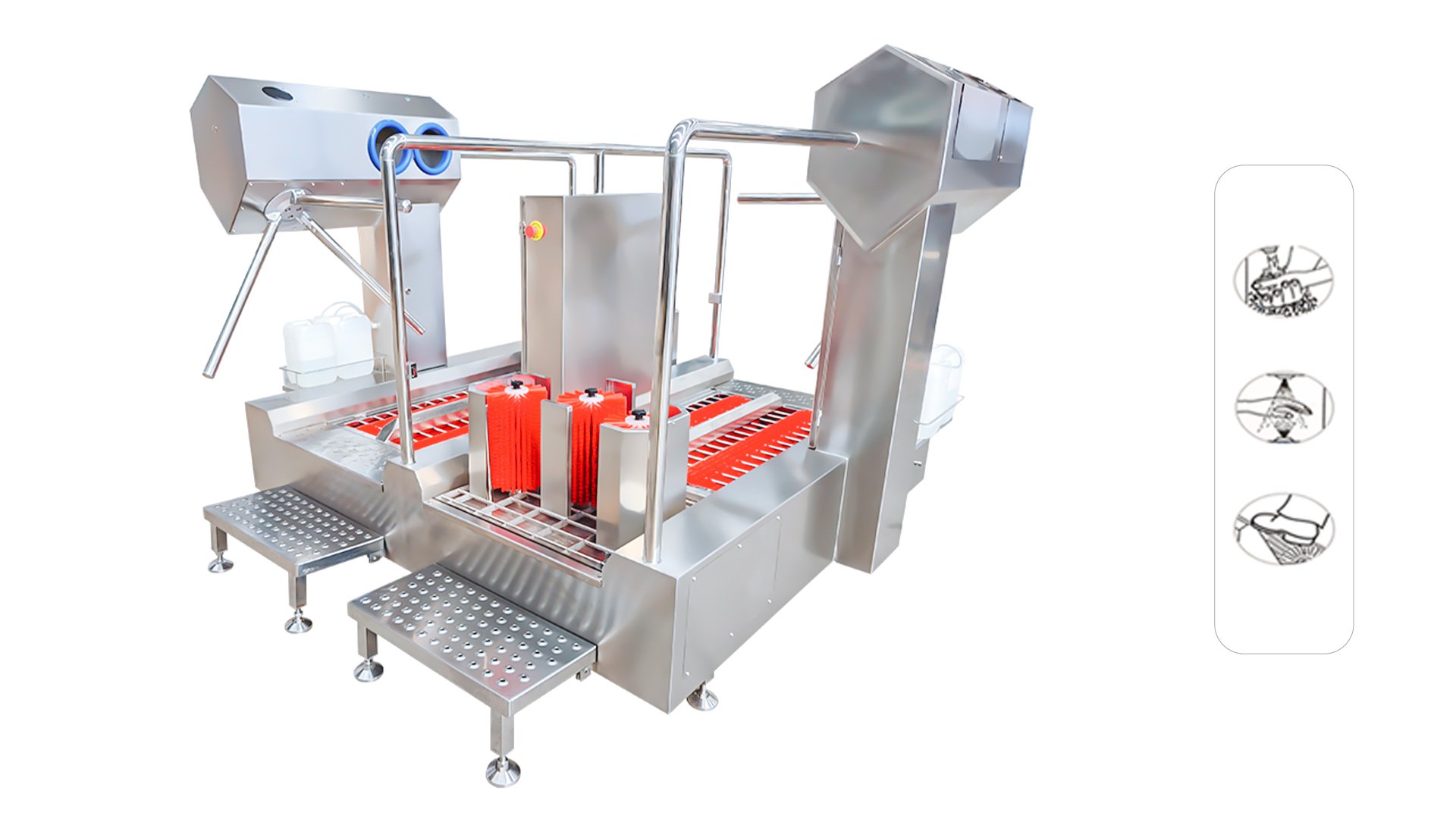

Working Principle

The HE-HCDS02 operates through a sensor-activated hygiene cycle with an enhanced double-cycle boot cleaning stage:

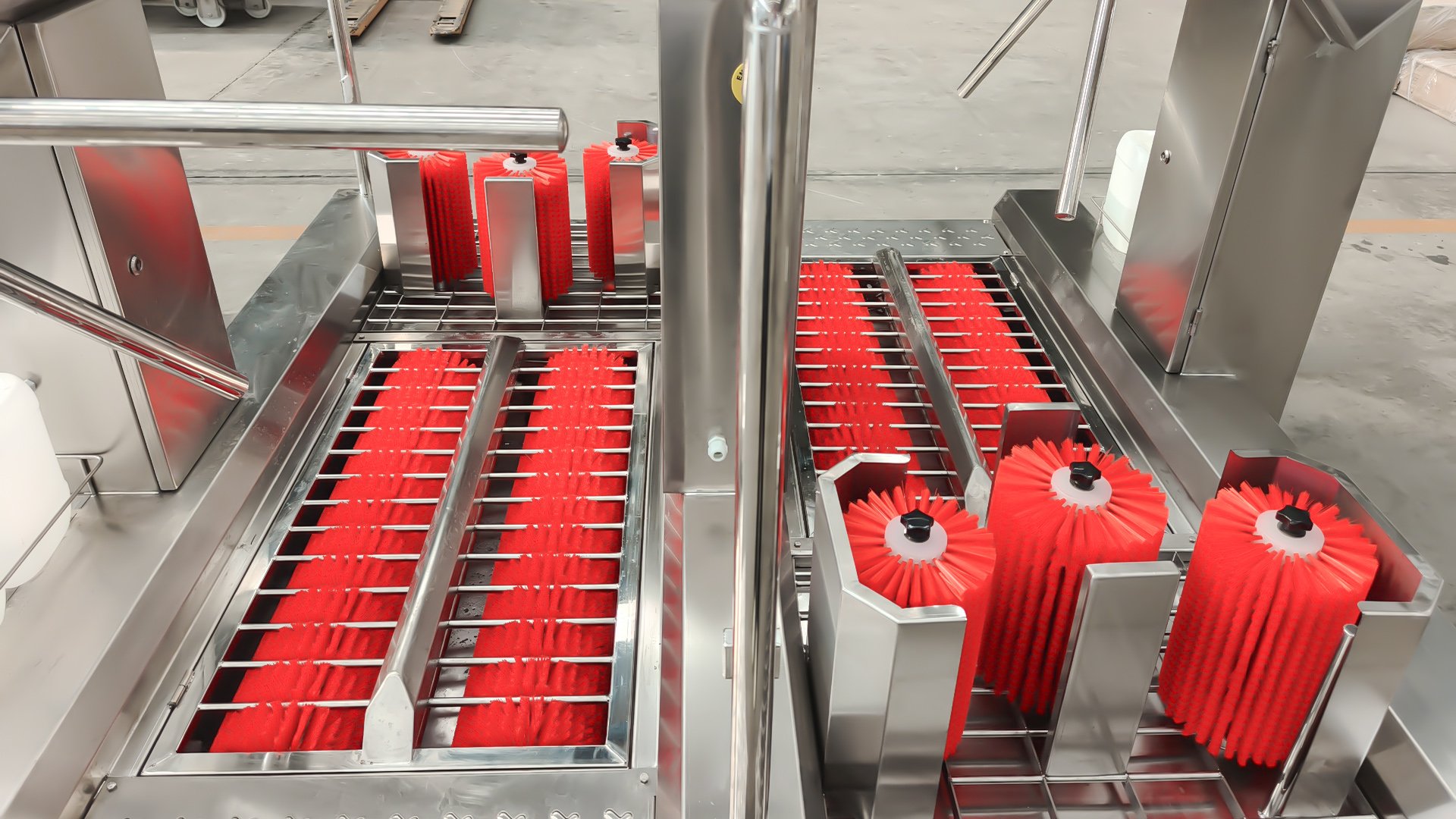

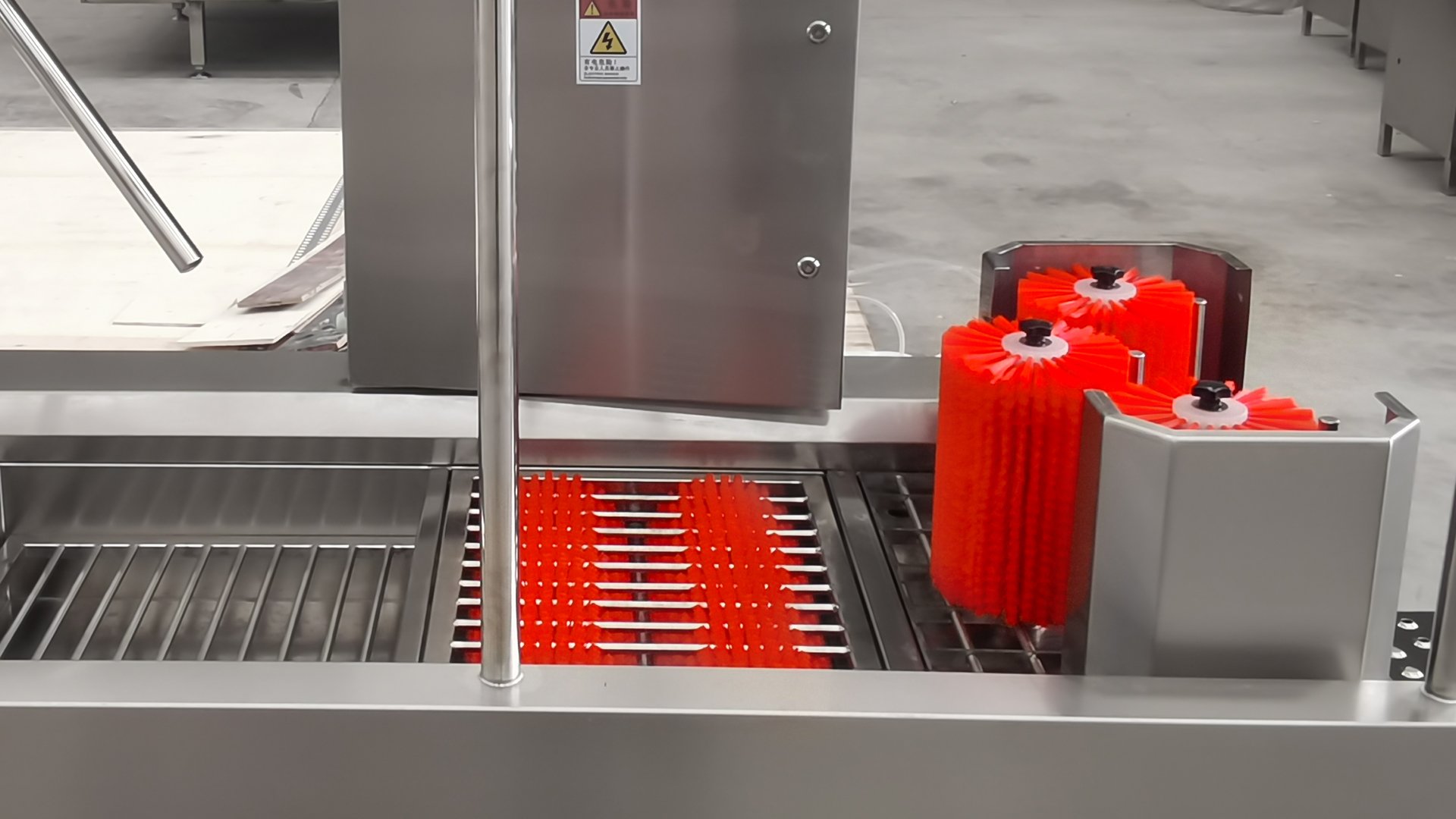

1. Boot Side Washing & Disinfection (First Pass): Photoelectric sensors detect approach; vertical rotating brushes perform the first cleaning pass on both boot sides.

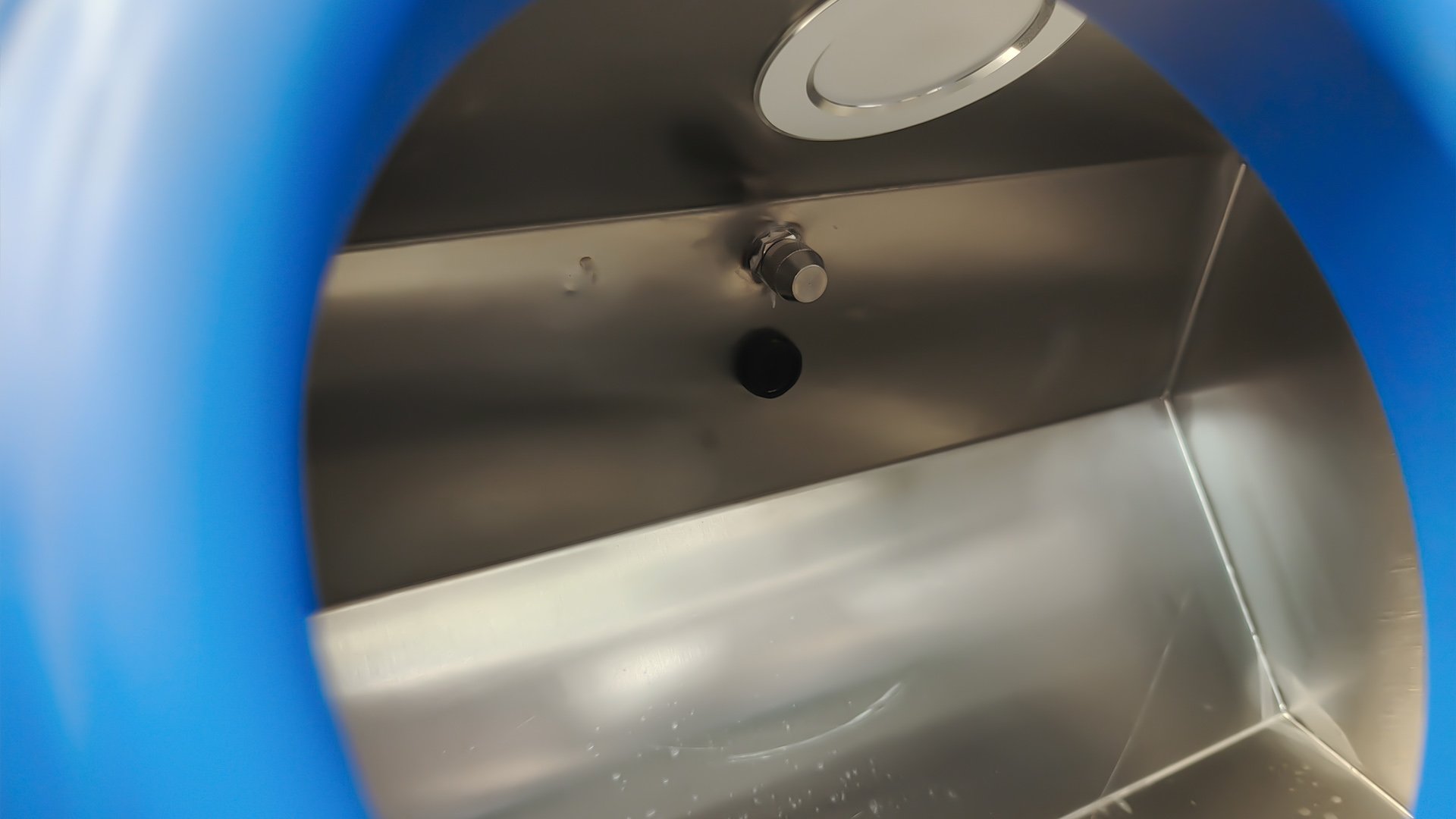

2. Hand Sanitizing & Washing: The integrated hand wash basin auto-dispenses sanitizer and water for hand cleaning.

3. Boot Sole Cleaning (Second Pass): Horizontal brushes scrub and disinfect boot soles in a second cleaning pass while hand drying operates simultaneously.

4. Final Hand Disinfection & Access Control: A second hand disinfection step completes the cycle, and the access gate unlocks to allow passage.

Application Scenarios & Industry Cases

The HE-HCDS02 is suited for standard entry points requiring enhanced boot hygiene compliance:

• Seafood Processing: Robust performance in wet, high-humidity, salt-spray environments where thorough boot cleaning is critical.

• Meat Processing Facilities: Supports cross-contamination control between processing zones with double-pass boot sanitation.

• Central Kitchens & Catering: Enforces food safety compliance at preparation zone entrances.

• Bakeries & Frozen Food Facilities: Provides a formal hygiene entrance system for food safety-critical production environments.

Qualification & Factory Strength

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. specializes in clean industrial and hygiene equipment for food processing facilities. The HE-HCDS02 reflects our standard all-in-one configuration, balancing complete hygiene functionality with compact, energy-efficient operation.

Our production facility applies precision stainless steel fabrication with fully welded, GMP-compliant surfaces. Henger Technology hygiene equipment is manufactured under CE and ISO 9001 certified processes.

Frequently Asked Questions (FAQ)

Q: What does the double-cycle boot cleaning feature provide?

A: The HE-HCDS02 performs a two-pass boot side and sole washing and disinfection sequence, supporting more thorough residue removal than a single-pass cleaning cycle.

Q: What is the power consumption of the HE-HCDS02?

A: The unit operates at 2.1 kW, offering an energy-efficient configuration suitable for standard entry points.

Q: What functions does the HE-HCDS02 include?

A: Hand sanitizer, hand washing, hand disinfection, hand drying, double-cycle boot side and sole washing and disinfection, and access control.

Q: What are the dimensions of the HE-HCDS02?

A: The unit measures 2450 x 1160 x 1600 mm (L x W x H), suitable for standard entry corridors.

Q: Can the voltage be customized?

A: Yes. Standard voltage is 380V / 50Hz; configurations for 220V single-phase, 60Hz, or other regional standards are available upon request.

Q: How do I choose between the HE-HCDS02 and other Category B models?

A: The HE-HCDS02 is distinguished by its double-cycle boot cleaning process and integrated hand sanitizer step. For single-cycle boot cleaning with a larger footprint, models such as HE-HCDS03 through HE-HCDS05 may be considered.

Contact Henger Technology for Your Custom Solution

For a detailed technical proposal or a factory-direct quotation, please contact our engineering team. We offer free layout drawings and customized configuration plans based on your facility's specific throughput and space requirements.
