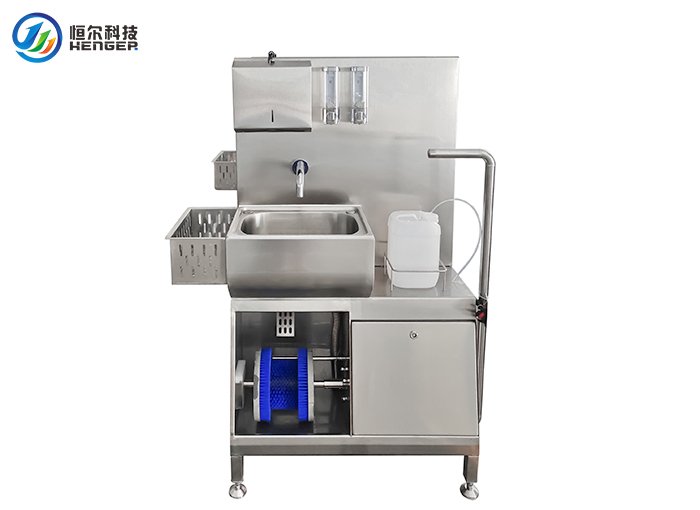

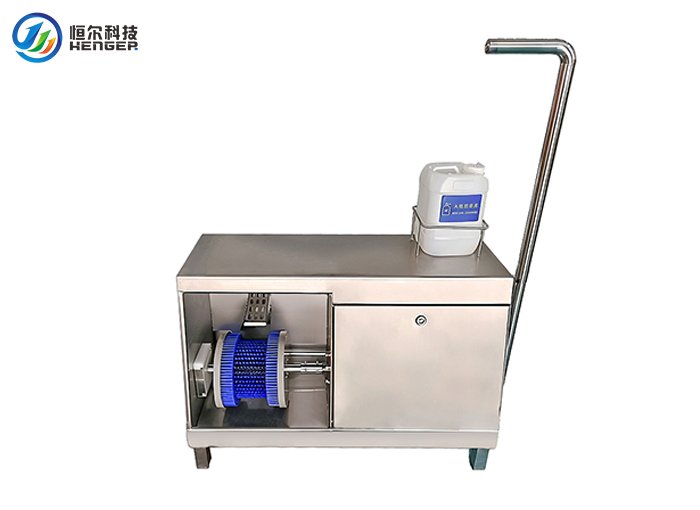

HE-HCDS16 Small-Footprint Boot Sole Washing Unit

Product Introduction

The Henger Technology HE-HCDS16 is a small-footprint, dedicated boot sole washing and disinfection unit, providing a minimal hygiene solution for facilities with tight spatial constraints or supplementary sanitation needs.

Operating at 0.4 kW and built from 304 stainless steel, the HE-HCDS16 offers the smallest footprint in the standalone boot washing sub-category, at just 910 x 400 x 1200 mm.

Core Advantages

• Minimal Footprint: At 910 x 400 x 1200 mm, suitable for the tightest spatial constraints.

• Dedicated Sole Cleaning: Focuses exclusively on boot sole washing and disinfection.

• Very Low Power Consumption: The 0.4 kW rating offers highly energy-efficient operation.

• 304 Stainless Steel Construction: Durable build suited to humid, food-grade environments.

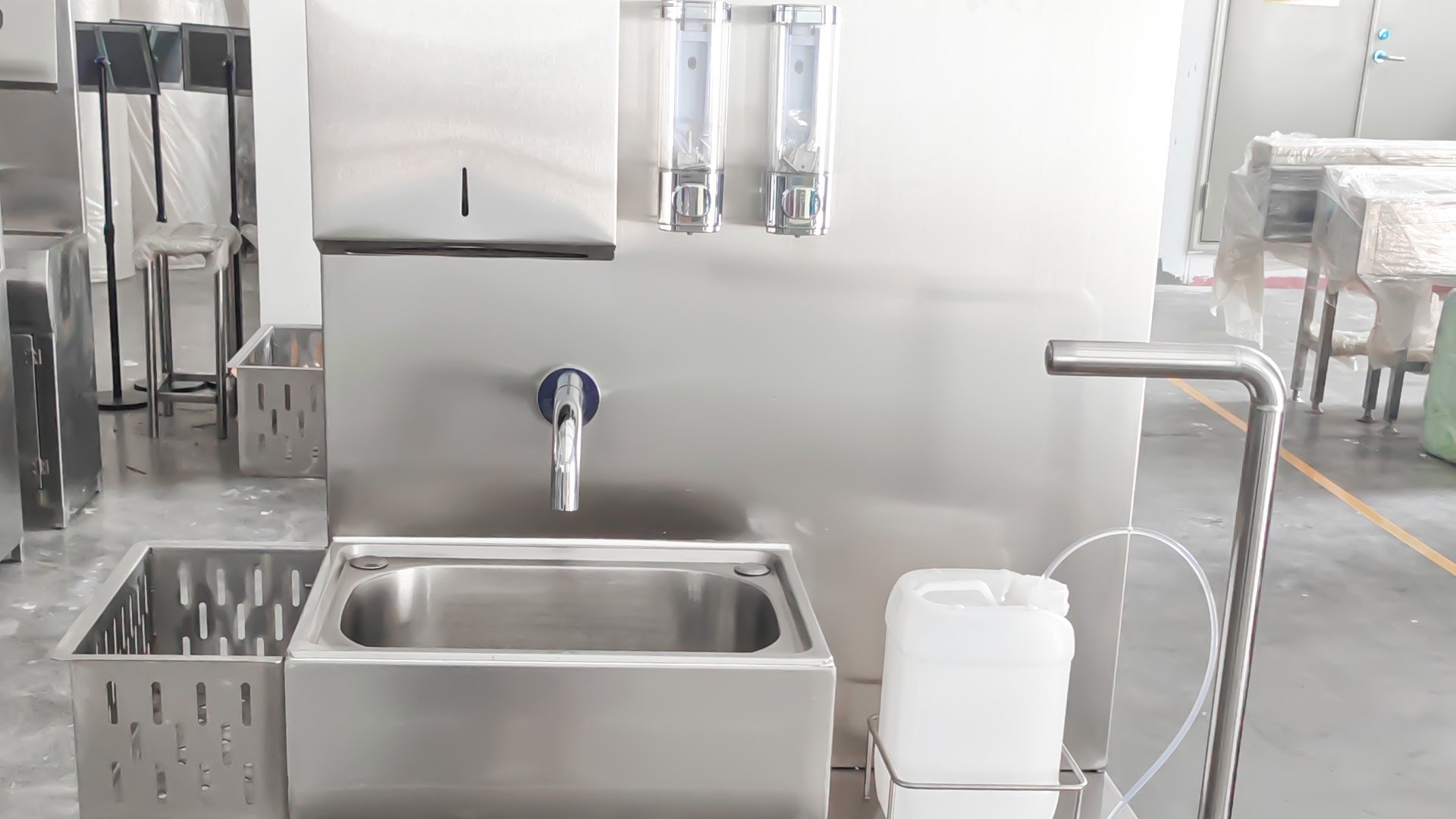

• Photoelectric Sensor Automation: Fully automatic operation activates on approach and stops after passage.

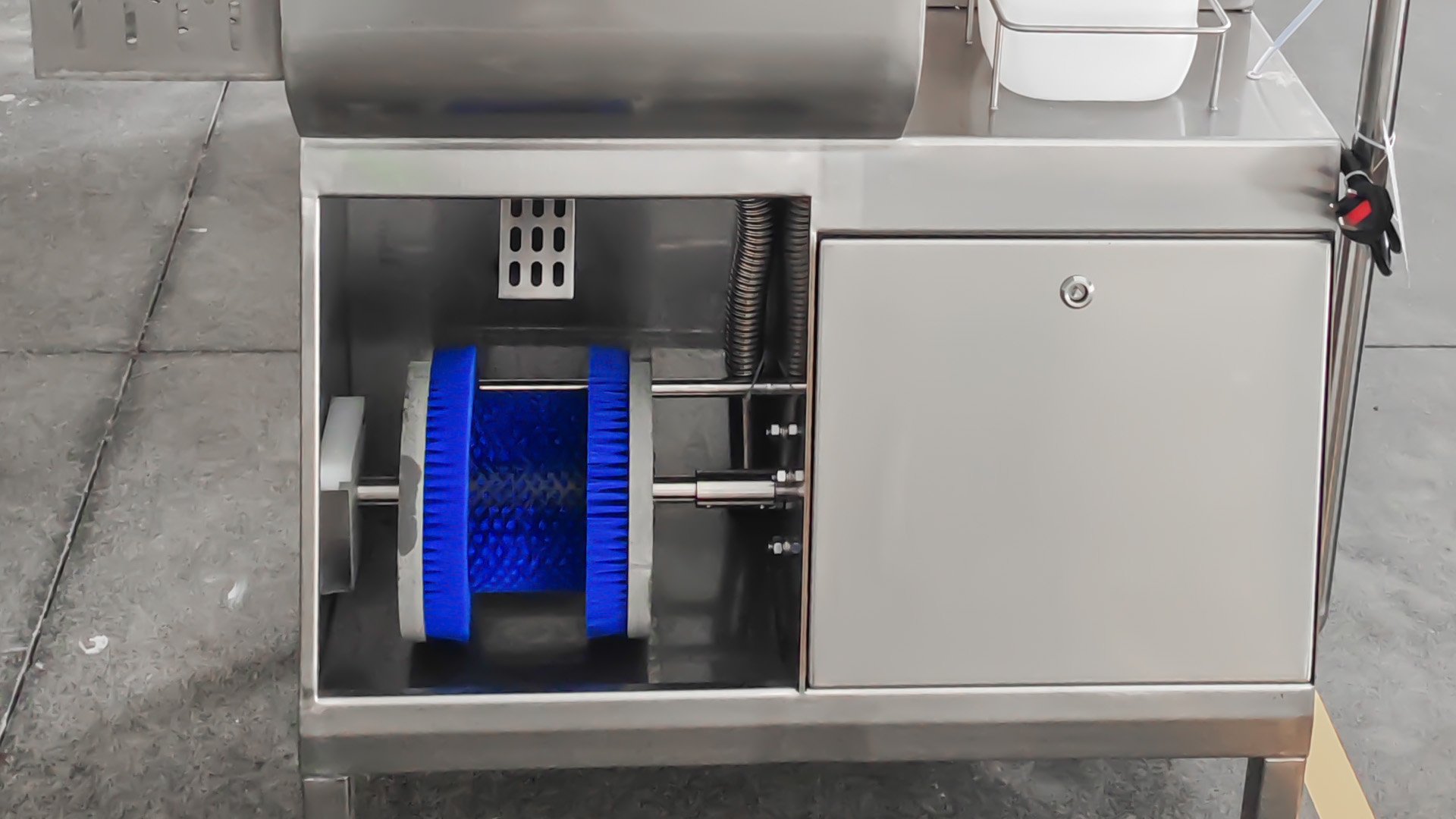

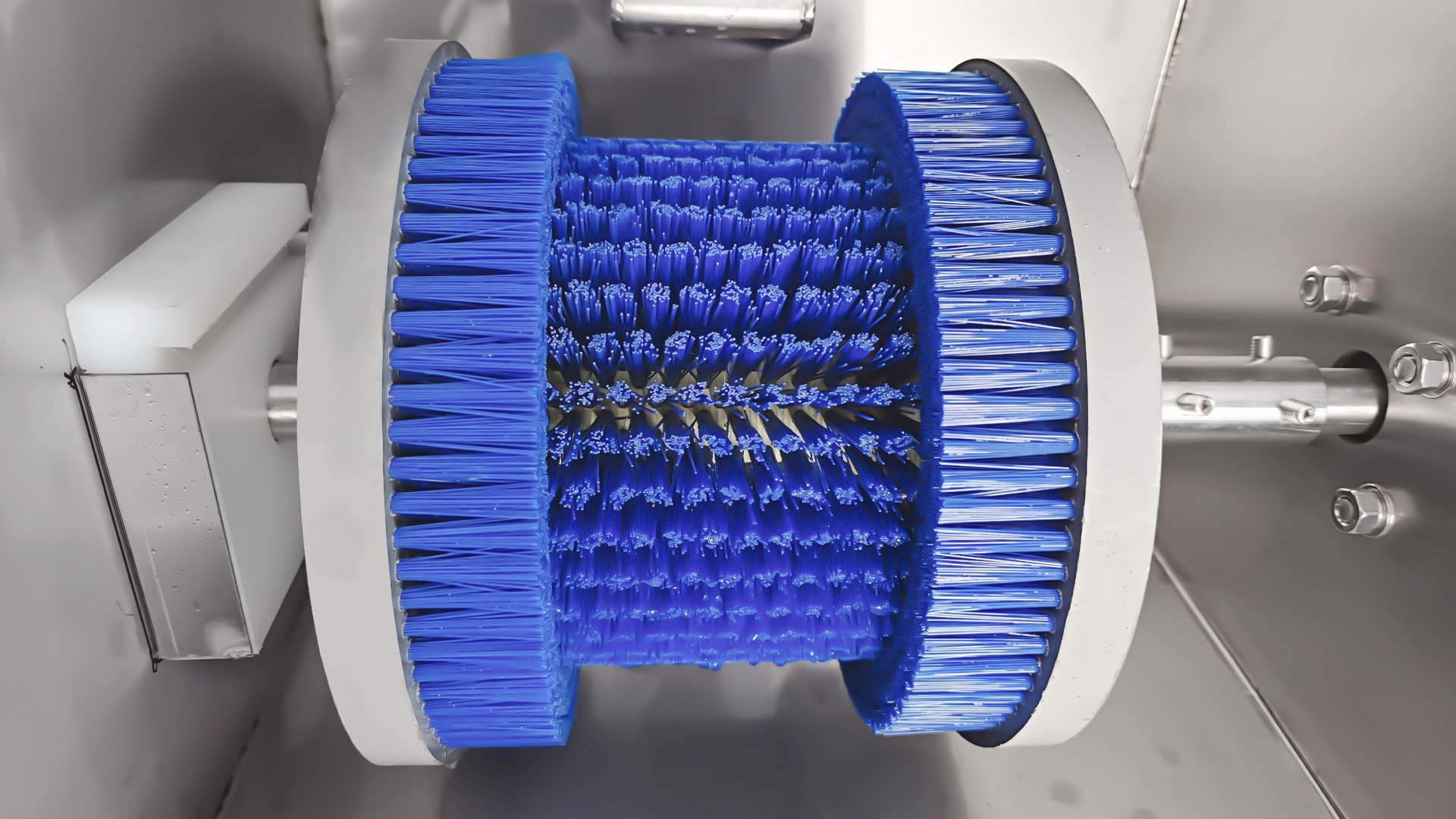

• Quick-Release Brush Design: High-strength food-grade polyester fiber brushes can be replaced without tools.

Technical Specifications

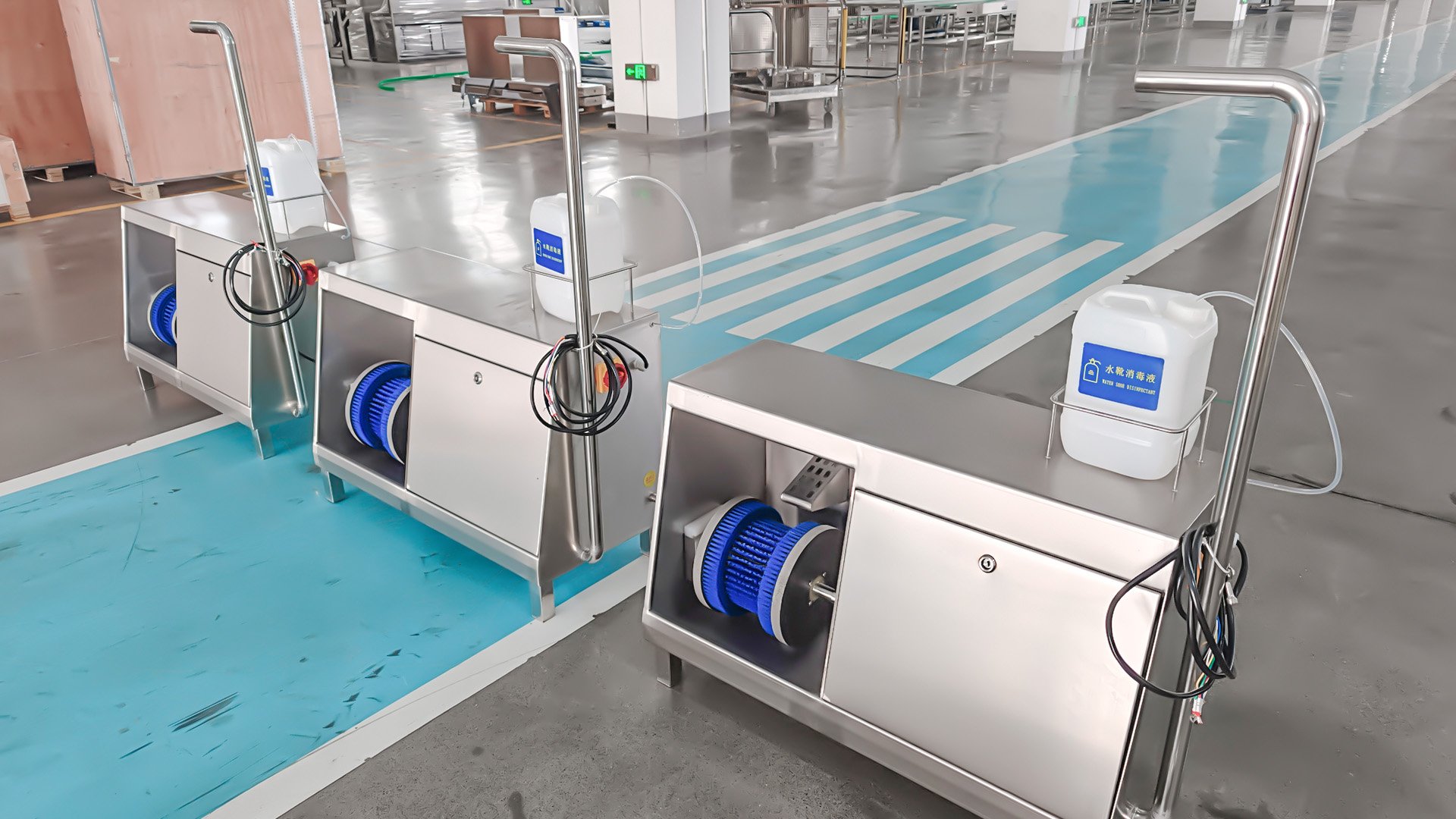

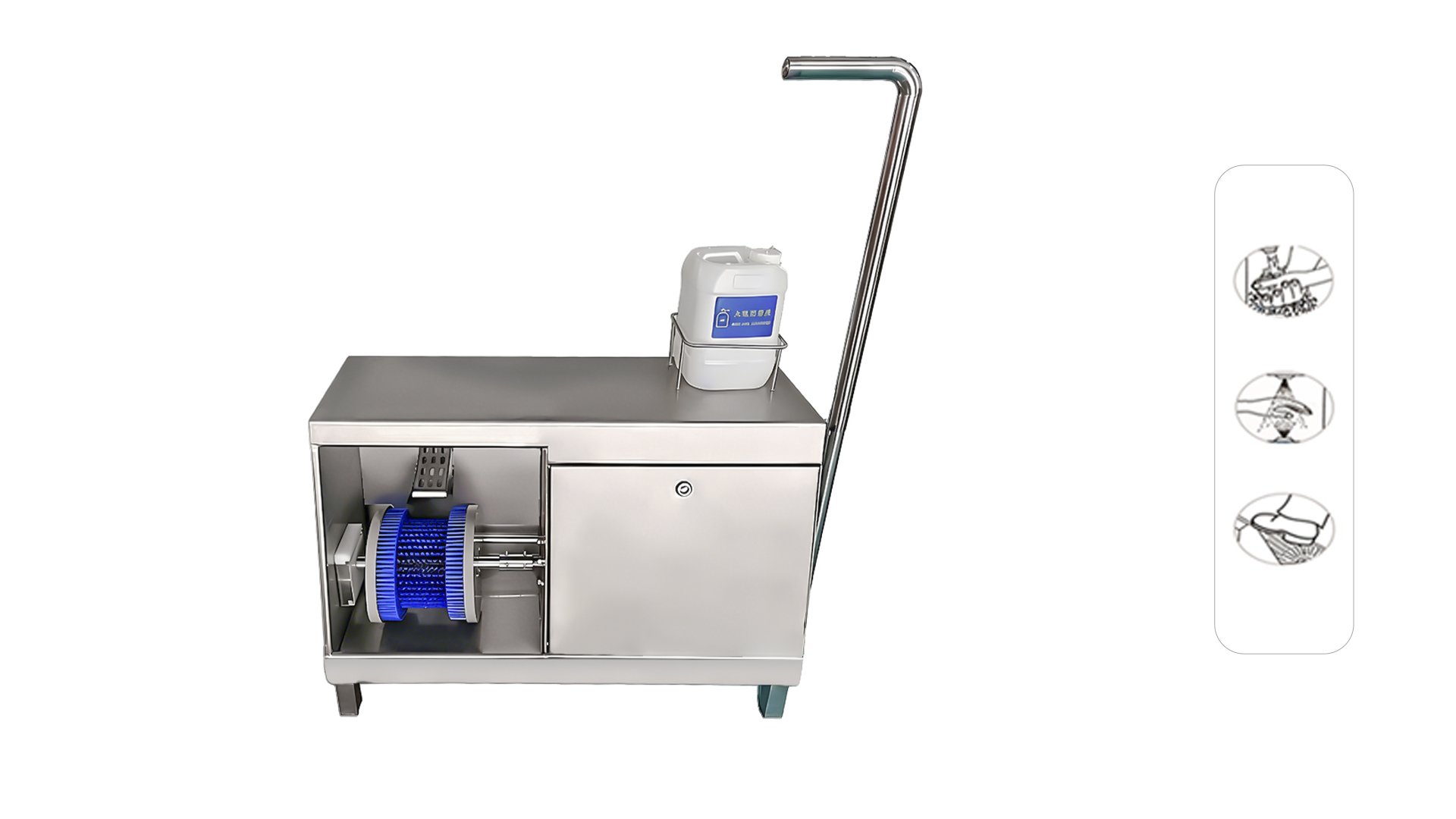

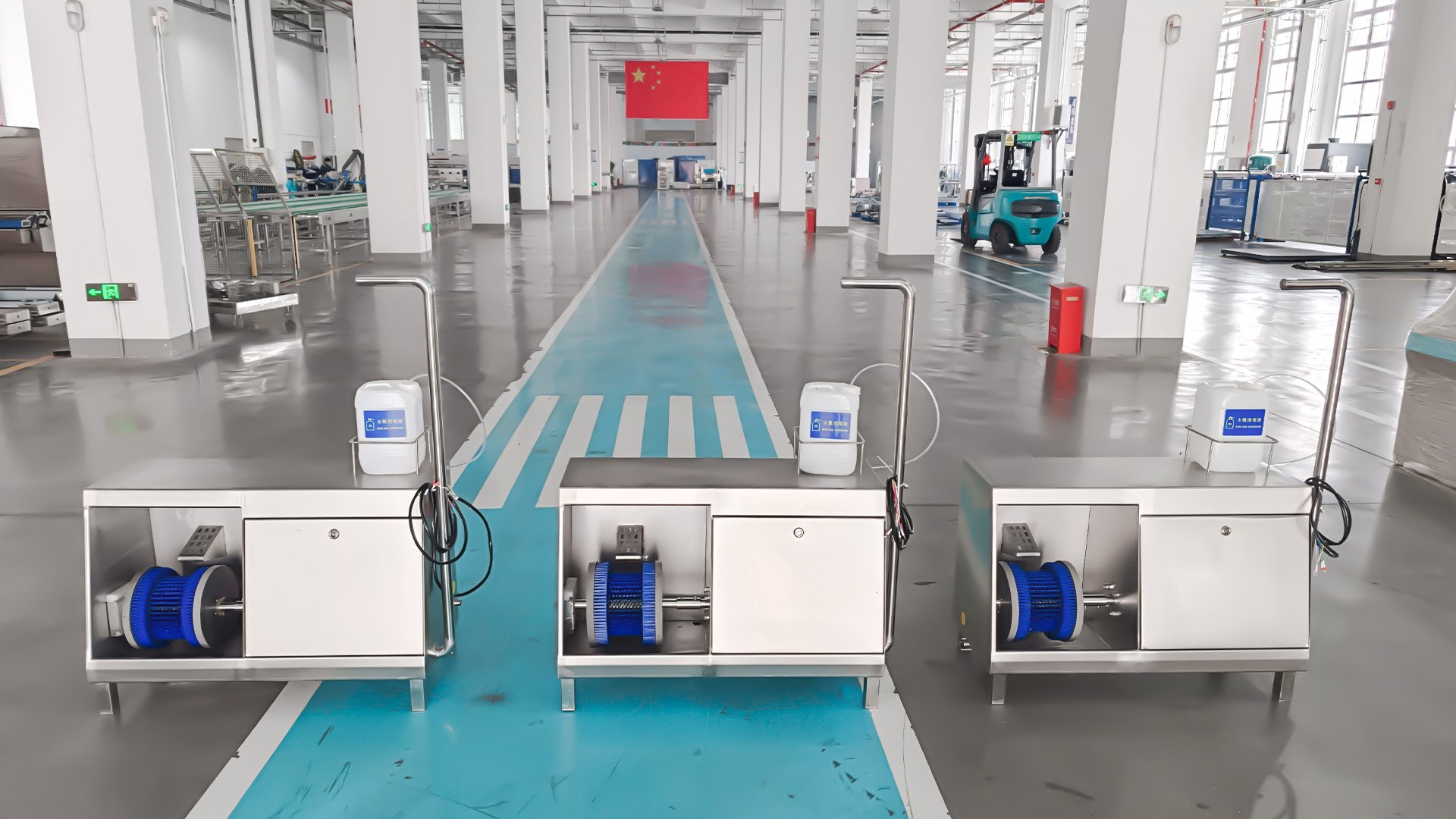

Equipment Detail Display

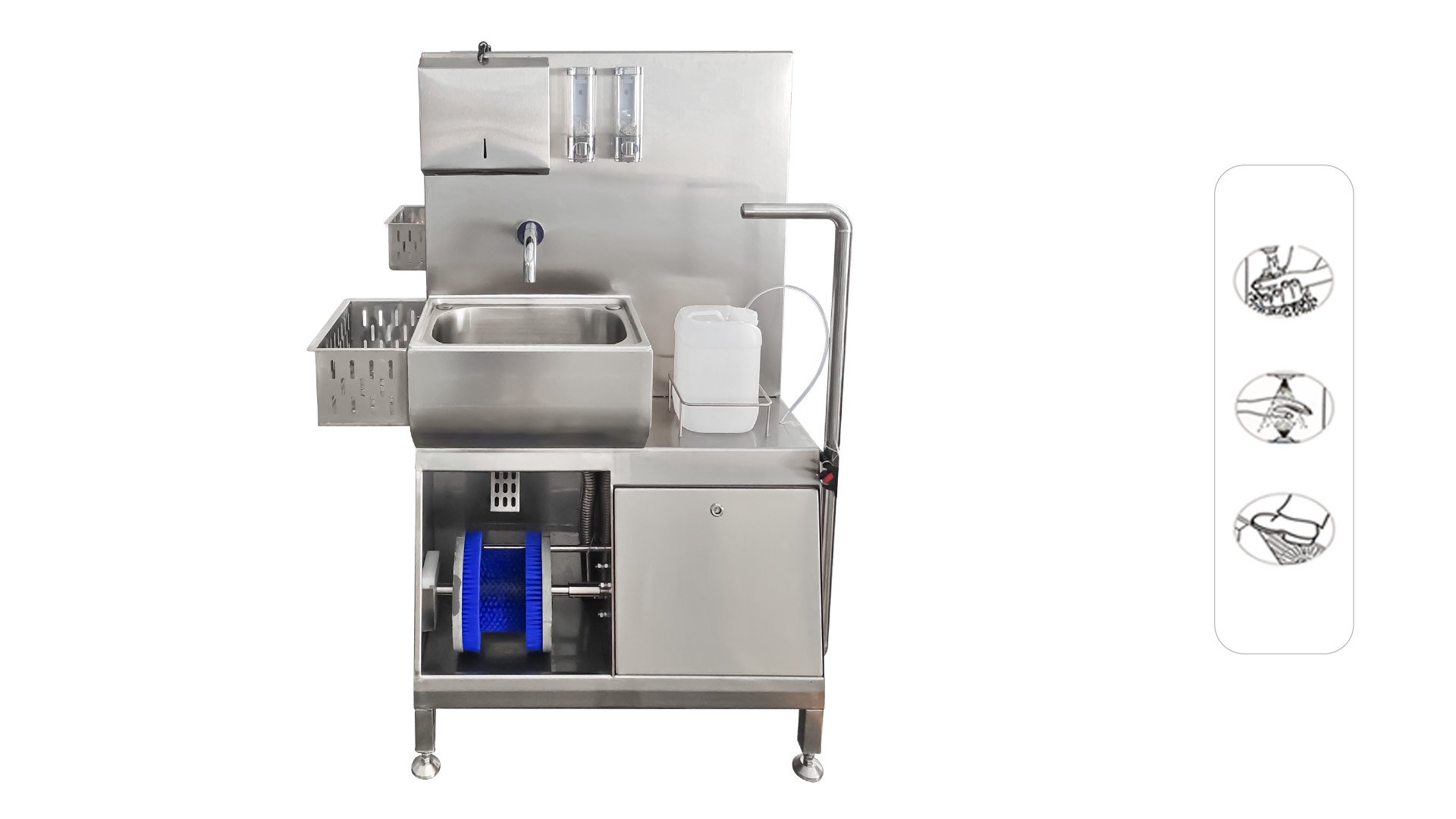

Working Principle

The HE-HCDS16 operates through a minimal, sensor-activated boot sole cleaning cycle:

1. Approach Detection: Photoelectric sensors detect the worker's approach and activate the cycle.

2. Boot Sole Washing & Disinfection: Horizontal brushes scrub and disinfect boot soles.

3. Cycle Completion: The machine stops automatically after the worker passes through.

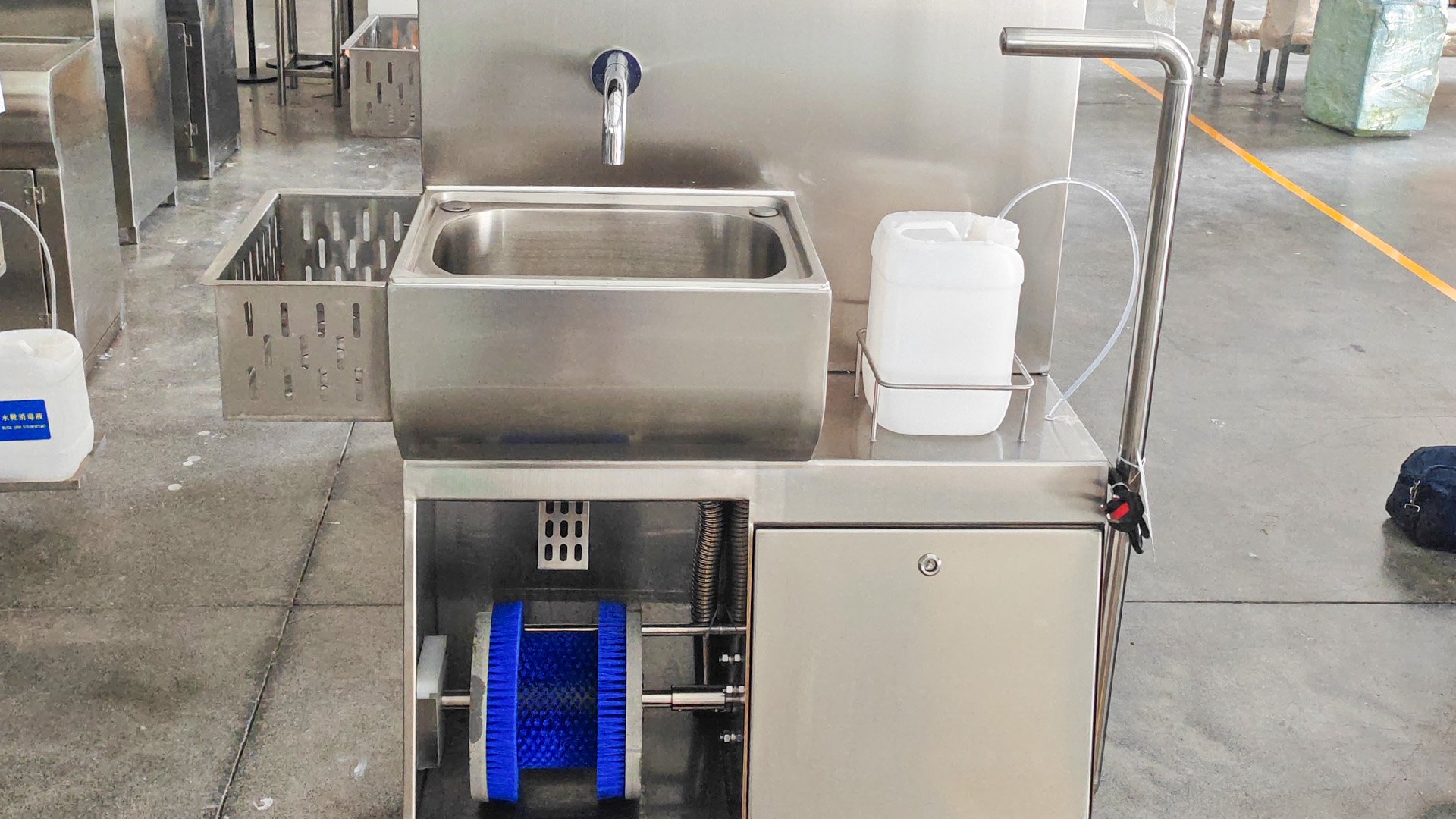

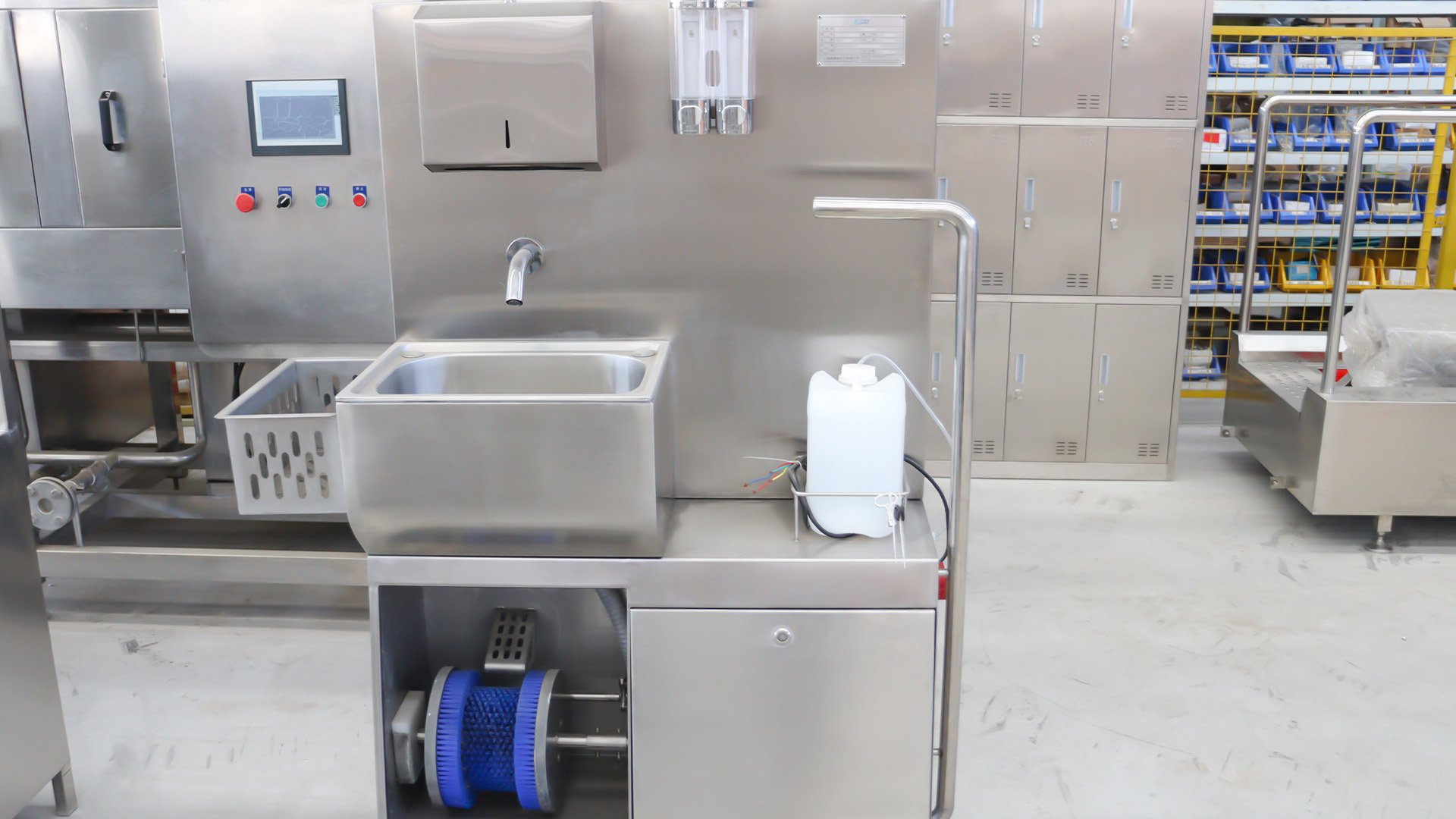

Application Scenarios & Industry Cases

The HE-HCDS16 is suited for facilities with the tightest spatial constraints requiring sole hygiene only:

• Very Space-Limited Entrances: Suitable for the narrowest corridors or transitional checkpoints.

• Supplementary Sanitation Points: Adds boot sole hygiene at locations already served by other hand hygiene stations.

• Small Bakeries & Pet Food Facilities: Provides minimal-footprint sole cleaning.

• Internal Zone Transitions: Suitable for transitions between low-risk processing zones.

Qualification & Factory Strength

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. specializes in clean industrial and hygiene equipment for food processing facilities. The HE-HCDS16 offers the most compact standalone sole cleaning solution in our hygiene station range.

Our production facility applies precision stainless steel fabrication with fully welded, GMP-compliant surfaces. Henger Technology hygiene equipment is manufactured under CE and ISO 9001 certified processes.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the HE-HCDS16?

A: Boot sole washing and disinfection only, in the smallest footprint within the boot washing series.

Q: What are the dimensions of the HE-HCDS16?

A: The unit measures 910 x 400 x 1200 mm (L x W x H).

Q: What is the power consumption of the HE-HCDS16?

A: The unit operates at 0.4 kW.

Q: How does the HE-HCDS16 compare to the HE-HCDS13?

A: Both provide sole-only cleaning; the HE-HCDS16 has a smaller footprint (910 x 400 x 1200 mm) compared to the HE-HCDS13 (2270 x 1000 x 1450 mm) and lower power consumption.

Q: Can the voltage be customized?

A: Yes. Standard voltage is 380V / 50Hz; configurations for 220V single-phase, 60Hz, or other regional standards are available upon request.

Q: How do I maintain the equipment?

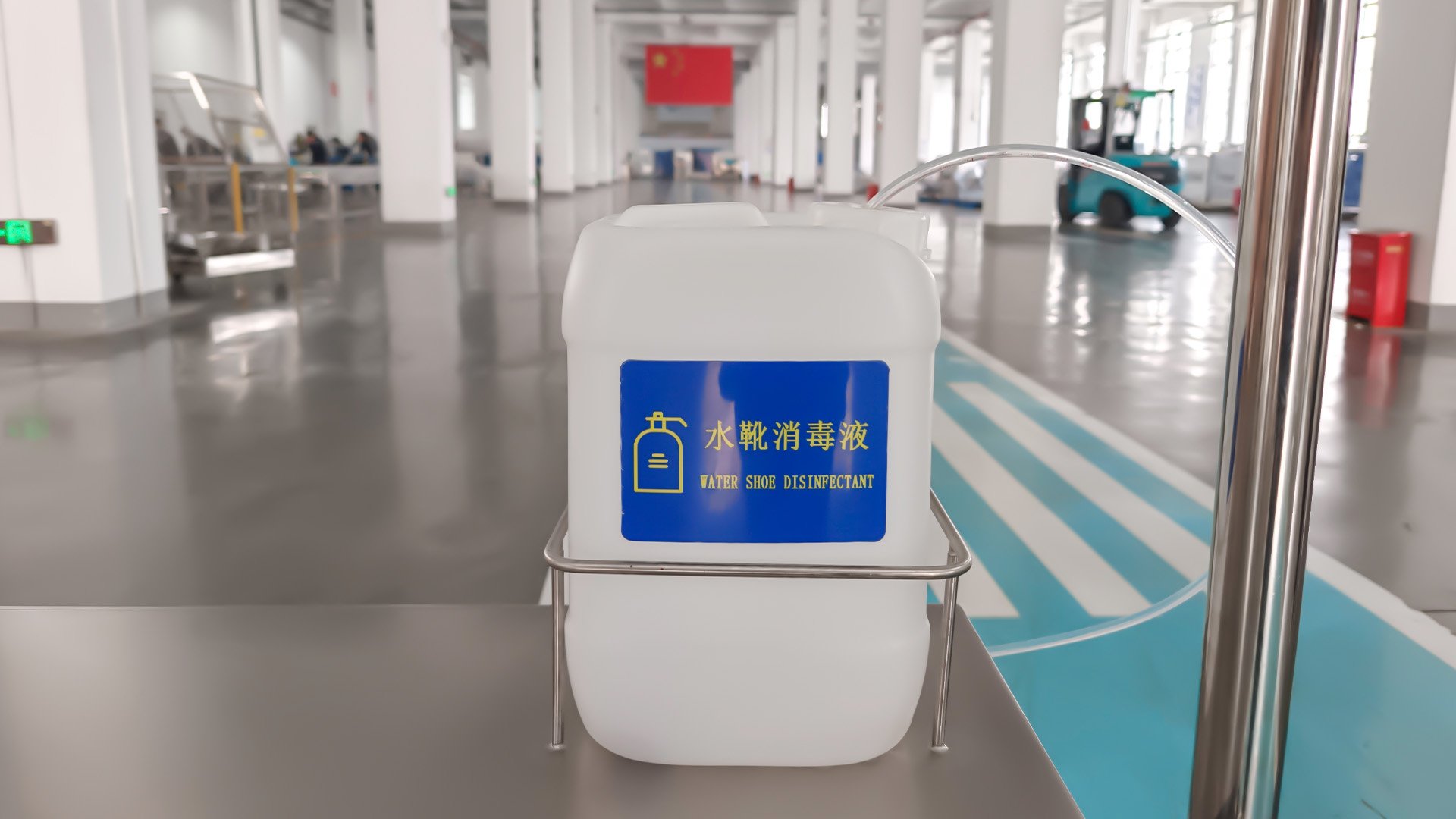

A: Daily rinsing of brush rollers, weekly inspection of the disinfectant tank, and monthly checks of electrical connections and sensors are recommended.
