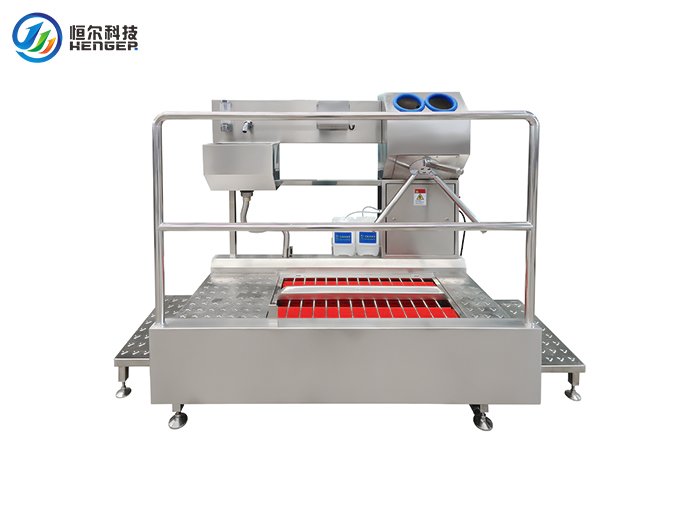

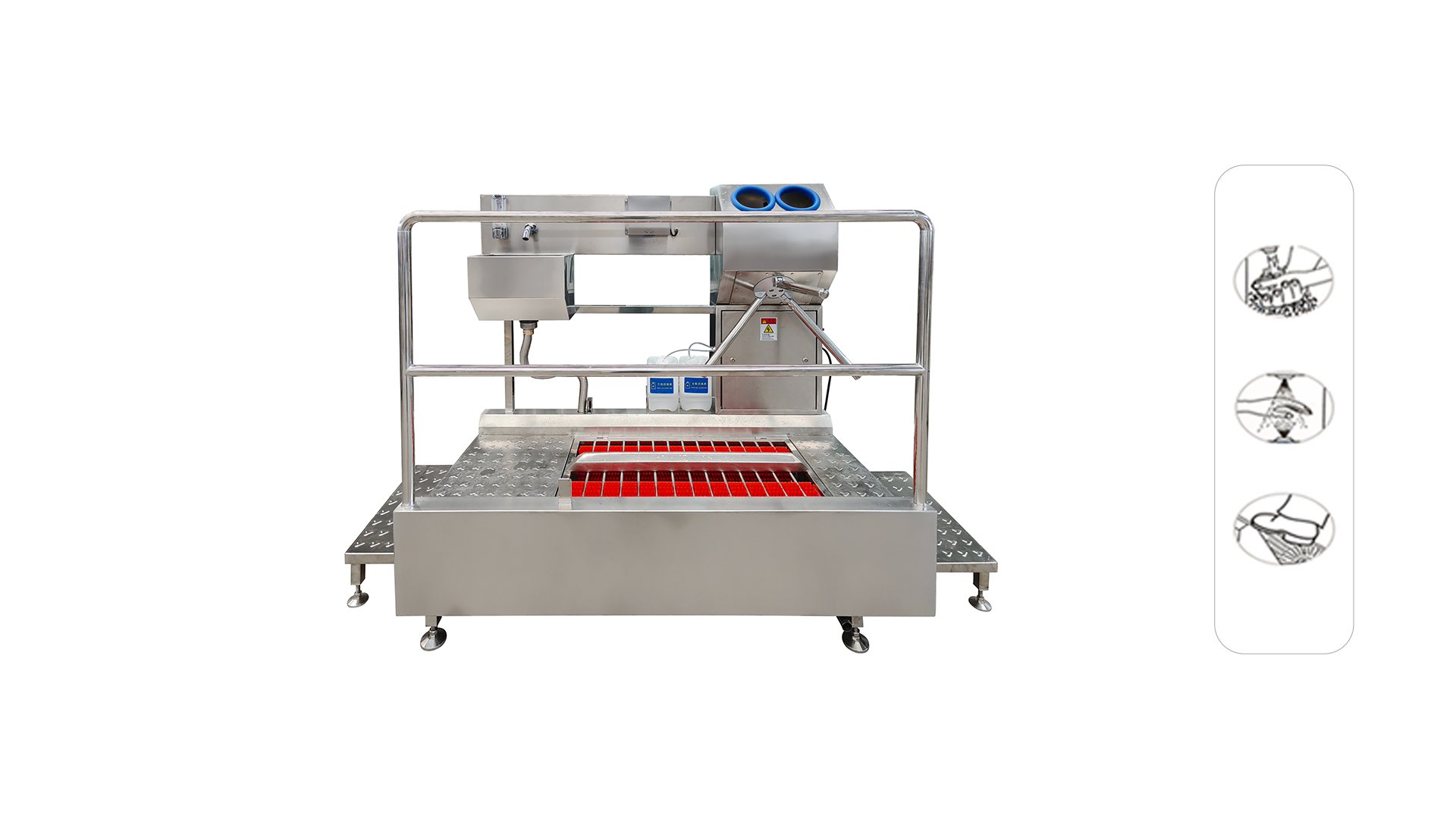

HE-HCDS09 Auto Wash Basin Station with Auto Hand Dryer and Sole Cleaning

Product Introduction

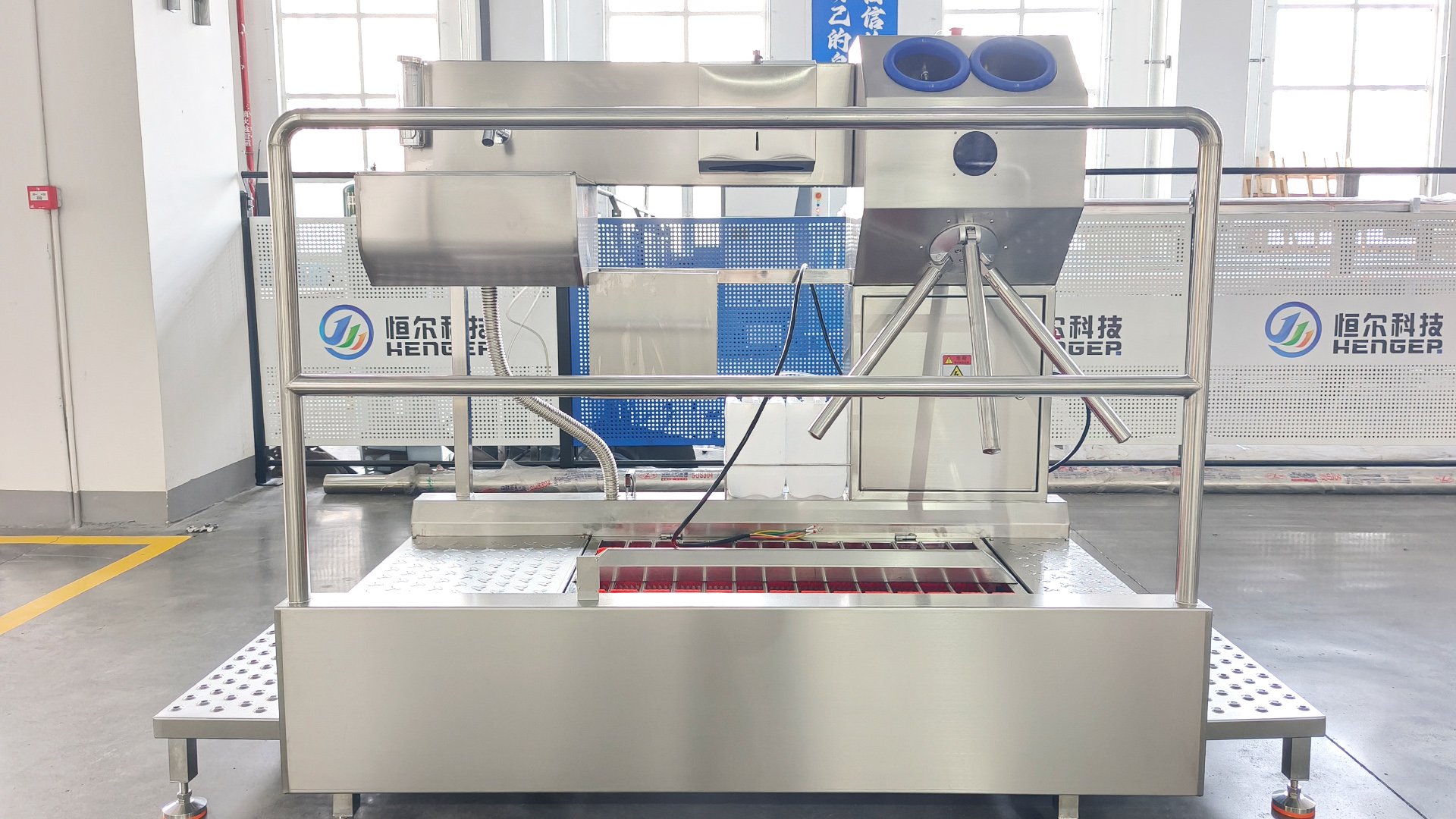

The Henger Technology HE-HCDS09 is an integrated hygiene station featuring an auto wash basin, soap dispenser, auto hand dryer, hand sanitizer, and boot sole washing and disinfection, completed by an access control gate.

Operating at 0.9 kW and built from 304 stainless steel with 2.0 mm plate thickness, the HE-HCDS09 distinguishes itself within Category C by including an automatic hand dryer in place of a tissue and waste box, supporting a paper-free hand drying process.

Core Advantages

• Automatic Hand Drying: An integrated auto hand dryer replaces disposable tissue, supporting a paper-free hygiene process.

• Comprehensive Hand Hygiene: Combines an auto wash basin, soap dispenser, auto hand dryer, and hand sanitizer in one unit.

• Streamlined Boot Sole Cleaning: Focuses boot cleaning on the sole area for efficient cycle time.

• Low Power Consumption: The 0.9 kW rating offers energy-efficient operation.

• 304 Stainless Steel Construction: 2.0 mm plate thickness supports durability in humid, food-grade environments.

• Photoelectric Sensor Automation: Fully automatic operation activates on approach and stops after passage.

• Access Control Integration: The gate unlocks only after the complete hygiene cycle is finished.

Technical Specifications

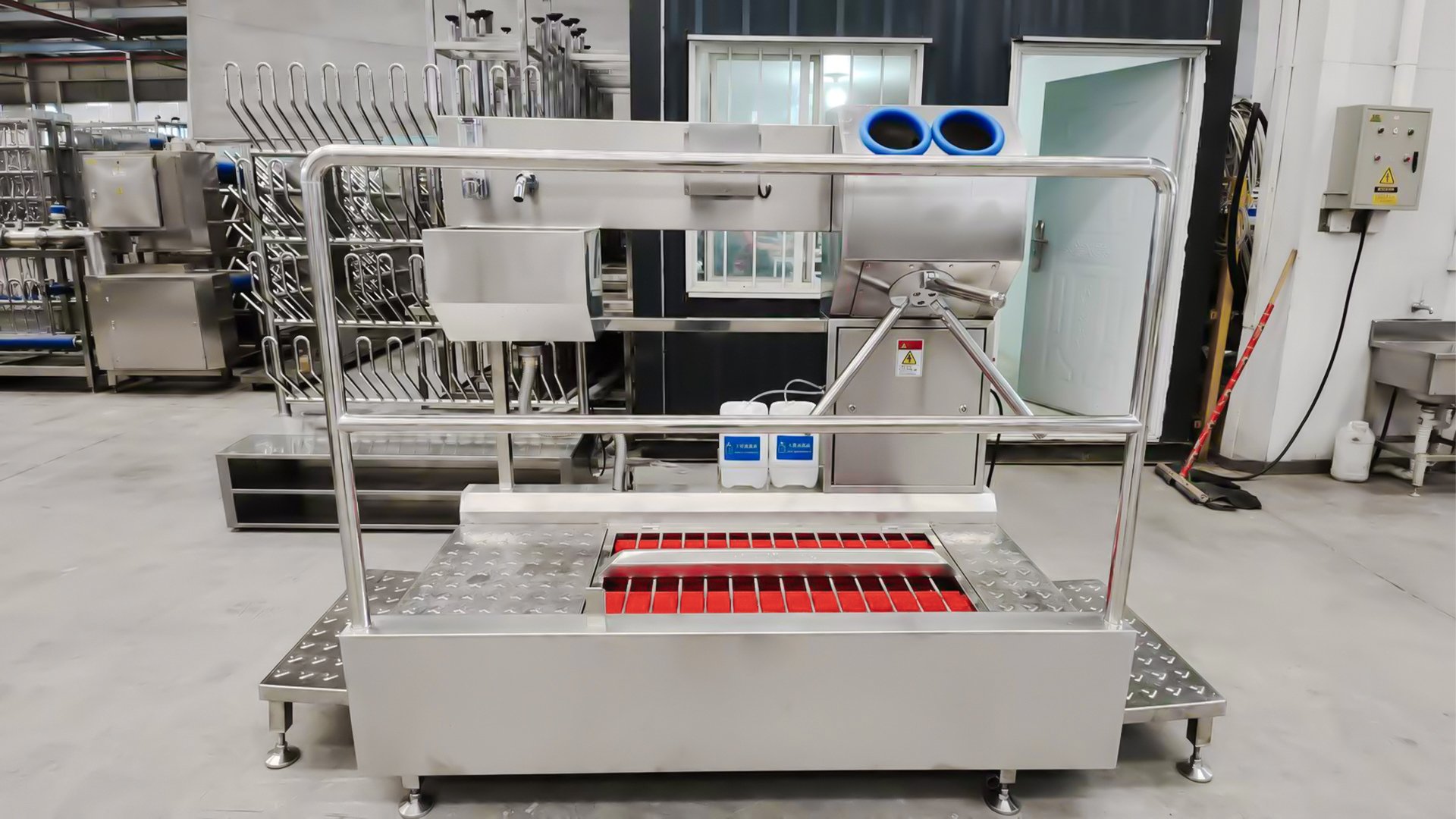

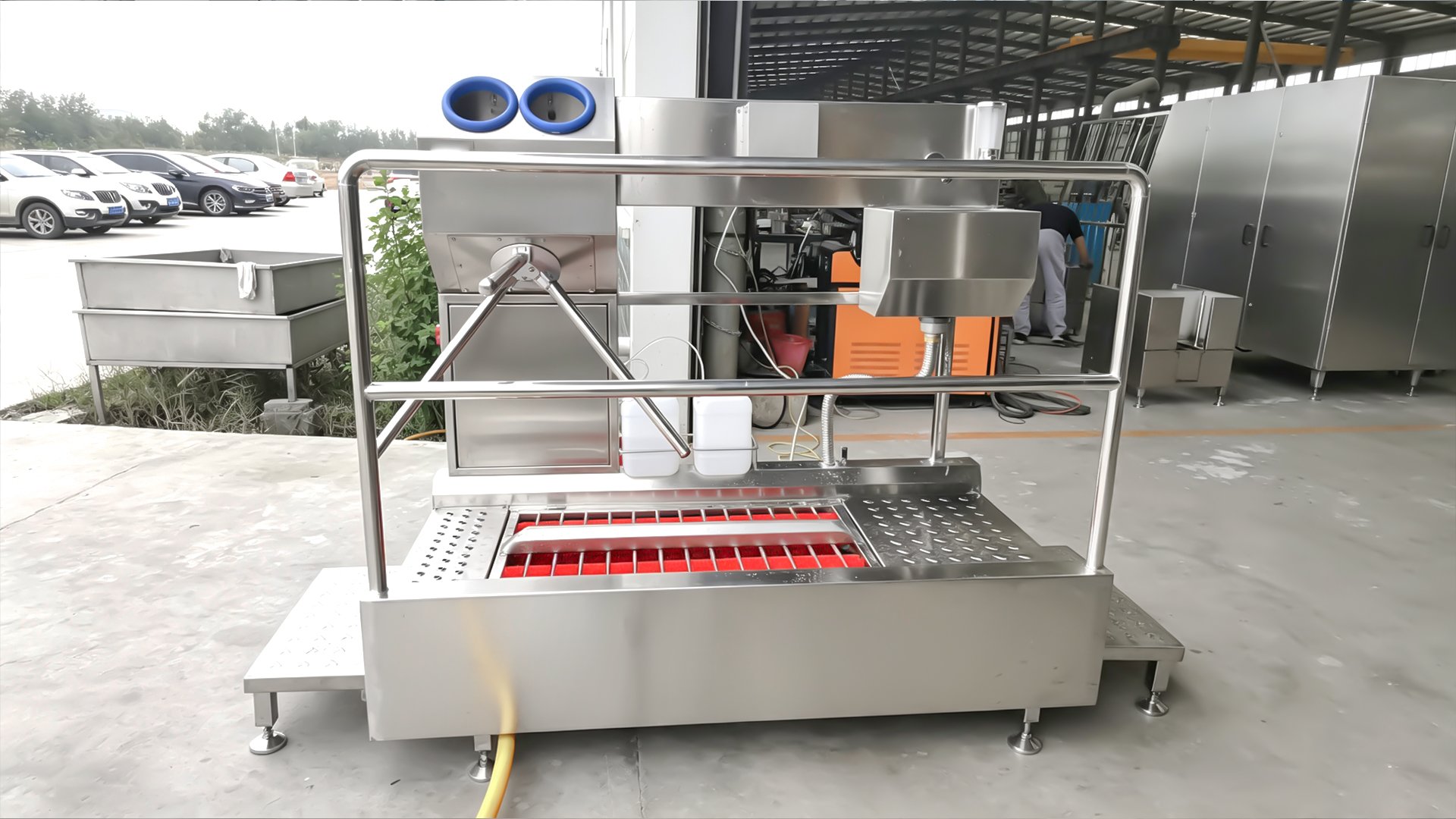

Equipment Detail Display

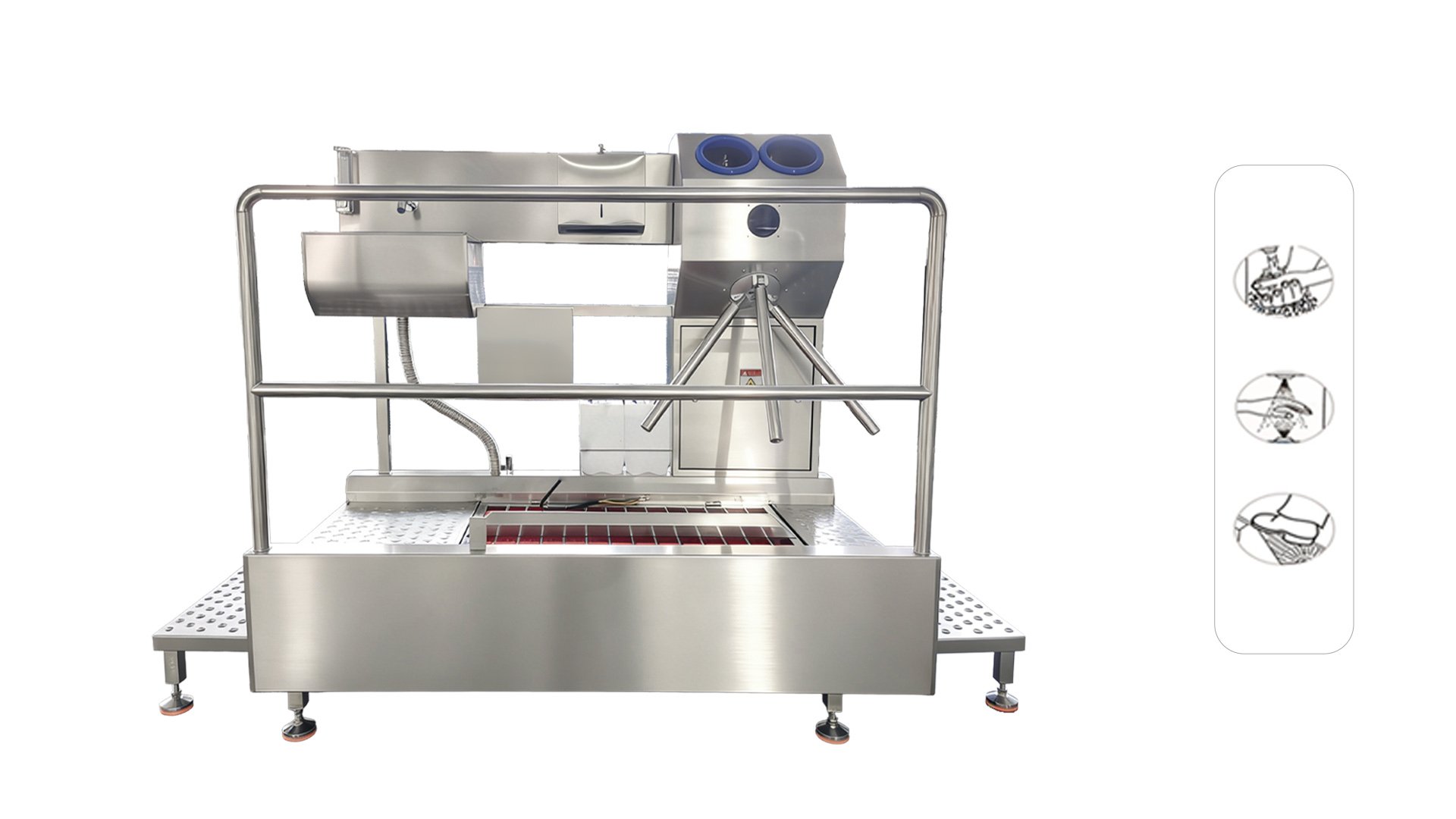

Working Principle

The HE-HCDS09 operates through a sensor-activated hygiene cycle with automatic hand drying:

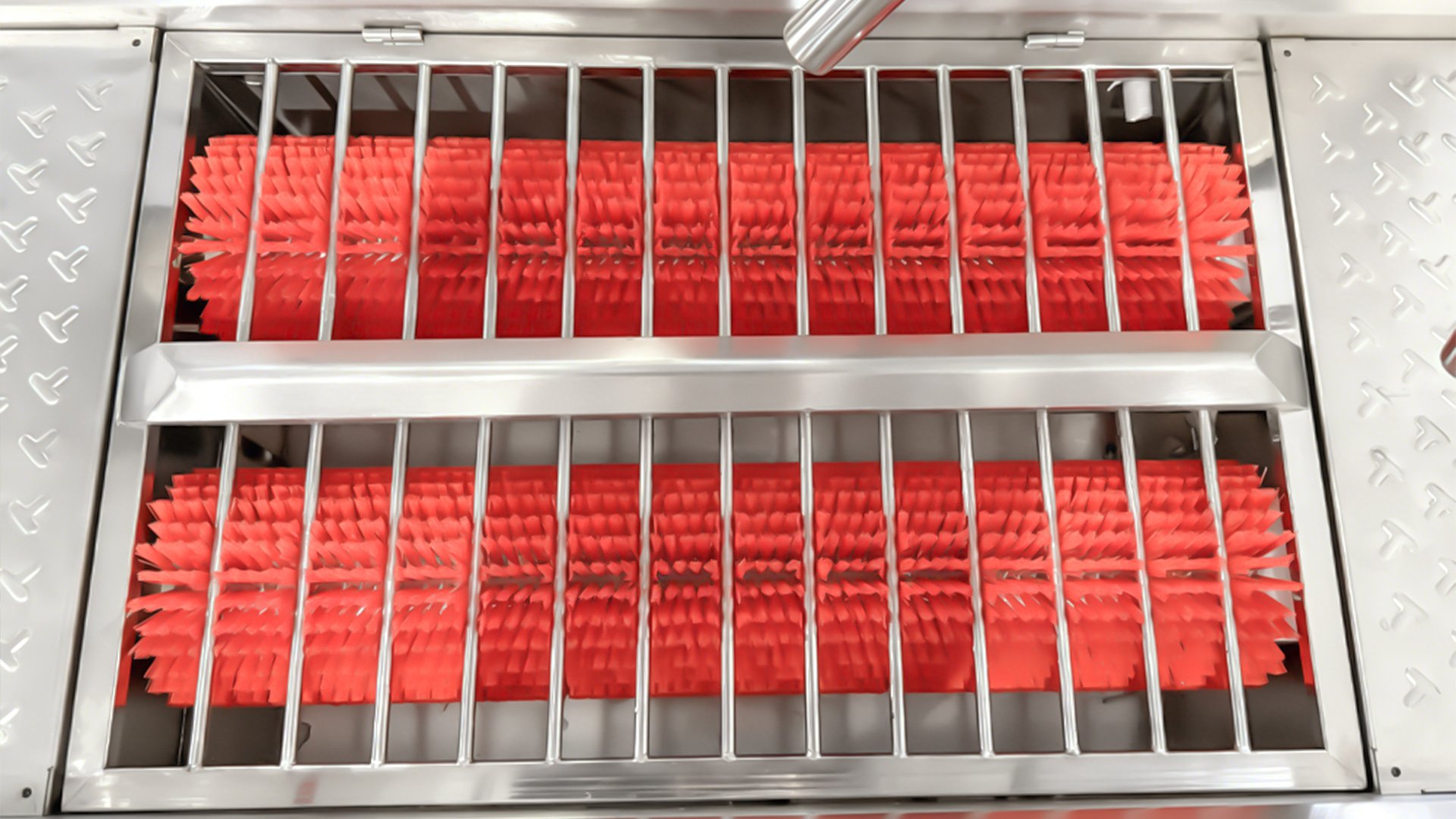

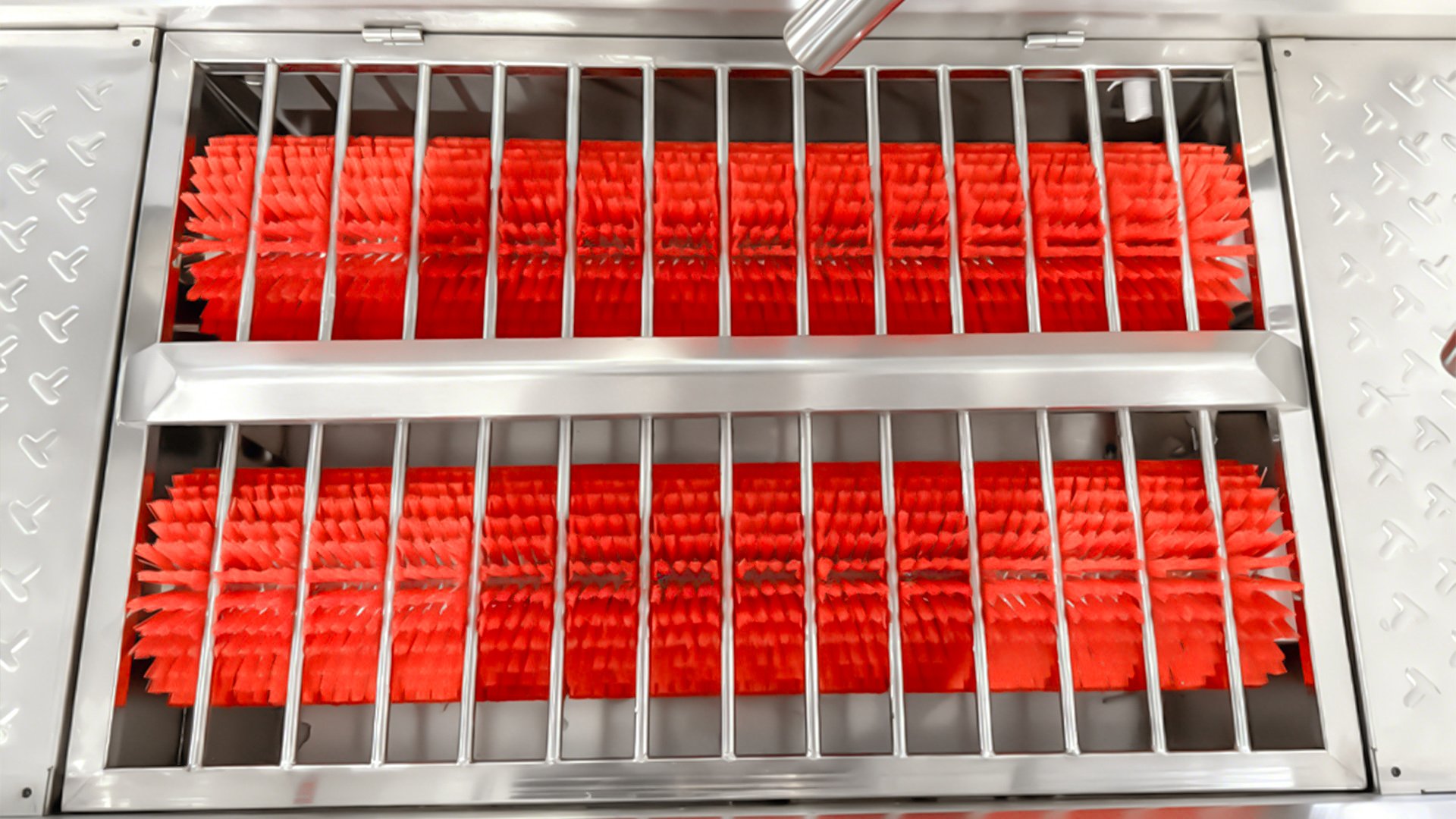

1. Boot Sole Washing: Photoelectric sensors detect approach; horizontal brushes clean and disinfect boot soles.

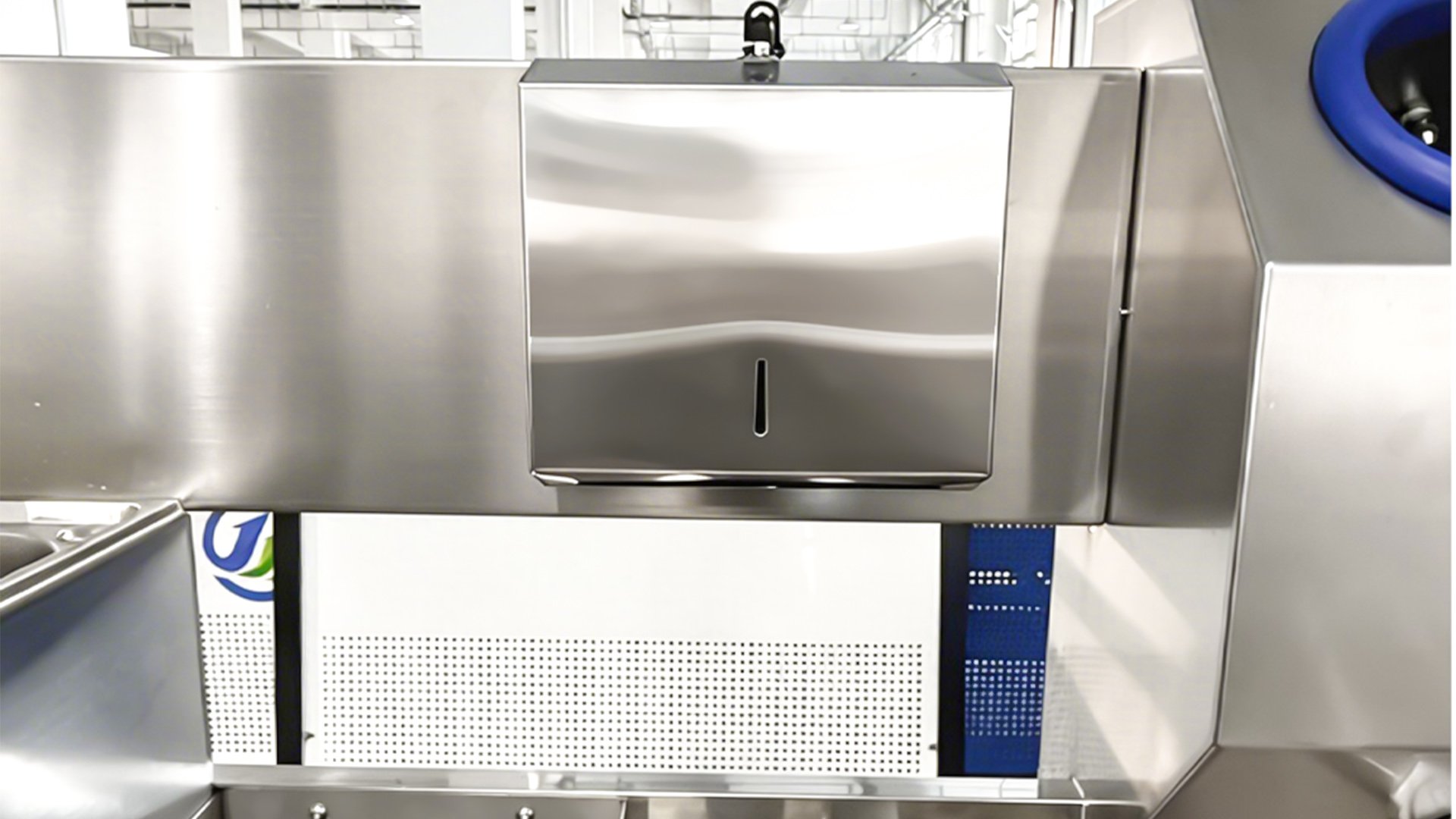

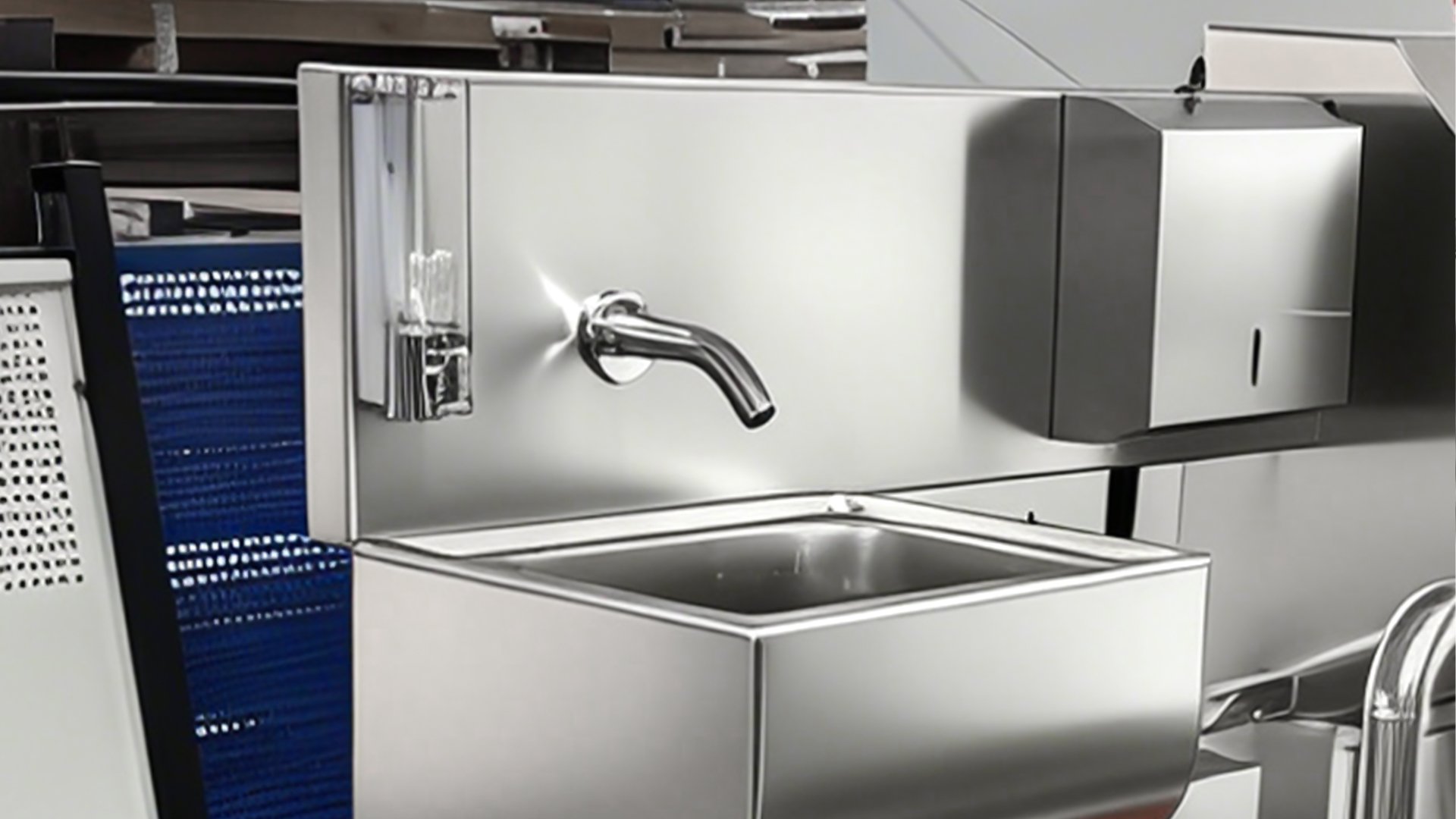

2. Auto Wash Basin Activation: The auto wash basin dispenses water with the integrated soap dispenser for hand washing.

3. Automatic Hand Drying: The built-in auto hand dryer dries hands without disposable tissue.

4. Hand Sanitizing & Access Control: Hand sanitizer is dispensed to complete disinfection, and the access gate unlocks to allow passage.

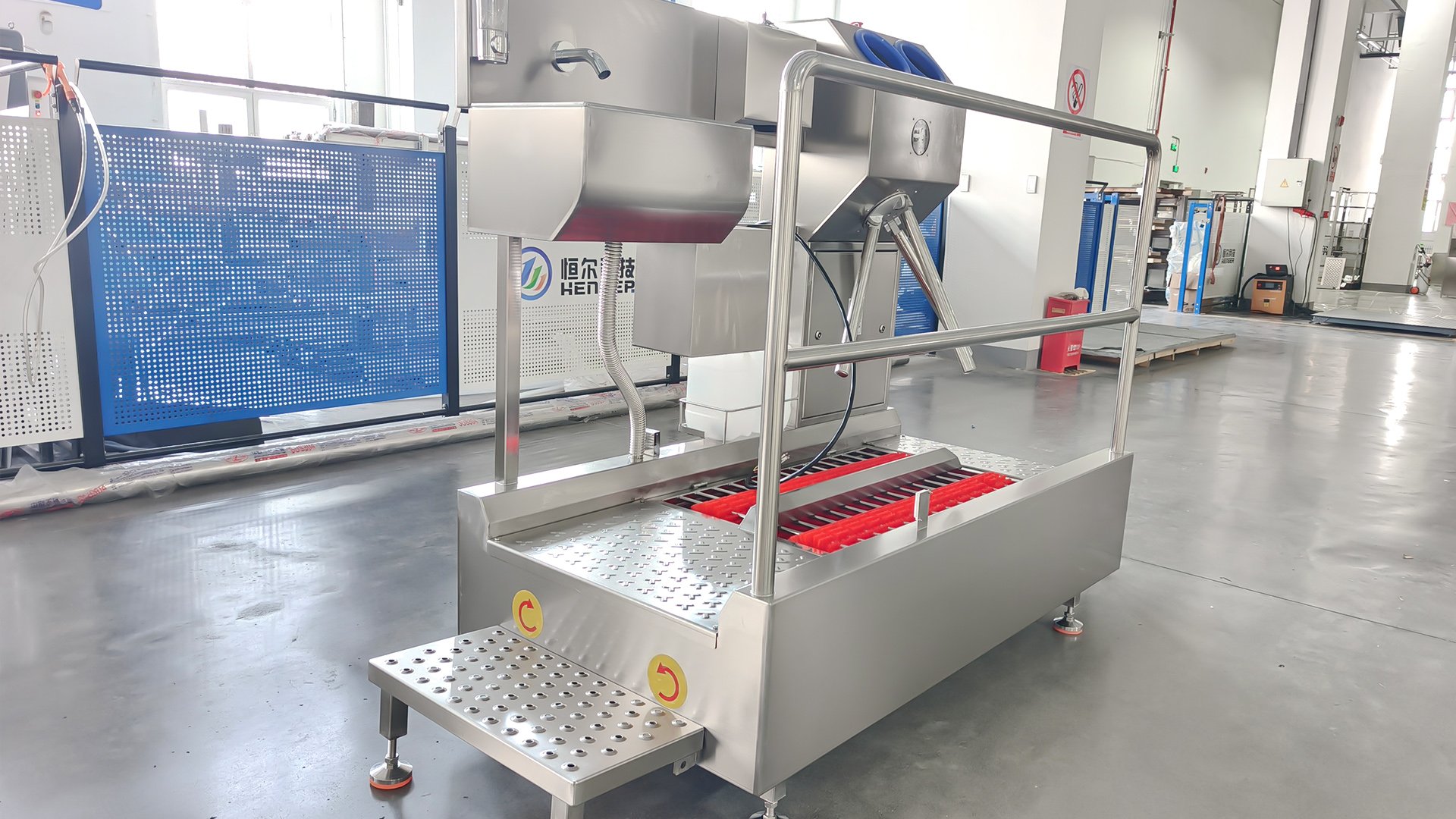

Application Scenarios & Industry Cases

The HE-HCDS09 is suited for facilities preferring a paper-free hand hygiene process:

• Pharmaceutical & Cleanrooms: Supports particulate control by reducing disposable paper waste at entry points.

• Dairy Processing: Controls microbial transfer between raw milk reception and packaging areas.

• Beverage & Bottling Plants: Establishes hygiene checkpoints separating production from external environments.

• Central Kitchens & Catering: Enforces food safety compliance at preparation zone entrances.

Qualification & Factory Strength

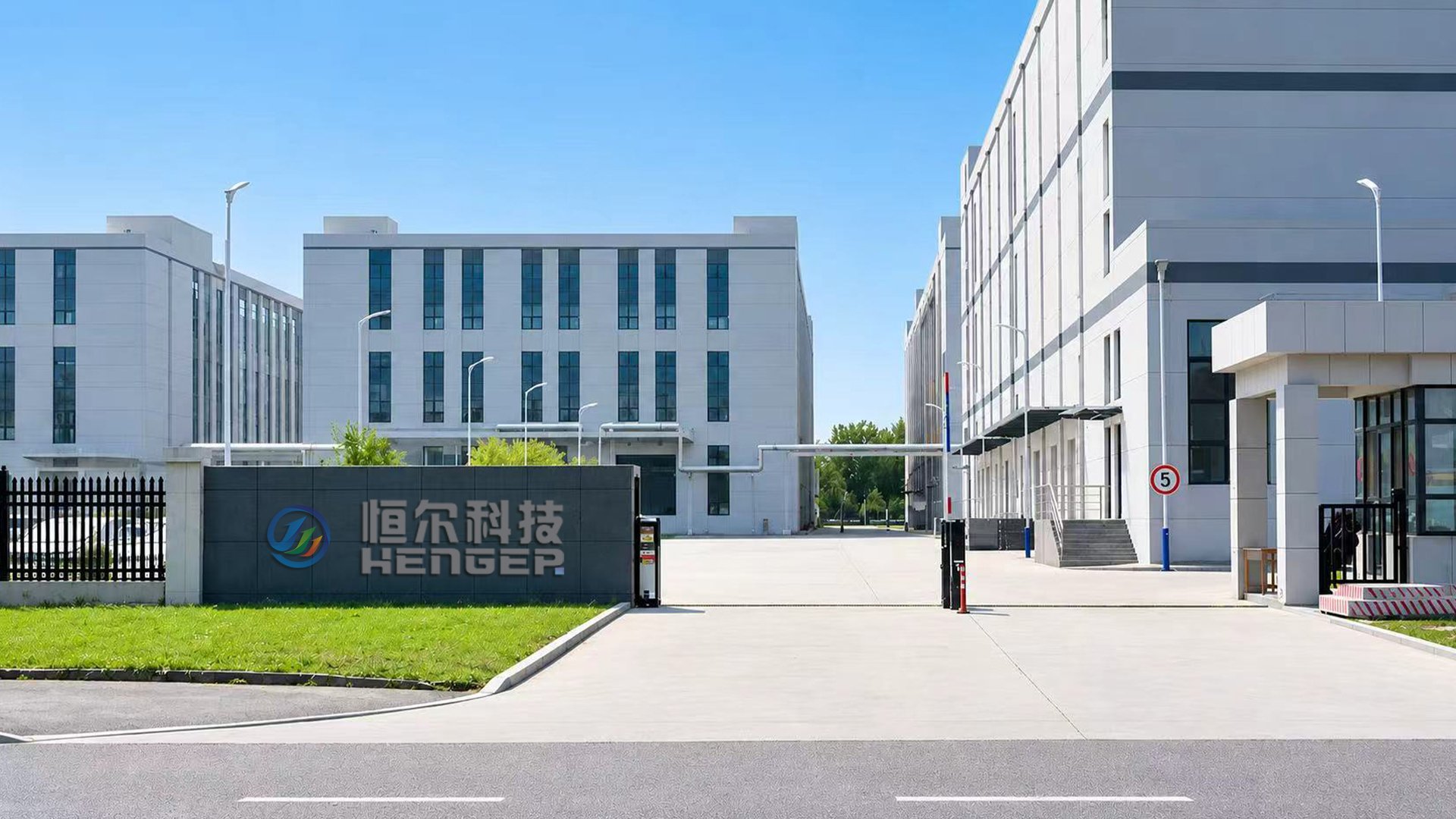

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. specializes in clean industrial and hygiene equipment for food processing facilities. The HE-HCDS09 offers a paper-free hand drying configuration within our integrated wash basin range.

Our production facility applies precision stainless steel fabrication with fully welded, GMP-compliant surfaces. Henger Technology hygiene equipment is manufactured under CE and ISO 9001 certified processes.

Frequently Asked Questions (FAQ)

Q: What makes the HE-HCDS09 different from the HE-HCDS07 and HE-HCDS08?

A: The HE-HCDS09 includes an automatic hand dryer instead of a tissue and waste box, supporting a paper-free hand drying process, while boot cleaning is focused on the sole area.

Q: What hand hygiene functions does the HE-HCDS09 include?

A: Auto wash basin, soap dispenser, auto hand dryer, and hand sanitizer.

Q: What is the power consumption of the HE-HCDS09?

A: The unit operates at 0.9 kW, offering energy-efficient operation.

Q: What are the dimensions of the HE-HCDS09?

A: The unit measures 2450 x 1160 x 1600 mm (L x W x H).

Q: Can the voltage be customized?

A: Yes. Standard voltage is 380V / 50Hz; configurations for 220V single-phase, 60Hz, or other regional standards are available upon request.

Q: How do I maintain the equipment?

A: Daily rinsing of brush rollers and basins, weekly inspection of the disinfectant tank and metering pump, and monthly checks of electrical connections and sensors are recommended.

Contact Henger Technology for Your Custom Solution

For a detailed technical proposal or a factory-direct quotation, please contact our engineering team. We offer free layout drawings and customized configuration plans based on your facility's specific throughput and space requirements.

Email: info3@hengerchina.com

Telephone (China HQ): +86 188 5430 1050

Factory Address: High-tech zone, Binzhou City, Shandong Province, China
