Central Kitchen Hygiene Equipment: A Step-by-Step Guide to Washing Containers, Carts and Workwear

Blog Post - Industry News | Publish date: 2026-09-22

Introduction

A central kitchen does in one building what a normal food factory spreads across several: it receives raw material, preps vegetables and proteins, cooks, cools, portions and dispatches - often for hundreds of outlets, schools, hospitals or catering contracts - and it does all of it in a space that is smaller than the volume of work suggests.

That combination changes what hygiene equipment has to do. Containers change type several times a day, from vegetable crates to portion trays to insulated transport boxes. Staff numbers peak sharply before each dispatch window. Oven carts and blast chiller racks move between cooking and cooling areas. And because a central kitchen usually runs under one food safety programme for many downstream sites, the cleaning routine has to be documented, not improvised. This guide follows the hygiene cycle of a central kitchen step by step and shows which machines each step needs, using specifications published on Henger’s product pages.

What Makes a Central Kitchen Different from a Single-Product Plant

· Mixed production in one space. Raw vegetables, cooked proteins and ready-to-eat portions share a building, so containers and utensils have to be cleaned between product categories, not just between shifts.

· Many container types, all of them returnable. Crates, trays, portion boxes, insulated transport containers and waste bins all circulate - and each has its own soil and its own cleaning requirement.

· Steep peaks in staffing. The dispatch window concentrates people at entrances, so entry hygiene has to absorb a large group in a short time.

· Oven carts and blast chiller racks. Cooking and rapid cooling equipment moves on wheeled carts, which collect fat, protein and smoke deposits in places a hose does not reach.

· One hygiene programme, many sites. The kitchen is the first link in a chain that delivers to outlets, so cleaning records have to stand up to scrutiny from downstream customers and auditors.

The Hygiene Cycle of a Central Kitchen, Step by Step

The table below is a typical sequence for illustration. The equipment list is what matters: each step in the daily cycle has a container or a surface that a specific machine is designed for.

Step 1 - Receiving and the Container Loop

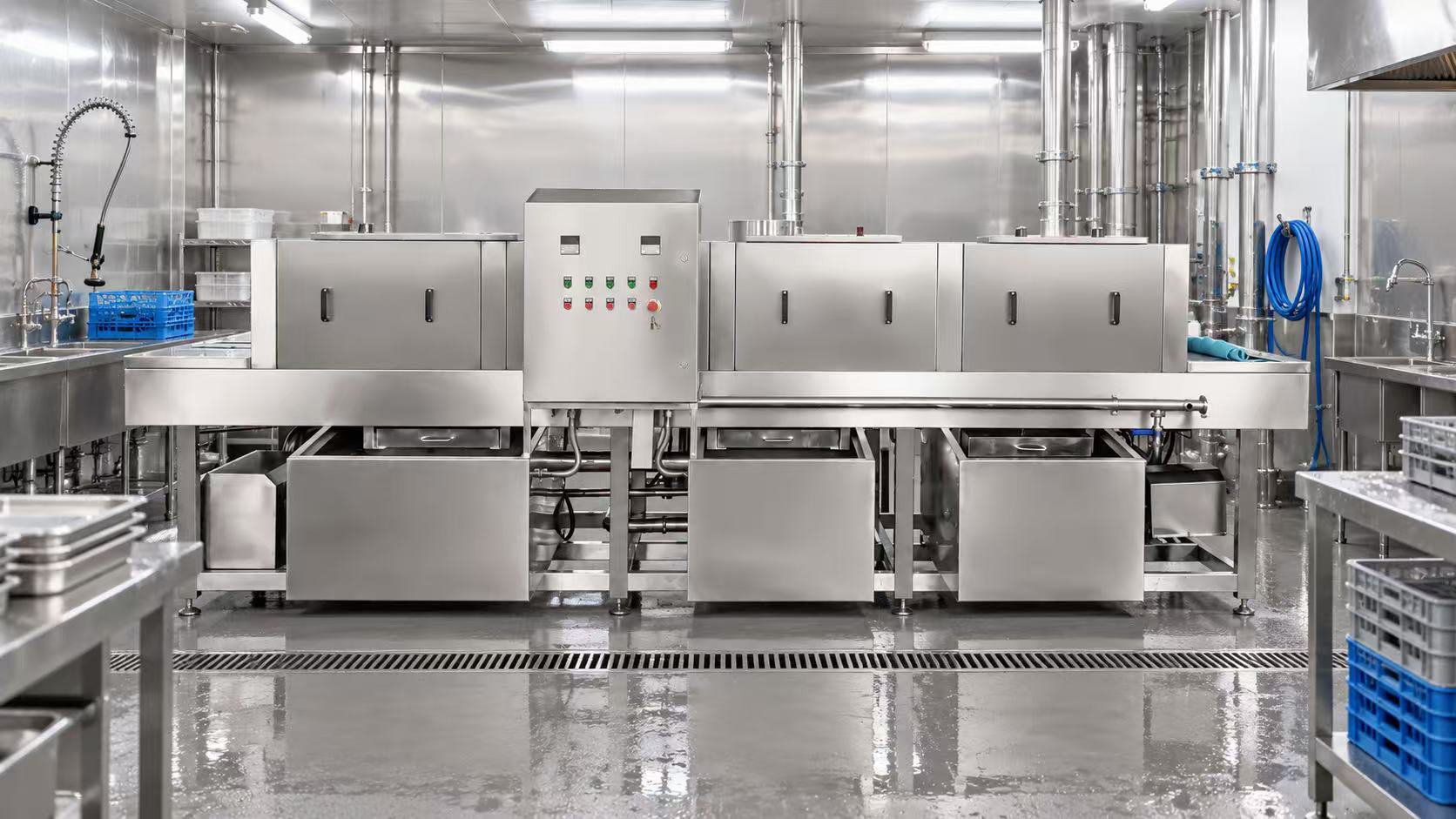

A central kitchen lives on returnable containers. Delivery crates arrive with vegetables, transport boxes come back from the outlets, and all of them have to be washed before they touch anything else. A tunnel-type machine washes them continuously: containers feed on a dual-track conveyor through heated, high-pressure spray stages. Henger builds the HE-3600 and HE-4800 crate washing machines in food-grade SUS304 stainless steel with a recirculating multi-tank water system and an optional air drying tunnel.

In a central kitchen the air drying tunnel earns its place more often than in a single-product plant. Transport boxes and crates frequently go straight from the wash room into a dispatch vehicle or a chilled store, and wet containers in a chilled environment are a hygiene and handling problem rather than a cosmetic one.

Step 2 - Entry Hygiene Before the Shift Starts

Because a central kitchen concentrates staff before each dispatch window, entry hygiene is a throughput problem as much as a compliance one. Henger’s stainless steel hand washing and disinfection station combines an induction faucet, soap dispenser, disinfectant dispenser and hand dryer in one 304 stainless steel unit, with configurations from one to five stations, so capacity can be matched to the actual size of the shift rather than to the size of the doorway.

Boots come next. The HE-HCDS19 compact tabletop boot washing machine is 1,200 x 620 x 920 mm in 304 stainless steel with 2.0 mm plate, starts its cycle automatically through photoelectric sensors, and cleans and disinfects both boot sides and soles with quick-release food-grade polyester brushes. Its small footprint means several units can be installed across parallel entry lanes where a central kitchen has limited wall space.

Lockers, shoe cabinets, drying racks and the wash stations are usually specified together as a Complete Dressing Room Hygiene Solution, so the change-wash-disinfect sequence is fixed before the room is built rather than adjusted afterwards.

Step 3 - Workwear During Production

Central kitchen staff work long shifts in waterproof aprons and protective clothing, and because production is continuous there is rarely a window to send workwear out for laundering. The apron washing machine is a 1,000 x 650 x 1,500 mm stainless steel cabinet driven entirely by water pressure with no electrical connection, automatic dosing of cleaning and disinfectant agents, and a dual wash / disinfect mode selected by a single knob - which makes it practical to place in or beside the changing room.

Step 4 - Combi Oven Carts, Trolleys and Blast Chiller Racks

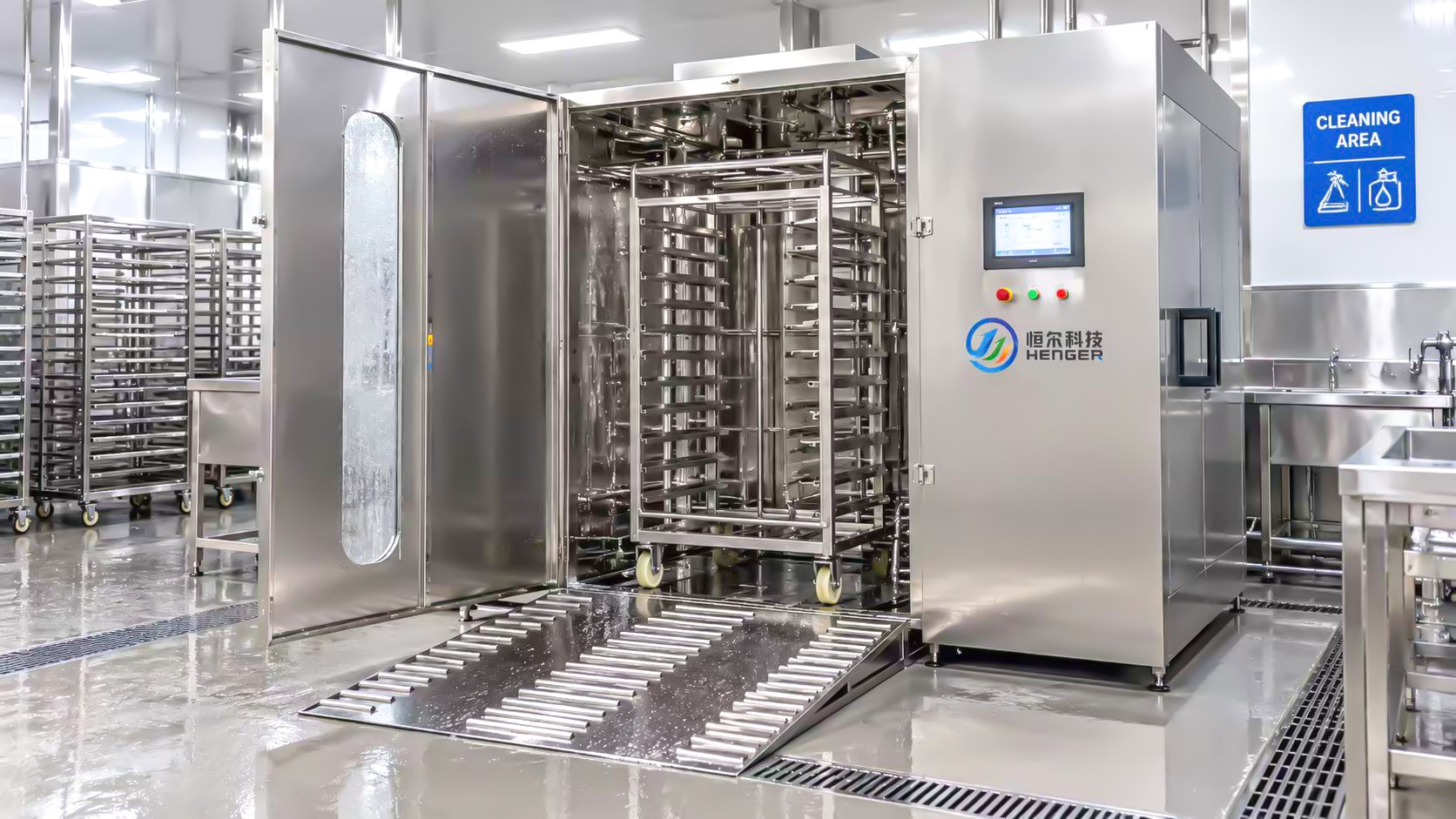

Cook-chill operations run on wheeled carts: combi oven racks that go from cooking into a blast chiller, transport trolleys that move portions to dispatch. After each thermal cycle these carts carry fat, protein residue and smoke or baked-on deposits, and every wheel and shelf gap is a hygiene risk if cleaning is inconsistent. The SCW-580 rack cart washer is a chamber machine built for this job, with a 360-degree rotating frame and a multi-angle spray system so the cart is cleaned on all sides, shelves and undersides in one cycle.

The published application list for this machine includes central kitchens and ready-meal factories with combi oven and blast chiller carts - which is exactly the cook-chill pattern most central kitchens run. The hygienic detail worth noting is water separation: wash water is filtered and reused from a circulation tank, while the final rinse uses fresh water from a separate clean water tank.

Step 5 - End-of-Shift Washdown

Floors, wall panels, work tables, drainage channels and equipment exteriors are washed down at the end of every production block. A central foam cleaning station consolidates high-pressure rinsing, foam cleaning, disinfectant application and compressed-air foam into one fixed workstation, with a 25 m sanitary hose, constant pressure control and intelligent timing - and a published water saving of 70% versus conventional cleaning methods.

The intelligent timing function matters more in a central kitchen than in most plants: when several production blocks run in one day, pre-set cleaning cycles keep the procedure identical at every block instead of varying with the operator on shift.

Step 6 - Bins, Waste and the Space Between Shifts

Waste containers are the containers nobody plans for. In a central kitchen they leave the hall full of prep waste and packaging and come back to the loading area, where they wait beside incoming deliveries. Henger’s automatic tunnel-type trash can and bin washing machine handles 120L and 240L wheelie bins and large containers on a heavy-duty stainless steel conveyor chain, with a three-stage process - hot pre-wash with detergent, high-pressure recirculating main wash, and a fresh water final rinse.

Planning the Wash Room as One System

Crates, transport boxes, oven carts, bins and workwear are all cleaned in the same part of the building, by the same small team, often in the same two-hour window. Henger groups this equipment under a single Tools Washing Solution precisely because specifying it machine by machine tends to leave the wash room undersized at the bottleneck and oversized elsewhere.

Central Kitchen Equipment Selection Checklist

Use the table below as a first-pass specification list, then confirm sizes and utilities against the floor plan and the busiest dispatch window.

FAQ

Q1: What hygiene equipment does a central kitchen actually need first?

Start with the two highest-volume loops: the crate and container washer, because returnable containers pass through the kitchen every day, and entry hygiene at the staff entrance, because a central kitchen concentrates people before each dispatch window. Rack cart washing and end-of-shift washdown normally follow, depending on whether the kitchen runs cook-chill production.

Q2: Can a crate washer handle transport boxes and insulated containers?

The tunnel handles rigid turnover containers - crates, baskets, trays, boxes and pallets - up to 650 mm wide and 350 mm high. Transport boxes within that envelope can run through the same machine. Bulkier insulated containers, or anything outside the envelope, need a customised conveyor opening, which we would review against your container list.

Q3: How do we clean combi oven carts and blast chiller racks?

With a chamber-type rack cart washer rather than a tunnel. The SCW-580 is sized for carts up to 1,000 x 1,000 x 2,000 mm and processes 20-30 carts per hour, running circulation wash, foaming, a second circulation wash and a fresh-water final rinse from a separate clean water tank. Its published application list includes central kitchens and ready-meal factories using combi oven and blast chiller carts.

Q4: Is an air drying tunnel necessary in a central kitchen?

It is worth costing whenever containers go straight from the wash room into a chilled store or a dispatch vehicle. Dry containers are easier to handle, do not drip through dispatch areas, and remove the residual water film that would otherwise carry moisture into packaging - which is why we usually raise it as an option at the specification stage.

Q5: How does this equipment fit a HACCP-based food safety programme?

Automated machines replace the operator-dependent hose rinse with a repeatable cycle: consistent water temperature, spray pressure and cycle time, with pre-set cleaning cycles available on the central foam station. HACCP principles require cleaning to be carried out consistently and documented, and machine-controlled cycles make that record easier to produce. The specific requirements depend on your food safety scheme and local regulations - this is general guidance, not a compliance statement.

Q6: What utilities and space should a central kitchen plan for?

As reference figures: the crate washer occupies 3.6-4.8 m of line length by 1.7 m wide; the SCW-580 requires 26.5 kW total power and a plant steam connection for its heated circulation tank; the bin washer processes 120L/240L bins continuously on a conveyor; hand washing stations range from 550 x 380 mm to 2,400 x 550 mm; the HE-HCDS19 boot washer is 1,200 x 620 mm. Henger provides free layout drawings before purchase.

Closing Call to Action

A central kitchen does not need more equipment than a factory - it needs equipment placed against the daily cycle: containers at intake, people at the entrance, workwear in the changing room, carts after each cook-chill cycle, surfaces at the end of each block, and bins before they re-enter the building.

If you are fitting out a new central kitchen or upgrading an existing wash room, Henger’s engineering team can prepare a free layout drawing and quotation for the complete package. Inquire now through the contact form, email info3@hengerchina.com, or WhatsApp +86 188 5430 1052.
