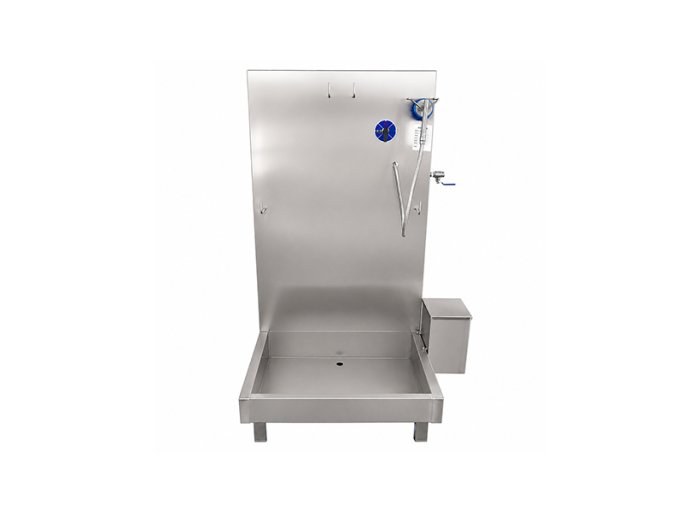

Apron Washing Machine

Key Highlights

· No electricity required — powered entirely by water pressure, no wiring, no power outlets needed

· Auto soap & disinfectant injection — built-in dosing system adds the right amount of cleaning agent automatically every cycle; no manual measuring or pouring

· Manual knob control — simple valve-based operation, wash and sanitize modes selectable via rotating knob; no training required for车间 staff

· 1.5mm food-grade stainless steel body — smooth surface, no residue traps, no bacterial dead zones; safe for direct food-contact environments

· Heavy-duty square tube frame — 50×50×2.0mm tubular steel frame provides structural rigidity, anti-deformation, and resistance to impact and wear under high-frequency use

· Large-gradient concealed drainage — sloped drain design eliminates standing water, prevents bacterial growth, and keeps the floor area dry and clean

· DN=15 ball valve water inlet — standard industrial fitting for quick connection to existing plant water supply; installs directly without plumbing modification

· HACCP / ISO 22000 compatible — supports food safety compliance requirements in food processing facilities

· Compact footprint — 1000 × 650 × 1500mm fits easily in locker rooms, changeover zones, and wash areas without taking up production floor space

Technical Specifications

Working Principle

1. Water Pressure Activation — the machine connects to the facility's standard water supply via the DN=15 ball valve inlet. No electrical connection is required. Water pressure alone drives the entire washing mechanism.

2. Auto Soap / Disinfectant Injection — as water flows through the system, the built-in dosing module automatically draws and injects a pre-set amount of cleaning solution and disinfectant. Dosage is consistent across every cycle, eliminating human error and waste from manual mixing.

3. Knob-Selectable Wash or Sanitize Mode — the operator turns a single manual knob to select the desired function. The valve configuration routes water and chemicals appropriately for either a primary wash or a post-wash sanitization rinse.

4. High-Coverage Spray Rinse — water jets spray the apron surface evenly from multiple angles, flushing away dissolved grease, food debris, and residues.

5. Rapid Concealed Drainage — the large-gradient drain channels all wash water away quickly. The concealed design prevents splash-back and keeps the surrounding floor area dry and clean, reducing slip hazards and bacterial harboring zones.

Application Scenarios

· Meat and poultry slaughter and processing plants — clean blood, fat, and tissue residue from operator aprons between shifts

· Central kitchens and meal prep facilities — remove food grease and cooking oil from staff aprons in high-output food production

· Dairy and dairy product processing — sanitize aprons in facilities where hygiene requirements are especially stringent

· Bakeries and confectionery production — clean flour, dough, and sugar residues from aprons used in baking environments

· Food processing workshops and small-scale food factories — flexible installation in any facility regardless of available electrical infrastructure

Any food-related operation where staff wear protective aprons during production and require a reliable, low-maintenance, compliant cleaning solution.

FAQ

Q: Does the machine need any electrical connection?

A: No. The apron washing machine is powered entirely by water pressure from the building's water supply. There is no electrical component, eliminating electrical safety risks in wet wash-area environments and removing the need for power outlets near the installation point.

Q: How does the auto soap injection work?

A: The built-in dosing module is activated by water flow. As water passes through the system, it draws a calibrated amount of cleaning solution and disinfectant from separate internal reservoirs and mixes them into the wash stream automatically. The dosage is pre-set during installation based on your facility's wash requirements.

Q: What type of cleaning agents can be used?

A: Standard food-industry liquid detergents and quaternary ammonium-based or chlorine-based disinfectants are compatible. The dosing module can be adjusted for different agent concentrations and types. Consult with your chemical supplier to confirm compatibility with stainless steel components.

Q: How is the apron loaded and washed?

A: The operator hangs or positions the soiled apron within the wash chamber and turns the manual knob to activate the wash cycle. Water and cleaning solution spray across the apron surface, followed by a sanitizing rinse cycle if selected. The entire process is operator-controlled via the knob — no programming or digital interface required.

Q: What maintenance is required?

A: Maintenance is minimal. The stainless steel body requires only routine wiping to keep the exterior clean. The concealed drain should be checked periodically to ensure it is clear of debris. The soap and disinfectant reservoirs should be refilled as needed. No electrical components means no wiring checks or motor maintenance.

Q: Can the machine be used outdoors or in cold environments?

A: The machine is designed for indoor installation in change rooms, wash zones, or production area entrances. In cold environments where freezing is a risk, winterization measures (draining the system when not in use) should be followed to prevent water residue from freezing in the lines.

Q: Does the machine help meet HACCP or ISO 22000 requirements?

A: Yes. By providing consistent, measurable washing and sanitization cycles for operator aprons, the machine supports the documented hygiene control measures required under HACCP and ISO 22000 food safety management systems.

Q: What is the installation requirement?

A: A standard DN=15 water supply connection is needed. No electrical work, no dedicated drainage pump, and no wall mounting are required. The machine can be positioned on any flat floor surface in the wash area.
