Bakery Hygiene Equipment: Separating Dry Zones from Wash Zones in Bread, Pastry and Frozen Dough Plants

Blog Post - Industry News | Publish date: 2026-09-23

Introduction

Most food plants have one cleaning problem. A bakery has two, and they pull in opposite directions. The dry side - weighing, mixing, forming, filling and decorating - is covered in flour dust and cannot be washed with water without turning that dust into paste. The wash side - trays, crates, racks, floors, drains and the equipment that carries baked product - is coated in fats, sugars and baked-on residues water alone will not shift.

Add flour-free, nut-free and dairy-free runs on shared equipment, and hygiene equipment has to be specified by zone rather than by machine category. This guide maps a bakery and frozen dough plant into dry zones, wash zones and transition zones, and shows what each zone needs.

Why Bakeries Are Two Plants in One Building

· Flour dust settles everywhere and is a recognised combustible dust in bulk handling. It gathers on ledges, motors, cable trays and overhead structures, where a hose cannot safely be used.

· Water and flour make paste, not cleanliness. Wetting a dusty dry zone pushes soil into joints and housings and creates the damp organic conditions hygiene teams then fight all week.

· Allergen changeovers run through shared containers. Gluten, nuts, dairy and egg products often use the same trays, crates and racks, so container cleaning is a food safety control point, not housekeeping.

· Sugars and fats bake onto surfaces. Caramelised sugar and baked-on fat on trays and rack shelves need heated water under pressure, not an ambient rinse.

· Frozen dough and part-baked lines add a cold link. Racks and trays move between proofers, blast freezers and dispatch, carrying frost and condensate.

Mapping a Bakery as Dry Zones, Wash Zones and Transition Zones

Dividing the building into three zone types avoids the central mistake of bakery hygiene design: buying a wet-cleaning solution for a dry problem, or a dry solution for a baked-on residue.

Dry Zones - The Areas That Should Not Be Hosed Down

The engineering answer in a dry zone is discipline: clean dry first, and treat water as a controlled tool rather than a default. In practice that means vacuum and brush cleaning of mixers, dividers, moulders and conveyors before any wet step, dedicated colour-coded tools for allergen-sensitive lines, and wash points with proper drainage where water is genuinely needed. Getting this wrong costs in both directions - a hosed-down dry zone leaves paste where no brush reaches, and a wash zone that is only dry-cleaned builds up sugar and fat films week after week.

Wash Zone 1 - Trays, Crates, Egg Trays and Stackable Containers

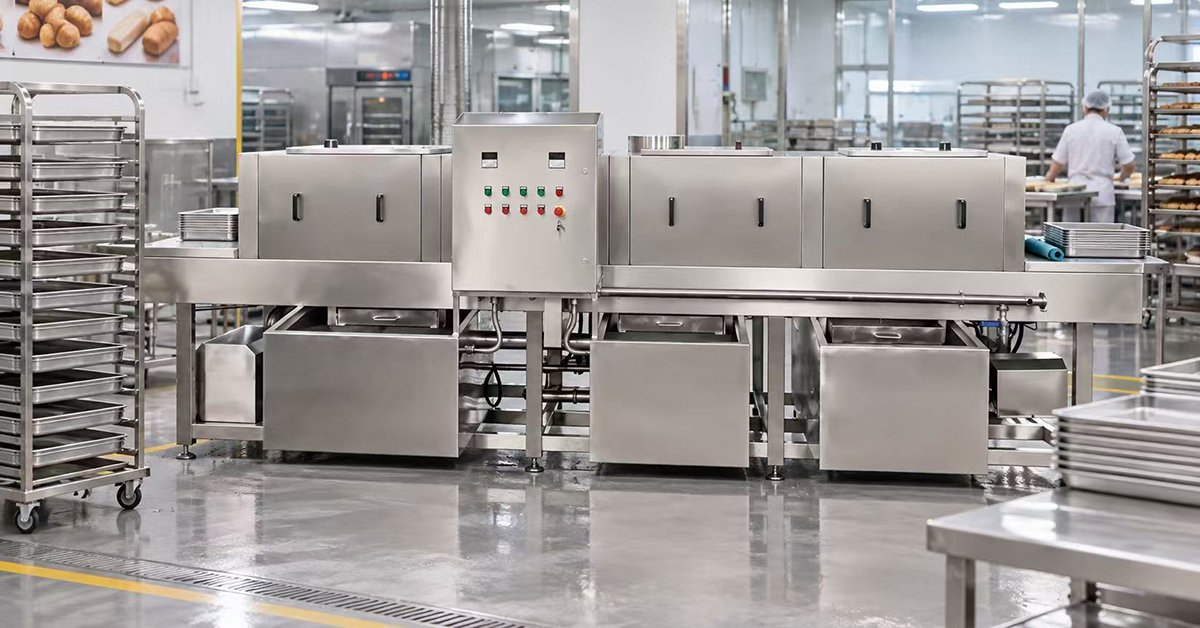

The highest-volume cleaning task in a bakery is the stackable container: trays, crates, boxes, pallets and egg trays. A tunnel machine washes them continuously on a dual-track conveyor through heated, high-pressure spray stages. Henger builds the HE-3600 and HE-4800 crate and tray washing machines in food-grade SUS304 stainless steel with a recirculating multi-tank water system and an optional air drying tunnel.

Two features matter in bakery work. The heated pre-wash stage at up to 95°C loosens sugar and fat residues before the main wash - something a cold rinse cannot do. The air drying tunnel is worth costing whenever containers go straight into packing or a chilled dispatch store. The published container envelope is up to 650 mm wide and 350 mm high, so non-standard moulds or large baking trays should be measured against it and discussed with our engineering team before selection.

Wash Zone 2 - Rack Carts from Ovens, Proofers and Blast Freezers

Rack-based production moves on wheeled carts: oven racks, proofer trolleys and freezer racks that carry product between hot and cold stages. After each thermal cycle these carts hold fat, sugar and baked-on deposits, and every wheel and shelf gap is a hygiene risk when cleaning is inconsistent. Henger’s SCW-580 rack cart washer is a chamber machine built for this class of equipment, using a 360-degree rotating frame with a multi-angle spray system so the cart is cleaned on all sides, shelves and undersides in a single cycle.

The hygienic detail is water separation: wash water is filtered and reused from a circulation tank, while the final rinse draws fresh water from a separate clean water tank, so the last water to touch the rack has not carried soil from the previous one. The chamber is sized for carts up to 1,000 x 1,000 x 2,000 mm, with a published scope covering rack carts and combi oven or blast chiller carts; bakery oven and freezer racks should be checked against your actual cart drawings.

Transition Zones - Entry Hygiene and Allergen Changeover

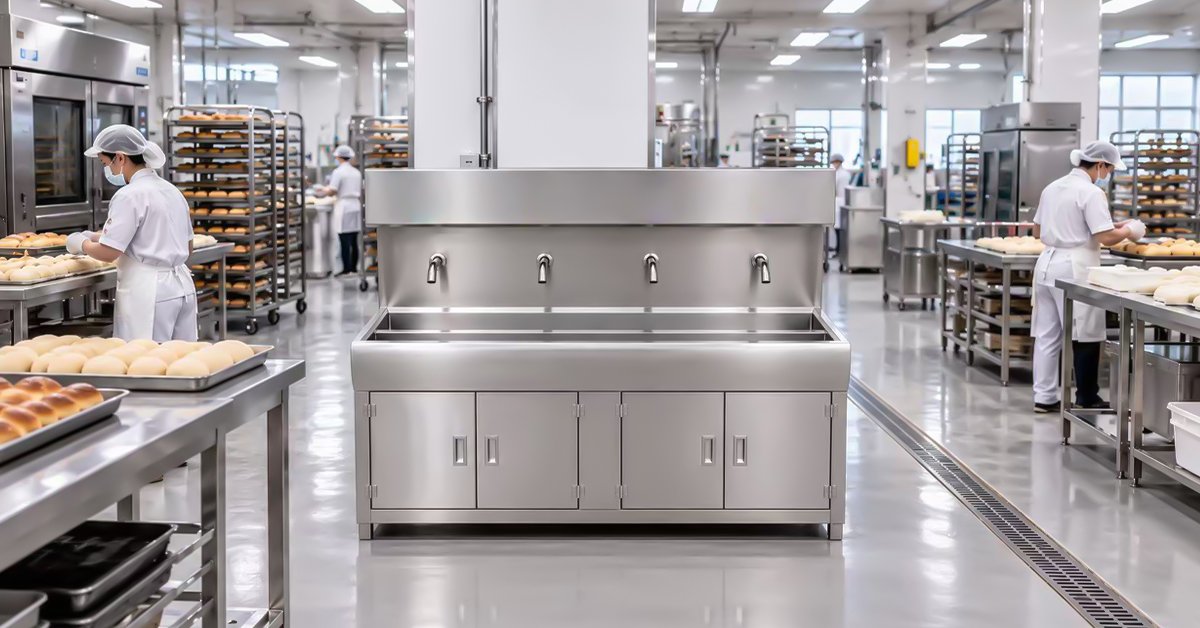

Every dry or wet zone starts at a doorway, and in a bakery those doorways carry flour dust on clothing and footwear. Henger’s stainless steel hand washing and disinfection station combines an induction faucet, soap dispenser, disinfectant dispenser and hand dryer in one 304 stainless steel unit, with one to five stations and a front-mounted soaking tank on select models - useful where hands have been in dough or filling.

Boots follow the same logic. The HE-HCDS19 compact tabletop boot washing machine is 1,200 x 620 x 920 mm in 304 stainless steel with 2.0 mm plate, starts automatically through photoelectric sensors, and cleans and disinfects both boot sides and soles with quick-release food-grade polyester brushes. Its compact footprint suits bakeries where the changing area shares space with production.

Lockers, shoe cabinets, drying racks and wash stations are normally specified together as a Complete Dressing Room Hygiene Solution, so the change-wash-disinfect sequence - and the allergen changeover discipline that depends on it - is built into the layout from the start.

Workwear in a Bakery

Bakery workwear takes a double load: flour dust on the outside, fats and fillings on the front. The apron washing machine is a 1,000 x 650 x 1,500 mm stainless steel cabinet driven entirely by water pressure with no electrical connection, automatic dosing of cleaning and disinfectant agents and a dual wash / disinfect mode selected by a single knob - so soiled aprons and white coats stay in the changing room instead of moving through production.

Wash Zone Surfaces - Floors, Walls and the Equipment Between Them

Ground flour becomes damp flour as soon as a floor is washed, which is why floor cleaning in a bakery is best handled as a defined task with proper drainage rather than as part of a general hose-down. In the wash zones themselves - tray wash rooms, drain channels, mixer exteriors and packaging areas - a central foam cleaning station consolidates high-pressure rinsing, foam cleaning, disinfectant application and compressed-air foam into one fixed workstation, with a 25 m sanitary hose, constant pressure control and intelligent timing.

The intelligent timing function suits bakery routines, which run in fixed blocks around production: pre-set cycles keep the procedure identical between shifts, which is what audit documentation requires.

Bins, Packaging Waste and Flour Bags

Bakeries generate packaging waste, film and empty ingredient bags rather than heavy organic waste, but the containers that carry it still return to the production area. Henger’s automatic tunnel-type trash can and bin washing machine handles 120L and 240L wheelie bins and large containers on a heavy-duty stainless steel conveyor chain, with a three-stage process - hot pre-wash with detergent, high-pressure recirculating main wash and a fresh water final rinse.

Planning Bakery Equipment by Zone

Bakeries rarely buy one machine at a time - they buy a wash room that has to serve tray loops, rack loops and workwear at once. Henger groups this equipment under a single Tools Washing Solution, so trays, crates, rack carts and bins are sized against each other rather than in isolation.

Bakery and Frozen Dough Plant Equipment Checklist

Use the table below as a first-pass specification list, then confirm container and cart dimensions and site utilities with our engineering team.

FAQ

Q1: Can a bakery wash trays and moulds in a crate washing machine?

Within limits. The tunnel is designed for rigid turnover containers - crates, baskets, trays, boxes, pallets and egg trays - up to 650 mm wide and 350 mm high, which covers many bakery trays, proofing baskets and stackable containers. Large baking trays, heavy moulds or anything outside that envelope should be measured against the machine opening and reviewed with our engineering team.

Q2: Why should dry zones not be washed with water?

Because flour dust and water form a paste that migrates into joints, housings and bearings where no brush can reach, and the resulting damp organic film supports microbial growth. Dry zones are best cleaned dry first - vacuum, scraping and dedicated tools - with water used only at defined points that have proper drainage.

Q3: How does allergen changeover affect equipment selection?

It makes container and utensil cleaning a control point rather than a chore: dedicated colour-coded container sets for allergen-sensitive lines where possible, plus a mechanical wash cycle that gives the same result every time instead of a rinse that varies by operator. The validation required depends on your food safety scheme and customer requirements - general guidance only, not a compliance statement.

Q4: Can oven and freezer rack carts be washed in the SCW-580?

The machine is sized for rack carts up to 1,000 x 1,000 x 2,000 mm, processes 20-30 carts per hour, and its published scope covers rack carts plus combi oven and blast chiller carts. Bakery oven racks, proofer trolleys and freezer racks should be checked against the chamber dimensions with your actual cart drawings before selection.

Q5: What about aprons and white coats?

Bakery workwear is loaded with flour dust on the outside and fats or fillings on the front, so it is worth having an on-site machine rather than an external laundry. The apron washing machine is driven by water pressure with no electrical connection, doses cleaning and disinfectant agents automatically, and offers a single-knob wash / disinfect selection - so it can sit in or beside the changing room.

Q6: What utilities and footprint should a bakery plan for?

As reference figures: the crate and tray washer occupies 3.6-4.8 m of line length by 1.7 m wide; the SCW-580 requires 26.5 kW total power and a plant steam connection for its heated circulation tank; the bin washer processes 120L/240L bins continuously on a conveyor; hand washing stations range from 550 x 380 mm to 2,400 x 550 mm; the HE-HCDS19 boot washer is 1,200 x 620 mm. Henger provides free layout drawings before purchase.

Closing Call to Action

Bakery hygiene is a zoning decision before it is an equipment decision. Keep water out of the dry zones, put heated high-pressure washing where sugar and fat actually are - trays, crates, rack carts, drains and bins - and treat every doorway between zones as part of the hygiene system.

If you are specifying hygiene equipment for a new bakery, pastry or frozen dough plant, or upgrading a tray and rack wash room, Henger’s engineering team can prepare a free layout drawing and quotation for the complete package. Inquire now through the contact form, email info3@hengerchina.com, or WhatsApp +86 188 5430 1052.
