Meat Trolley Washer Guide: Automating Cart Sanitation in Slaughterhouses and Meat Plants

Every shift, a meat plant moves dozens or hundreds of 200L trolleys between the kill floor, cutting rooms and cold stores — and brings them back carrying blood, fat, bone dust and, if cleaning was not thorough, the start of a biofilm.

Auditors who inspect meat plants know the trolley wash bay as one of the most inconsistent checkpoints on the floor. Not because operators do not try, but because manual trolley cleaning is physically demanding, hard to document and almost impossible to standardise across shifts and crews.

An automated meat trolley washer changes that equation: load, close the chamber, let rotating spray arms clean every surface, rinse, unload. This guide covers what drives plants to make the switch, how the machine works, and how to size it against daily trolley throughput.

The Cleaning Reality of 200L Meat Trolleys

Two properties of meat trolleys make them genuinely hard to clean well. First, geometry: a 200L trolley has wheel housings, a rolled rim, drainage holes and interior corners that a hand-held lance simply cannot reach reliably. Second, soiling: blood and fat solidify as the trolley cools, so a trolley left for a few hours before washing carries a hardened layer that a low-pressure rinse will not move.

In most plants the result is predictable: cleaning quality depends on the operator, output depends on staffing and shift length, and documentation is a tick box. Under a HACCP or GMP audit, the wash bay gets flagged for exactly this — no defined cycle, no measurable result, no record.

Automation addresses all three at once: a fixed cycle defines the process, repeatable parameters make the result measurable, and removing cleaning quality from operator skill makes it auditable.

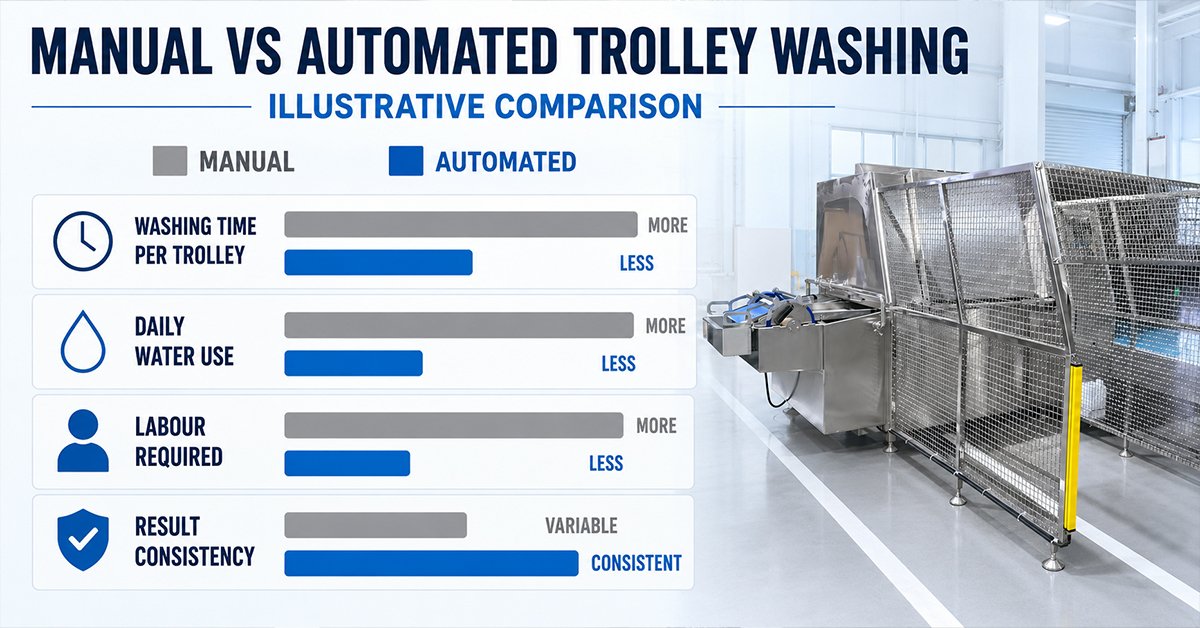

What Changes When Trolley Cleaning Is Automated

Moving from manual washing to an automated meat trolley washer is a process change, not just a machine purchase. In practice plants work through four phases:

Phase 1 — Baseline. Count the trolleys in circulation and their daily turnover; measure current cleaning time, water use and headcount at the wash bay. This baseline is what the automation is judged against.

Phase 2 — Sizing. Match cleaning capacity to measured throughput; because the washer runs unattended between loads, plan batch scheduling, not just peak rate.

Phase 3 — Integration. Confirm wash-bay layout, utilities and drainage before ordering — the machine is a fixed installation needing steam (where fitted), water, power and a floor drain.

Phase 4 — Verification. Run a commissioning period with known soil levels, confirm cleaning results and train operators on loading, chemical handling and the self-cleaning cycle.

Each phase is a negotiation between the production team and the engineering department, and each can be handled by the supplier's engineers as part of the project.

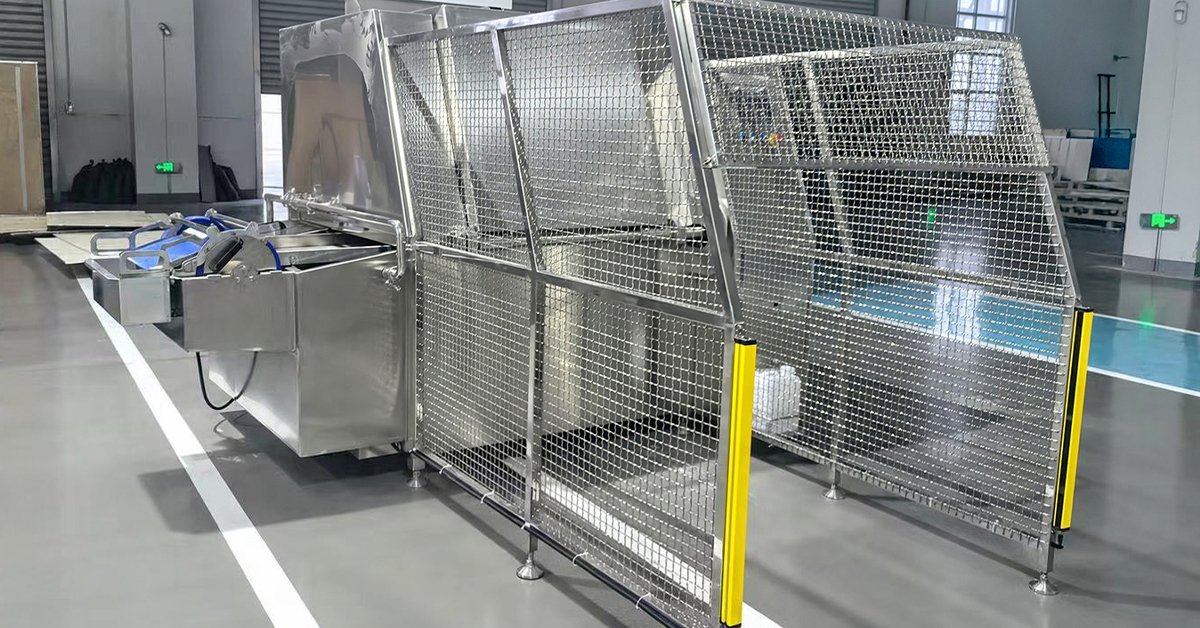

The machine at the centre of this process — the Henger meat trolley washer — is a fully automated, 304 stainless steel system built around a rotating spray arm and a closed-loop water recycling circuit, with capacity configured to the plant.

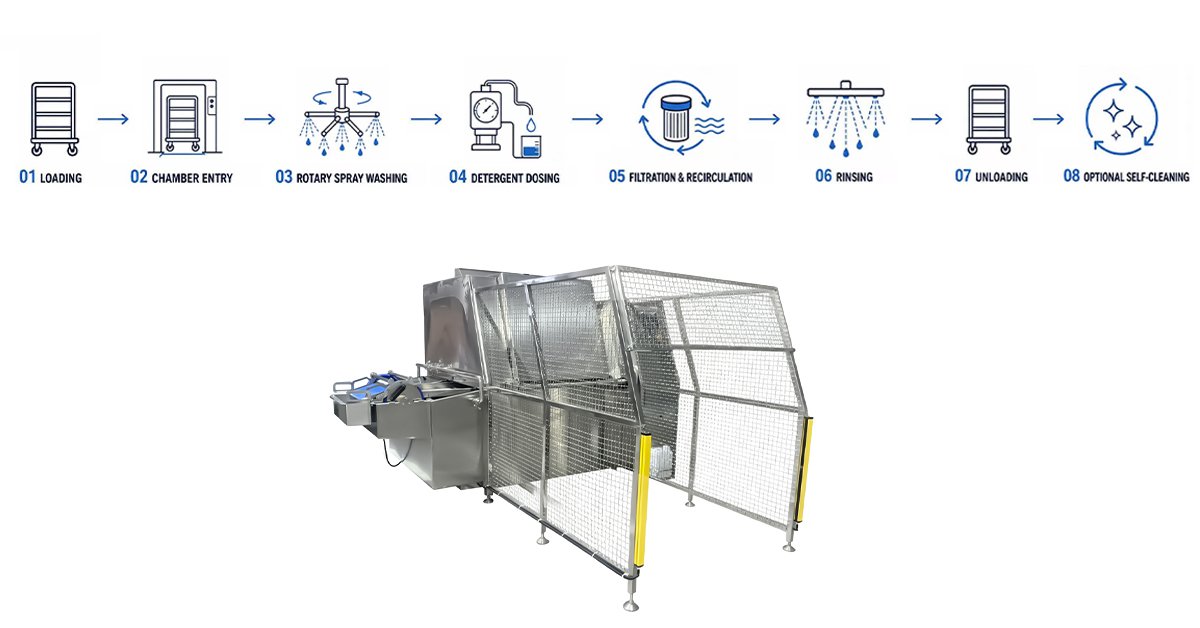

How the Automated Washing Cycle Works

The cleaning sequence follows eight steps:

• Loading — the operator positions the 200L meat trolley on the loading platform.

• Chamber entry — the trolley advances into the sealed washing chamber.

• Rotating spray wash — the rotating spray arm delivers high-pressure water across interior and exterior surfaces.

• Detergent dosing — the electronic dosing system injects a precise amount of cleaning agent into the wash cycle.

• Filtration and recirculation — wash water passes through the integrated filtration unit and recirculates for reuse.

• Rinsing — the trolley transfers to the rinsing chamber, where fresh water removes detergent and residue.

• Unloading — the cleaned trolley advances to the unloading station, ready for immediate reuse.

• Self-cleaning (optional) — the machine can run an internal self-clean cycle between production runs.

Two features matter specifically for meat plants: the rotating spray arm gives 360° coverage inside the trolley body and under the rim — the areas that fail most often under manual cleaning — and closed-loop filtration recycles wash water, with fresh water used only for the final rinse.

Meat Trolley Washer Technical Specifications

The table below lists the standard configuration of Henger's 200L meat trolley washing machine. Parameters are as published on the product page; custom configurations are available on request.

Sizing the Washer to Your Daily Throughput

Capacity is the first number a plant manager asks about, and the rated throughput is up to 60 carts per hour. Sizing, however, is rarely about the peak rate — it is about daily volume and how the wash bay is staffed.

As an illustration, take a plant turning over 300 trolleys across a 16-hour double shift. At up to 60 carts per hour, the machine can process the full daily volume in roughly five hours of operation, leaving the remaining time for staffed loading and unloading around shift patterns and for the self-cleaning cycle. A smaller operation with 120 trolleys per day might run the machine for only two hours.

The point is that the limiting resource changes: manual cleaning is constrained by labour and shift hours; an automated washer is constrained only by the loading and unloading rhythm around the machine.

Where the Washer Sits in the Plant Layout

Placement follows the flow of the trolleys, not the convenience of the building. The wash bay should sit between the point where dirty trolleys accumulate and the point where clean trolleys are stored, with a clear separation so washed and unwashed carts cannot be mixed.

Practical requirements include a level concrete base rated for an 800 kg machine plus a loaded trolley, a floor drain for the rinse discharge, steam (0.1 MPa), tap water (≥ 0.2 MPa) and power connections, and headroom for the 2,160 mm lifting station. Meat plants usually pair the wash bay with the wider hygiene flow — from the changing-room entry through the air shower room and boot washing machine to the production floor — so equipment selection at one checkpoint stays consistent with the logic of the others.

Cost Structure to Budget For

Automation projects are approved on cost structure, not on a single price tag. Four components deserve attention:

Equipment. As a factory-direct manufacturer, Henger prices the machine without distribution mark-ups; configuration options — capacity, pump packages, steam heating, control systems — are priced against the specification you choose.

Installation. Concrete base, utility connections (water, steam, power) and drainage. For an existing wash bay these are usually modest; for a new building they sit within the construction scope.

Operation. Water use drops because of the closed-loop recycling; chemicals are metered by the dosing system rather than mixed by hand; steam and electricity are consumed only during cycles. Running costs can be estimated from the specification table above.

Labour. Usually the largest line item being automated away. Because cleaning quality no longer depends on operator effort, the wash bay can be staffed at loading and unloading level rather than full-time scrubbing level.

Meat Trolley Washer FAQ

Q1. What size of cart can the machine handle? The standard model is designed for 200L standard meat trolleys with a maximum lifting height of 2,160 mm. Non-standard cart sizes can be accommodated through custom chamber and spray arm configurations.

Q2. How many carts can it clean per hour? Up to 60 carts per hour. Actual throughput depends on soil level and the selected cycle duration. For higher volumes, multi-unit installations or customised configurations can be discussed.

Q3. What if our plant does not have a steam supply? The standard configuration uses steam heating at 30 kW (0.1 MPa, about 100 kg/h). Alternative heating options can be discussed for facilities without a steam supply.

Q4. How does the water recycling system work? Wash water passes through an integrated filtration unit that removes debris and organic particles, then recirculates into the wash cycle. Fresh water is used only for the final rinse stage, reducing overall water consumption.

Q5. Is the machine safe to operate? Yes. A photoelectric safety system monitors the safety zones and automatically stops the machine if a person or object enters a protected area. Integrated guardrails and PLC automation further reduce manual intervention.

Q6. Does the machine clean itself? Yes. The built-in self-cleaning cycle flushes and sanitises the internal chambers, spray arms and filtration system after production runs, supporting consistent hygiene standards and extending equipment service life.

Automating the Trolley Wash Bay

The same sizing discipline that shaped our basket cleaning line case study in a Spanish vegetable processing plant applies to meat trolleys: start from the actual daily throughput and the current wash-bay bottleneck, then size the equipment to the process — not the other way round.

The Henger meat trolley washer converts the wash bay from a staffing problem into a scheduling problem, and it does it with a fully stainless steel, closed-loop, automated cycle that leaves an auditable trail.

Henger designs and manufactures the meat trolley washer in its own facility and offers factory-direct pricing. Send your floor plan, trolley dimensions and daily throughput to the engineering team, and you will receive a layout drawing and a customised configuration proposal.
