GMP Cleanroom Standards for Food Factories: A Complete Hygiene Design Guide

A mid-sized baked goods factory installed 304 stainless steel lockers in the changing room, placed a boot washer at the workshop entrance, and bought a hand washing sink. Three months later, their GMP recertification audit produced four major non-conformities: personnel flow crossed between raw material and finished product zones; the boot washer was positioned after the hand sink, meaning workers touched door handles with clean hands but contaminated boots; the air shower was missing entirely; and the foam cleaning station had no defined rinse-down schedule. Every piece of equipment they purchased met spec. The failure was in system design.

This scenario plays out in food factories across every category. The factory manager bought the right equipment but placed it in the wrong sequence, with the wrong zoning logic, and without the operational discipline that turns stainless steel into a GMP-compliant system. This guide explains what a GMP-compliant hygiene layout actually requires and how Henger helps you design it.

Why GMP-Grade Equipment Alone Cannot Pass a GMP Audit

GMP auditors do not inspect equipment in isolation. They inspect the flow of people, materials, air, and waste through your facility, and they ask whether each transition point has a defined control mechanism. A 304 stainless steel locker sitting in the wrong zone is a contamination risk, not a compliance asset. An air shower installed without a pressure differential between clean and non-clean sides is an expensive decoration.

Equipment is a component, not a system: GMP compliance is built from equipment plus layout plus procedure plus documentation. A factory that buys equipment without a zone map will fail an audit that a factory with fewer machines but a rigorous flow design can pass.

Sequence determines outcome: The order in which workers pass through boot washing, hand washing, and air shower stations determines whether decontamination is cumulative or self-defeating. Placing the hand wash station before the boot washer means workers recontaminate their hands on door handles after cleaning boots.

Cleaning without schedule is theatre: A foam cleaning station that runs only when someone remembers to use it provides no audit trail. GMP requires evidence that cleaning happened at defined intervals, with defined parameters, by trained personnel.

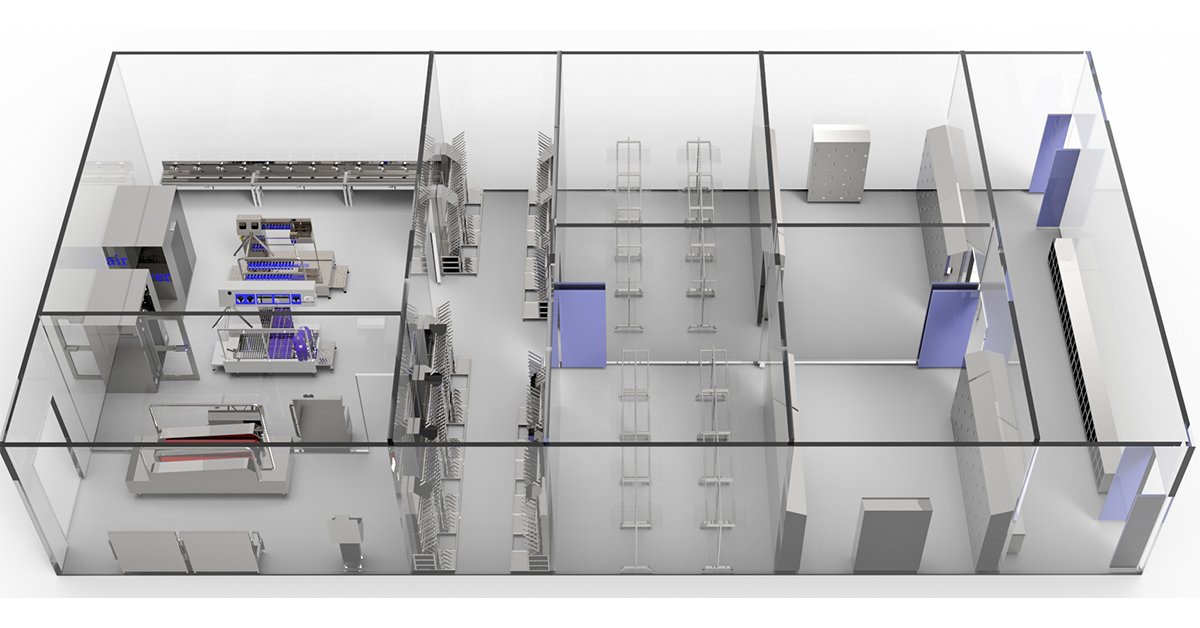

The Four GMP Hygiene Zones and What Each Requires

A GMP-compliant food factory divides its floor into hygiene zones, each with a defined purpose and a defined transition protocol. Equipment placement follows the zone, not the other way around.

Equipment selection starts with identifying which zones your facility needs and what control objective each zone serves. Only then do you specify the machines.

Designing the Personnel Entry Sequence

The personnel entry sequence is the most frequently audited transition in a GMP food factory. Every worker passes through it every shift, and every pass must produce the same decontamination outcome. The sequence must be designed so that each step builds on the previous one without creating recontamination paths.

1. Dressing Room: Storage That Prevents Cross-Contamination

The dressing room is where workers leave street clothes, personal items, and outdoor footwear. The 304 stainless steel locker provides corrosion-resistant storage with a sloped top that prevents dust accumulation and a non-particle-shedding surface that meets GMP hygiene requirements. The seated shoe cabinet allows workers to change footwear while seated, preventing the cross-contamination that occurs when workers balance on one foot at an open bench. The boot drying rack ensures that cleaned boots dry completely between shifts, denying bacteria the moisture they need to multiply overnight.

Layout principle: Lockers and shoe cabinets must be positioned so that the street-clothing side and the workwear side do not share airflow. A simple physical partition between the two sides prevents particulate transfer from contaminated clothing into the clean corridor.

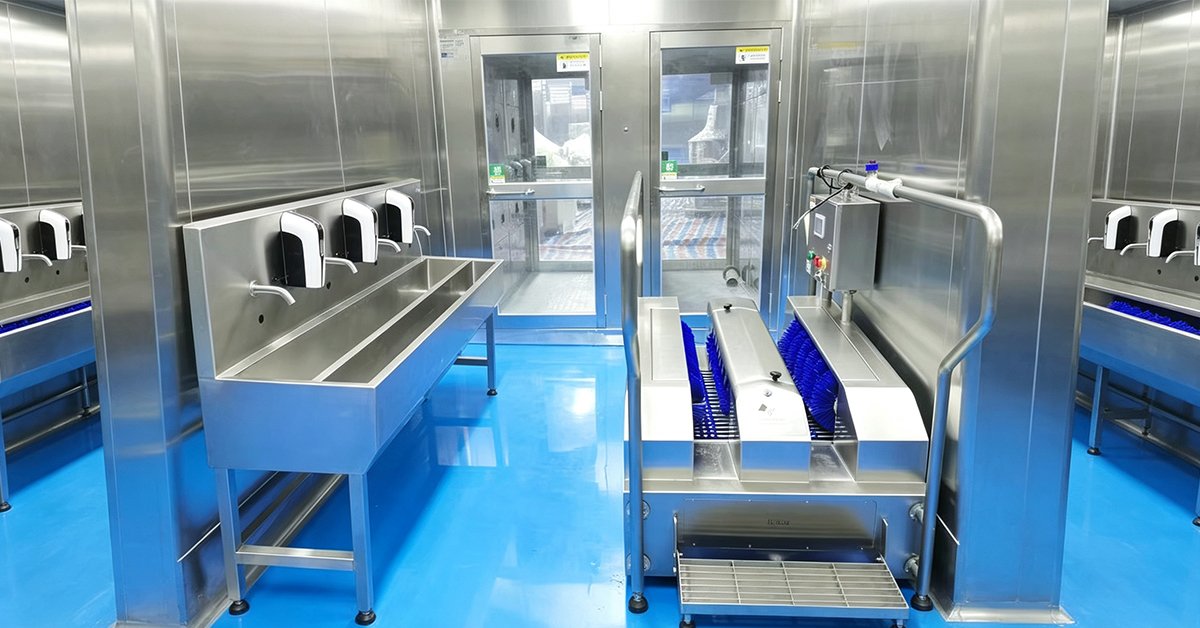

2. Boot Decontamination: The Critical Transition

After changing, workers enter the decontamination zone. The boot washing machine uses photoelectric sensors to activate automatic brushes that clean boot sides and soles simultaneously, followed by a hand washing and disinfection sequence. The machine's access control gate remains locked until the full sanitation cycle is complete, meaning no worker can skip a step and enter production.

With 23 models across five categories, the boot washing machine scales from a full-feature station handling high-traffic main entrances (HE-HCDS01, 7.5 kW, 2450 mm length) to compact wall-mounted units for secondary access points (HE-HCDS23, 550 mm width). The 304 stainless steel construction with 2.0 mm plate thickness withstands humid, high-moisture environments without corrosion.

Sequence rule: Boot washing must come before hand washing in the physical layout. Workers clean boots first, then move to the hand washing station, then proceed to the air shower. This order prevents workers from touching contaminated boot areas with clean hands after hand washing.

3. Air Shower: The Final Particulate Barrier

The air shower is the last decontamination step before personnel enter the production floor. High-velocity clean air ejected through adjustable nozzles dislodges and removes dust particles from clothing and footwear. The two-stage filtration system (pre-filter plus HEPA filter) ensures that the air contacting the worker is cleaner than the ambient environment. Interlocking doors prevent simultaneous opening of entry and exit doors, maintaining the pressure differential between zones.

For facilities requiring touchless operation, infrared induction models activate automatically when a person enters, eliminating contact contamination from button presses. Three-sided nozzle coverage ensures comprehensive full-body particle removal, and the digital display allows configurable shower duration to match different hygiene protocols.

Production Environment Sanitation Design

Once inside the production floor, GMP compliance shifts from personnel control to environmental sanitation. Surfaces, equipment exteriors, walls, and floors must be cleaned at defined intervals with defined parameters and documented results.

Central Foam Cleaning Station

The central foam cleaning station provides a fixed sanitation hub that delivers foam, rinse, and disinfectant to multiple cleaning points across the production floor through a piped distribution system. Instead of manually mixing cleaning solution at each station, operators connect hoses to designated outlets and apply pre-mixed foam at consistent concentration and pressure. This standardizes the cleaning outcome across the entire production area.

The station is compatible with the food-grade cleaning agents you source from your preferred supplier, and dosing settings are calibrated during commissioning to match your chemical specifications. The foam adheres to vertical surfaces for the required contact time, then is rinsed with clean water at controlled pressure.

Portable High Pressure Foam Cleaner

For areas beyond the reach of the central station or for facilities with smaller floor plans, the portable high pressure foam cleaner delivers the same foam-and-rinse function in a mobile unit. Operators move the unit to the cleaning point, connect to a water supply, and apply foam at controlled pressure. This is particularly useful for cleaning equipment exteriors, floor drains, and hard-to-reach corners that fixed stations cannot cover.

Scheduling principle: GMP requires that cleaning happens at defined intervals, not when someone remembers. A documented cleaning schedule specifying which surfaces are cleaned, at what frequency, with what parameters, and signed off by whom is what turns equipment into a compliance system.

What Henger Delivers: A GMP Site Hygiene Solution

When you engage Henger for a GMP compliance project, you receive more than a delivery of equipment. You receive a site-specific hygiene solution designed around your facility layout, your product category, and your audit requirements.

1. Site Assessment and Zone Mapping

Henger engineers visit your facility to assess the current layout, identify zone boundaries, and map personnel and material flow paths. The output is a zone map that defines where dressing room, decontamination, production, and waste transition zones should be located and what equipment each zone requires. This map becomes the foundation for equipment specification and placement.

2. Equipment Selection and Placement

Based on the zone map, Henger specifies which equipment model fits each location. The selection considers foot traffic volume, space constraints, and the control objective of each zone. For example, a main entrance handling 120 workers per shift requires a Category A or B boot washing station, while a secondary entrance serving 15 workers may need only a Category D compact unit. Placement drawings show exactly where each machine sits relative to walls, doors, and flow paths.

3. Installation and Commissioning

Henger's installation team positions each machine, connects utilities (water, drainage, power), and runs commissioning cycles to verify that sensors, brushes, pumps, and dosing modules perform to specification. For foam cleaning stations, the dosing system is calibrated during commissioning to match the food-grade cleaning agents you have selected from your preferred supplier, ensuring consistent concentration at every outlet.

4. SOP Development and Operator Training

Equipment without a standard operating procedure is just stainless steel. Henger provides SOP templates for each equipment type, covering startup, daily operation, cleaning parameters, shutdown, and emergency procedures. On-site operator training ensures that every worker who touches the equipment knows the correct sequence, the required contact times, and the documentation requirements. Training records are provided for your audit file.

Case Study: A Mid-Sized Food Factory's GMP Upgrade

A mid-sized food factory producing ready-to-eat meals for retail distribution faced GMP recertification with three recurring non-conformities from their previous audit: personnel flow crossed between raw material receiving and packaging areas, the boot washing station had no access control and workers routinely skipped steps, and there was no documented cleaning schedule for the production floor.

Henger's site assessment identified the root cause: equipment had been purchased incrementally over five years without a unified zone plan. The solution involved three changes. First, the dressing room was repositioned to create a dedicated decontamination corridor, with lockers and shoe cabinets on the street-clothing side and a physical partition leading to the clean side. Second, a Category B boot washing machine with access control was installed at the corridor entry, replacing the old open wash station that workers could bypass. Third, a central foam cleaning station was installed on the production floor with a documented cleaning schedule specifying foam application, contact time, and rinse parameters for each surface type.

Result: At the follow-up audit three months later, all three non-conformities were closed. The auditor noted that the personnel entry sequence, the access control gate, and the cleaning schedule documentation were the key evidence of compliance. The total equipment investment was less than the cost of a single product recall incident.

GMP Equipment Selection Quick Reference

Daily Operation and Maintenance Tips

GMP compliance is maintained shift by shift. The following practices keep your hygiene system audit-ready:

• Daily check: Confirm boot washing machine sensors activate at the start of each shift; verify that the access control gate remains locked until cycle completion.

• Daily check: Run the air shower cycle and confirm that both doors do not open simultaneously; check that the HEPA filter differential pressure gauge reads within the specified range.

• Daily check: Verify that the foam cleaning station delivers foam at the correct concentration and pressure; document the check in the cleaning log with time and operator initials.

• Weekly: Inspect boot washing machine brushes for wear; replace using the quick-release mechanism without tools. Record the replacement date in the maintenance log.

• Weekly: Clean the air shower pre-filter; check HEPA filter condition and schedule replacement if the differential pressure exceeds the specified threshold.

• Monthly: Flush the central foam cleaning station distribution lines to prevent chemical buildup; inspect hoses and nozzles for blockage.

• Monthly: Review all cleaning logs and maintenance records for completeness; ensure that any gaps are documented with corrective action notes.

GMP-Related Frequently Asked Questions

Q1. What is the difference between GMP and HACCP in terms of equipment requirements? HACCP focuses on identifying and controlling hazards at specific critical control points in the production process. GMP focuses on the facility conditions, personnel hygiene, and environmental controls that make the entire production environment safe. Equipment serves both: the boot washing machine is a GMP personnel hygiene control and also supports HACCP by preventing cross-contamination at CCPs.

Q2. Do we need an air shower if we already have a boot washing machine? They serve different purposes. The boot washing machine removes physical contaminants from footwear. The air shower removes particulate matter from clothing and body surfaces using HEPA-filtered high-velocity air. For GMP facilities with particulate control requirements, both are needed in sequence.

Q3. How is the foam cleaning station dosing calibrated? The dosing system is calibrated during commissioning to match the chemical specification of the food-grade cleaning agents you select from your preferred supplier, ensuring consistent concentration at every outlet regardless of which point is in use.

Q4. Can existing equipment be integrated into a new GMP layout? Yes. Henger's site assessment includes an evaluation of your existing equipment. If current machines meet GMP material and performance requirements, they can be repositioned within the new zone layout. The assessment identifies which existing equipment can be retained and which needs replacement.

Q5. What documentation does Henger provide for GMP audit files? Equipment specifications, material certificates (304 stainless steel compliance), installation and commissioning reports, SOP templates, operator training records, and maintenance schedule templates. These documents form the equipment-side evidence that auditors look for when verifying that your hygiene system is designed, installed, and operated to standard.

If your factory is preparing for a GMP audit or has received non-conformities related to facility layout, personnel hygiene, or environmental sanitation, Henger's engineering team can assess your site and design a hygiene solution that addresses the specific gaps in your audit findings. Contact us to schedule a site assessment.

Visit Henger Technology to Request a GMP Site Hygiene Assessment
