Foam Cleaning Machine vs Central Foam Cleaning Station: A Food Plant Guide

In a food processing facility, workshop sanitation is not a single event at the end of the shift — it is a continuous discipline that runs alongside production. Every hour of operation deposits fats, proteins, blood, organic residue, and microorganism colonies on equipment surfaces, floors, walls, and drainage channels. Left unchecked, that accumulation becomes the substrate for Listeria, Salmonella, and a range of pathogens that no downstream food safety control can reliably correct. The answer, for facilities operating under HACCP, GMP, or customer food safety codes, is a foam cleaning system that can apply detergent effectively across large, complex surface areas and then rinse them to a verifiable standard.

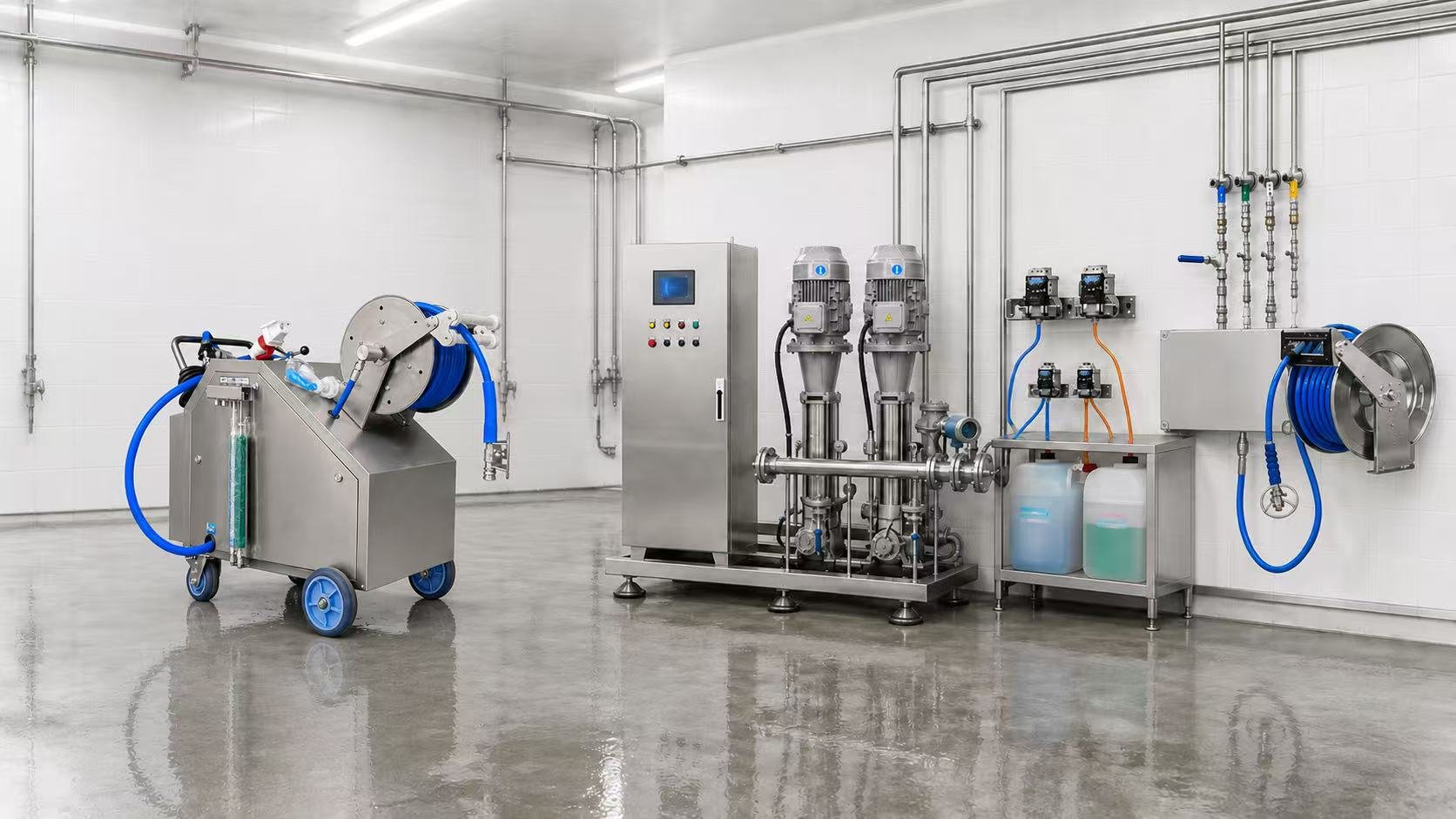

Two fundamentally different approaches exist for delivering that system: a portable foam cleaning machine (also called a high-pressure foam cleaner) and a fixed central foam cleaning station with distribution pipework to multiple outlets. Both use foam chemistry to the same effect — they produce a clinging foam that extends dwell time on contaminated surfaces — but the way they are deployed, maintained, and scaled differs in ways that have direct implications for cost, throughput, and audit readiness. This guide sets out those differences clearly so that procurement managers, plant engineers, and food safety teams can make a specification decision grounded in operational reality.

What the Two Systems Have in Common

Before comparing them, it is worth understanding what both systems share, because the shared foundation defines the cleaning outcome and makes the choice between them a question of deployment rather than efficacy.

Both foam cleaning machines and central foam cleaning stations use a pressurized mixing unit to combine water, air, and liquid detergent in proportions that produce a dense, stable foam. That foam is applied to surfaces at a controlled flow rate, coats vertical surfaces and overhead structures without running off immediately, and is left to dwell for a defined period before rinsing. The dwell time is where the chemistry does its work — detergent penetrates organic residue, breaks down fat deposits, and disrupts biofilm structures.

Both system types can be configured with 304 stainless steel contact surfaces and housings, making them compatible with the washdown conditions in food environments. Both can be used with a range of approved food-grade cleaning chemicals, and both deliver cleaning outcomes that are documentable for audit purposes if operating procedures are written and followed.

The difference lies entirely in infrastructure: one system is portable and self-contained, the other is built into the building.

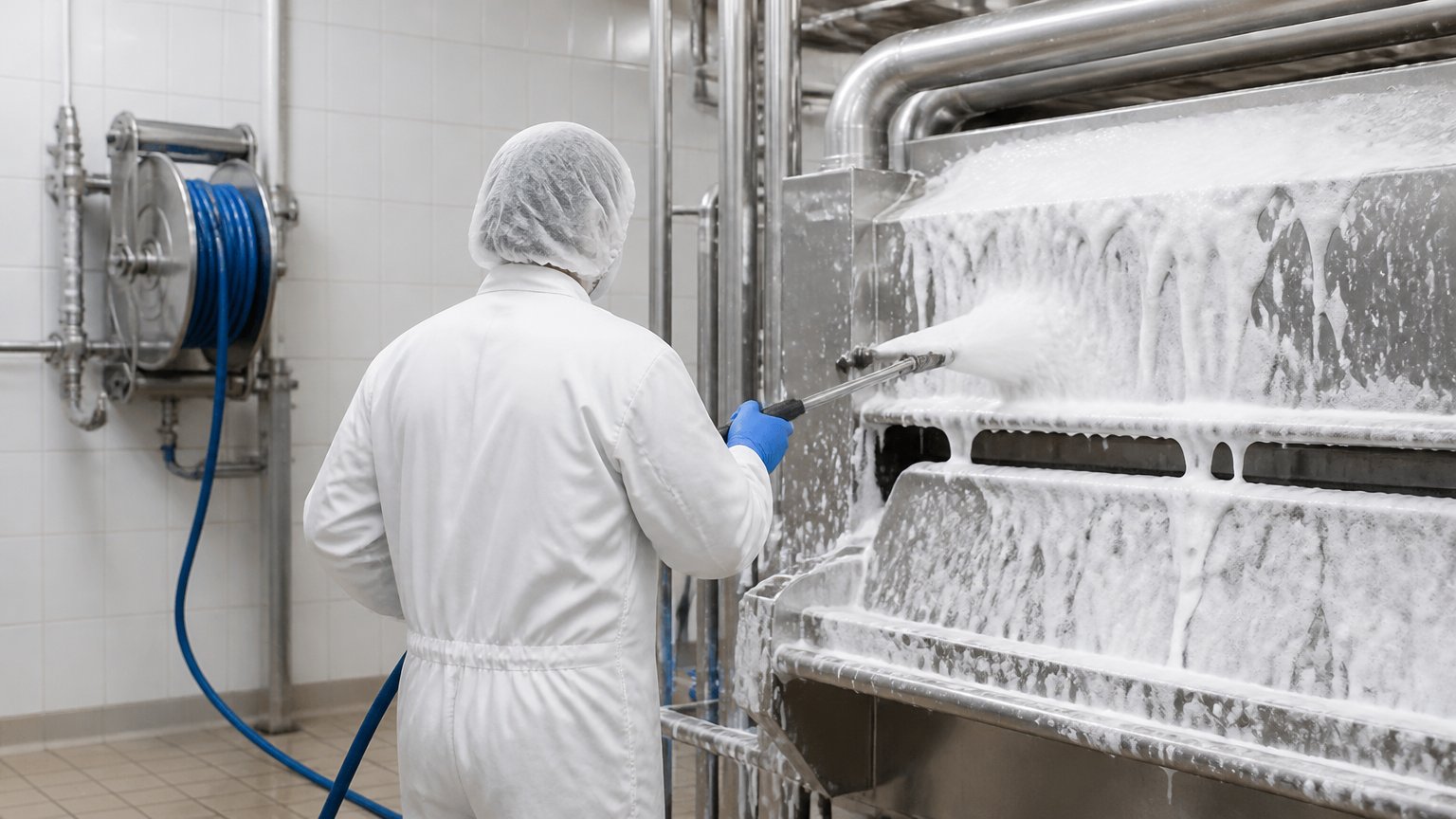

Foam Cleaning Machine: The Portable Approach

A foam cleaning machine — Henger's portable model is a high-pressure unit typically mounted on a wheeled frame or designed for manual carry — contains its own water connection point, chemical dosing tank, and foam-generation unit. The operator connects a water supply hose, fills the onboard chemical reservoir, and directs the foam lance at the surfaces to be cleaned.

What it does well:

• Flexibility across zones. A single unit can move between the slaughter floor, the carcass chillers, the processing area, and the packaging line within a single shift. No installation work is required to add a new cleaning zone.

• Low capital cost. Without the need for pipework, wall penetrations, or outlet points, the initial outlay is confined to the unit itself and its accessories.

• Fast deployment. In new plants or retrofit situations, a foam cleaning machine can be operational within hours. There is no commissioning of distribution infrastructure.

• Targeted application. For spot cleaning between production runs, or for zones that require infrequent deep cleaning, a portable unit provides exactly the coverage needed without energizing a full fixed system.

Where it has limitations:

• Operator dependency. Coverage is determined by where the operator points the lance. In large facilities, consistent coverage of all surfaces across an entire shift requires disciplined procedure and supervision.

• Chemical management. Each unit must be filled, monitored, and drained individually. In multi-zone facilities, this multiplies the chemical handling burden.

• Throughput ceiling. A single portable unit has a finite cleaning rate. In a large facility with a tight sanitation window between shifts, the portable approach may not cover the required surface area within the available time.

Central Foam Cleaning Station: The Integrated Approach

A central foam cleaning station is a fixed unit — mounted on a wall or structural column in a central location — that connects to the facility's water supply and delivers premixed foam to multiple outlet points through a network of sanitary pipework. Operators at each outlet point connect a hose and lance to access the system; the mixing and dosing happen centrally, not at the point of application.

What it does well:

• Consistent chemical dosing. Because mixing is centralized and controlled, every outlet delivers foam at the same concentration. Operator-to-operator variation in chemical dilution is eliminated.

• Multiple simultaneous users. Depending on system capacity and outlet count, several operators can clean different zones at the same time, dramatically shortening the sanitation window.

• Reduced chemical handling at the point of use. Operators work with the foam lance only — they do not handle liquid concentrates. Chemical drums are managed at the central station, which can be sited for safe and efficient bulk replenishment.

• Audit trail. A fixed system with documented outlet locations, defined cleaning zones, and a central dosing unit provides a physical infrastructure that supports written sanitation procedures. Auditors can verify that the system exists and is functional, not just that a procedure is written.

• Scalability. Adding an outlet point to an existing distribution network is a plumbing task; it does not require a new piece of capital equipment.

Where it has limitations:

• Higher installation cost. Pipework, outlet fittings, wall penetrations, and commissioning add to the capital cost beyond the station unit itself. The investment scales with the number of outlets and the complexity of the building layout.

• Less flexibility for new zones. Moving a cleaning zone means moving an outlet point, which involves plumbing work. For facilities with frequently changing layouts, this can be a constraint.

• Maintenance of distribution infrastructure. The pipework and fittings require periodic inspection and cleaning. In facilities using aggressive disinfectants, material compatibility must be verified for the full distribution system, not just the station unit.

Side-by-Side Comparison

Choosing Between the Two: Four Decision Factors

The comparison table above gives the directional answer for most facilities. Four factors refine the decision further.

1. Plant size and sanitation window. The critical variable is how much surface area must be cleaned in how much time. In a large slaughterhouse or dairy plant with a fixed two-hour sanitation window between shifts, a portable approach that requires sequential zone coverage may simply not be fast enough. A central station with multiple simultaneous outlets is the engineering solution to a throughput constraint, not just a convenience.

2. Regulatory and audit environment. Facilities operating under third-party certification schemes — BRC, IFS, SQF, or customer-specific codes — face increasing scrutiny of the sanitation infrastructure itself, not just the written procedure. A fixed system with defined outlet locations, documented zones, and a controlled dosing unit provides an audit-ready infrastructure that a portable system, however well-managed, cannot fully replicate.

3. Capital budget vs operating cost. The portable approach has a lower initial cost but higher ongoing operational burden: individual unit maintenance, per-unit chemical management, and the labor cost of sequential cleaning. The central station has a higher installation cost but lower per-clean operational complexity, particularly as the facility scales. For a plant planning a 10-year horizon, the total cost of ownership calculation often favors the fixed system.

4. Layout stability. If the production layout is stable and zones are well-defined, fixed outlet points are not a constraint — they are an asset. If the facility frequently reconfigures production lines or expands into new areas, the flexibility of a portable unit (or a hybrid approach) may be worth the operational trade-offs.

A Hybrid Approach: When Both Systems Have a Role

Many food facilities benefit from operating both system types simultaneously. A central foam cleaning station handles the primary production zones — the slaughter floor, processing lines, and chillers — where consistent, high-throughput sanitation is the priority. Portable foam cleaning machines handle ancillary areas: maintenance workshops, loading docks, waste handling zones, and external hardstanding. The two systems use compatible chemistry and the same operator training, so the hybrid approach does not add procedural complexity.

For a complete view of how these systems integrate with each other and with other workshop sanitation equipment, see the Workshop Integrated Foam Cleaning System solution page, which covers zone mapping, chemical management, and the full sanitation sequence for food processing workshops.

FAQ

What is a foam cleaning machine used for in a food factory?

It applies a clinging detergent foam to equipment surfaces, floors, walls, and drains to break down organic residue, fat deposits, and biofilm. The foam extends chemical dwell time compared to a direct water spray, improving cleaning efficacy on complex surface geometries.

What is the difference between a foam cleaning machine and a pressure washer?

A pressure washer delivers water at high pressure to physically remove surface debris. A foam cleaning machine delivers a mixture of water, air, and detergent as a clinging foam that dwells on surfaces for chemical action. The two approaches are complementary: foam cleaning is typically applied first to loosen and dissolve contamination, followed by a high-pressure rinse.

How many outlet points does a central foam cleaning station support?

This depends on system capacity, water supply pressure, and distribution pipe diameter. Central stations are configured to match the outlet count and simultaneous user requirement of each facility; confirm the specification with the supplier based on your zone count and expected simultaneous users.

Can a foam cleaning machine and a central station use the same cleaning chemicals?

Yes. Both system types are compatible with a range of food-grade alkaline cleaners and acid cleaners used in the standard two-stage cleaning cycle. Chemical selection depends on the surface types and contamination load, not on the delivery system.

What maintenance does a central foam cleaning station require?

Routine maintenance includes chemical dosing unit inspection and calibration, pipework and fitting checks for integrity, and periodic cleaning of the distribution system. The manufacturer can provide a recommended maintenance schedule; in regulated environments, maintenance records support the audit trail.

Is a foam cleaning machine suitable for small food businesses?

Yes. For small plants, a single portable foam cleaning machine is a practical, cost-effective entry point for foam-based sanitation. As the facility grows, a central station can be added without removing the portable unit — the two systems are not mutually exclusive.

Conclusion: Match the System to the Operational Reality

The foam cleaning machine and the central foam cleaning station solve the same problem — delivering effective, auditable foam sanitation in a food processing environment — but they solve it at different scales and with different infrastructure implications. For small and medium plants, or for facilities with variable layouts and spot-cleaning needs, the portable machine is the right starting point. For large plants with fixed production zones, regulated environments, or tight sanitation windows that require parallel operation, the central station is the appropriate investment.

Henger supplies both foam cleaning machines and central foam cleaning stations in stainless steel construction, with factory-direct engineering support for system configuration and outlet planning. Whether you are specifying a single unit or designing a complete workshop sanitation infrastructure, our team can help you match the right system to your plant's operational reality.

Inquire Now to request a quote or discuss system configuration with our engineering team.
