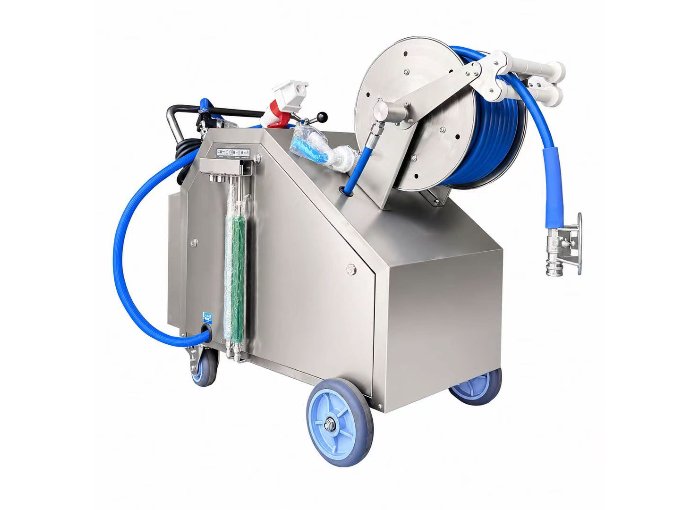

The Foam Cleaning Machine is a versatile sanitation system engineered for food processing workshops, combining high-pressure water rinsing, foam cleaning, and spray disinfection in one compact unit. It delivers professional-grade cleaning performance with flexible deployment — designed for workshops that require efficient, reliable hygiene without the infrastructure of a centralized system.
The series includes four models for different operational scales:
· HE-FS01 — Mobile high-pressure unit with built-in air compressor and plunger pump; fully standalone, up to 80 Bar; ideal for large plants
· HE-FS04 — Fixed professional station with precision proportional valves; connects to facility air and water supplies; ideal for large-scale plants with centralized infrastructure
· HE-FS02 / HE-FS03 — Compact mobile pneumatic units; requires external air supply; ideal for smaller workshops
Highlight | Description |
Three-in-One Functionality | One-click switch: high-pressure water rinse / foam cleaning / spray disinfection |
German Valve Technology | Imported valve body for reliable, long-lasting performance |
Built-in Air Compressor (HE-FS01) | Silent oil-free compressor — no external air supply needed |
Precision Proportional Valve (HE-FS04) | Imported proportional plug for accurate chemical dosing — use concentrated solution directly |
Auto Dosing System | HE-FS01 & HE-FS04: automatic proportioning, no manual dilution required |
80% Water Savings | Flow-sensing auto-control reduces water consumption by 80% vs. conventional rinsing |
25m Food-Grade Hose | Extended reach for large workshop areas |
SUS304 Stainless Steel | Full 304 stainless steel construction |
Parameter | HE-FS01 | HE-FS04 | HE-FS02 | HE-FS03 |
Type | Mobile High-Pressure | Fixed Station | Mobile Pneumatic | Mobile Pneumatic |
Power Supply | 380V / 3 kW | 380V / 4 kW | External Air Supply | External Air Supply |
Max Pressure | 80 Bar | 30 Bar | 0.8 MPa | 0.8 MPa |
Air Supply | Built-in Compressor | External 4–6 Bar | External Compressor | External Compressor |
Hose Length | 25 m | 25 m | 15 m | 15 m |
Chemical Tank | 5 L (auto dosing) | 5 L (auto dosing) | 60 L (manual 1:3) | 70 L (manual 1:3) |
Foam Coverage | 2,500–3,000 m² | 2,500–3,000 m² | 1,000–2,000 m² | 1,000–2,000 m² |
Dosing Mode | Auto (proportional plug) | Auto (proportional plug) | Manual (pre-mixed) | Manual (pre-mixed) |
Material | SUS304 | SUS304 | SUS304 + Plastic Tank | SUS304 |
Dimensions (mm) | 1,240 × 640 × 1,050 | 1,000 × 600 × 1,600 | 600 × 450 × 1,090 | 600 × 450 × 1,090 |
Weight | 172.5 kg | ~150 kg | 20.5 kg | 28 kg |
Best For | Large plants, standalone | Large plants, fixed | Small workshops | Small workshops |
Operator activates the cleaning unit
↓
Select cleaning mode: High-Pressure Water / Foam / Disinfectant
↓
Water supply enters through inlet (HE-FS01: plunger pump pressurizes to 50–80 Bar;
HE-FS04: external water supply at 25–30 Bar)
↓
German-technology valve body regulates flow and switches media
↓
Proportional plug auto-doses concentrated chemical (foam plug: 1.0 mm /
disinfectant plug: 0.6 mm) — no manual dilution needed
↓
Built-in air compressor (HE-FS01) or external air supply (HE-FS04)
generates dense foam / fine disinfectant mist
↓
25m food-grade hose delivers media to target surface
↓
Flow-sensing auto-control activates pump on demand, stops when idle
↓
Cleaning complete — hose retracts, unit stands by for next cycle
Application | Suitable For |
Equipment Surface Cleaning | High-pressure rinse — production lines, conveyors, cutting tables, mixers |
Foam Degreasing | Thick foam coverage — processing vats, tanks, smoking chambers, fryers |
Disinfectant Spraying | Even fine mist — walls, floors, ceiling structures, drain channels |
Post-Cleaning Rinse | Clean water flush after foam/detergent application |
Workshop Area Sanitation | Long-reach hose — meat processing, dairy, beverage, prepared food facilities |
Cold Room Cleaning | Low-temperature compatible foam application — walk-in coolers, freezing tunnels |
What is the difference between HE-FS01 and HE-FS04?
HE-FS01 is a mobile standalone unit with a built-in air compressor and high-pressure plunger pump (up to 80 Bar) — requires no external air or elevated water pressure. HE-FS04 is a fixed station connecting to existing facility air (4–6 Bar) and water supplies, featuring precision proportional valves for exact chemical dosing.
Does the machine require pre-mixed chemicals?
HE-FS01 and HE-FS04 use automatic dosing — fill the 5 L tank with concentrated solution and the machine proportions the correct dilution automatically. HE-FS02 and HE-FS03 require pre-mixed solution at a 1:3 ratio.
How large an area can one chemical tank cover?
The 5 L concentrated tank on HE-FS01/HE-FS04 covers approximately 2,500–3,000 m² with foam agent; over 10,000 m³ with disinfectant. HE-FS02/03 (60–70 L pre-mixed) cover approximately 1,000–2,000 m².
Can cleaning modes be switched during operation?
Yes. All models support one-click switching between high-pressure water rinse, foam cleaning, and spray disinfection via the control valve — no shutdown or equipment change needed.
What safety features are included?
HE-FS01 and HE-FS04 feature water-electricity separation, multi-layer leakage protection, and emergency stop switches. HE-FS01 also includes a variable frequency drive for stable operation under power fluctuations.
