Crate Washing Machine Process Engineering and Maintenance: Maximizing Throughput in Food Container Sanitation

July 23, 2026 | Equipment Maintenance | Henger technology

In food processing facilities, turnover crates, baskets, and trays circulate between raw material handling, processing, and packaging zones hundreds of times per day. Each cycle accumulates organic residues — blood, fat, soil, protein deposits — that harbor bacteria and compromise product safety. An industrial crate washing machine addresses this challenge through engineered multi-stage cleaning, but the difference between a system that runs reliably at 800 crates per hour and one that requires weekly intervention lies in process design and maintenance discipline.

This guide examines the process engineering behind Henger Technology's HE-3600 and HE-4800 crate washing machines, detailing how each cleaning stage contributes to sanitization outcomes, how the recirculating water system reduces operating costs, and what maintenance protocols sustain peak throughput over years of continuous operation. For food safety managers and plant engineers evaluating crate sanitation systems, understanding these engineering details supports more informed equipment selection and long-term operational planning.

Factory Operation Core Pain Points

Plastic crates and baskets are indispensable in meat, poultry, seafood, and produce facilities, yet their cleaning presents several recurring operational challenges:

• Cross-contamination risk: Crates moving from raw material zones to finished product areas carry bacterial loads if inadequately washed, creating HACCP critical control point failures.

• Labor-intensive manual washing: Hand-scrubbing hundreds of crates per shift requires significant workforce allocation and produces inconsistent results — some crates pass inspection while others retain visible residue.

• Water and energy waste: Manual or single-stage washing consumes substantially more water per crate than engineered multi-stage systems with recirculation, increasing utility costs and wastewater treatment loads.

• Throughput bottlenecks: When crate washing cannot keep pace with production line output, clean container shortages force line stoppages or compel workers to reuse insufficiently cleaned crates.

• Equipment downtime: Pump failures, nozzle blockages, and conveyor jams from inadequate maintenance disrupt cleaning schedules and cascade into production delays.

• Compliance documentation: Auditors increasingly require temperature logs, cleaning validation records, and equipment maintenance histories — manual processes cannot generate this data automatically.

These pain points compound in high-volume operations. A facility processing 500 crates per hour cannot afford a washing system that requires hourly intervention or delivers inconsistent thermal sanitization.

Industry Hygiene & Production Compliance Standards

Crate sanitation falls under multiple regulatory frameworks that define acceptable cleaning parameters:

HACCP principles require that food contact surfaces — including turnover containers — be cleaned and sanitized at defined frequencies with verifiable temperature and time parameters. For thermal sanitization, water temperatures of 82°C to 95°C are widely adopted across meat and poultry processing standards to achieve meaningful microbial reduction on plastic surfaces.

GMP guidelines specify that cleaning equipment itself must be constructed from corrosion-resistant, non-toxic materials that do not introduce contamination. SUS304 food-grade stainless steel satisfies these requirements for all water-contact components, including frames, tanks, conveyor chains, and nozzle housings.

ISO 22000 and equivalent food safety management systems require documented cleaning procedures with maintenance records for all sanitation equipment. This means crate washers must support repeatable, measurable cleaning outcomes — consistent spray pressure, controlled water temperature, and validated cycle times — rather than variable manual results.

Henger Technology designs its crate washing systems to align with these standards. Both the HE-3600 and HE-4800 carry CE, ISO9001, and SGS certifications, and their SUS304 construction with rounded internal surfaces reduces microbial harborage points that complicate validation.

Matching Henger Site Equipment Process Solutions

The Henger Technology crate washing machine is engineered as a continuous tunnel system where crates travel through sequential cleaning zones on a dual-track loop chain conveyor. The process differs between the two models in stage count, but each stage serves a distinct engineering purpose.

HE-3600 Three-Stage Process（300–600 pcs/h）

The HE-3600 employs three cleaning zones in a 3,600 mm tunnel:

• Stage 1 — Pre-wash: Recirculated water at high volume softens and removes loose surface debris. A 5.5 kW pump delivers substantial flow to dislodge particulate matter before it reaches the main-wash tank, protecting the main-wash water quality and extending detergent effectiveness.

• Stage 2 — Main-wash: A 7.5 kW pump drives heated water （up to 95°C via steam heating）through precision nozzles at optimized pressure. The combination of thermal energy and mechanical spray action detaches stubborn organic residues — fats, proteins, and dried food deposits — that the pre-wash cannot address.

• Stage 3 — Fresh water rinse: Clean potable water provides a final rinse, removing any residual detergent or loosened particles and leaving the crate surface ready for return to production.

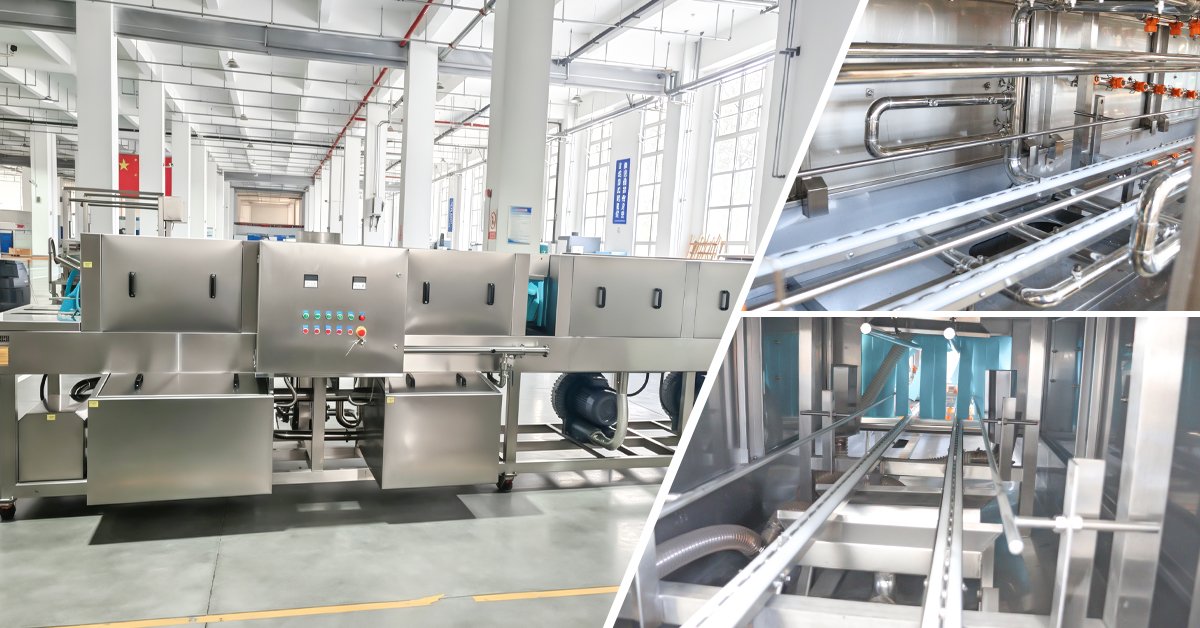

HE-4800 Four-Stage Process （600–1,000 pcs/h）

The HE-4800 extends the tunnel to 4,800 mm and adds a dedicated rinsing stage between main-wash and fresh water rinse:

• Stage 1 — Pre-wash: Same engineering as HE-3600, using recirculated water and a 5.5 kW pump.

• Stage 2 — Main-wash: Identical 7.5 kW pump with heated spray, but the longer tunnel provides greater dwell time for soil breakdown — important at higher throughput rates where each crate spends less time per stage.

• Stage 3 — Rinsing （additional）: A 2.2 kW pump uses clean recirculated water to flush away detergent and fine particles before the final rinse. This intermediate stage is particularly valuable for facilities processing protein-heavy residues, where detergent carryover can affect subsequent cleaning stages.

• Stage 4 — Fresh water rinse: Final potable water spray ensures residue-free crate surfaces.

The HE-4800's additional rinsing tank and pump increase total installed power to 15.95 kW （versus 13.37 kW for HE-3600) but deliver measurably cleaner results for high-volume operations processing 600 to 1,000 crates per hour.

Recirculating Water System Engineering

Both models use multi-tank recirculation to minimize water consumption. Each cleaning stage draws from its own tank, and water cascades from cleaner stages to dirtier stages — fresh water rinse overflow feeds the rinsing tank, which feeds the main-wash, which feeds the pre-wash. This counter-current flow means the dirtiest stage receives the most contaminated water （acceptable for initial soil removal） while the final rinse uses clean potable water.

Double-layer filtration boxes at each tank capture solid debris — plastic fragments, bone particles, vegetable matter — preventing pump blockage and nozzle fouling. These filter screens are designed for tool-free removal, allowing operators to clear them during brief production pauses.

Temperature Control and Thermal Sanitization

Steam heating raises water temperatures to operator-set levels between 82°C and 95°C. Integrated temperature probes monitor each tank continuously, and solenoid valves regulate steam injection to maintain setpoint within a narrow band. This closed-loop control ensures that every crate receives consistent thermal exposure regardless of incoming water temperature or production rate fluctuations.

Conveyor and Spray System Design

The dual-track loop chain conveyor holds crates securely during transit through high-pressure spray zones. Adjustable guide rails accommodate container widths up to 650 mm and heights up to 350 mm — covering standard meat crates, seafood tubs, vegetable baskets, and egg trays without changeover adjustments.

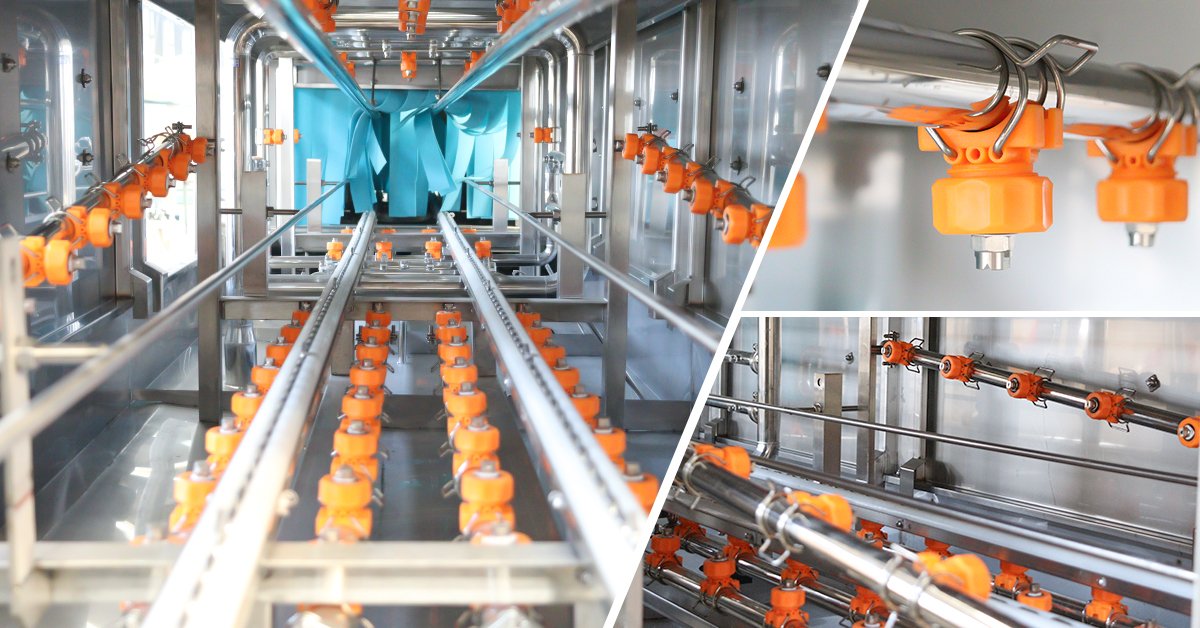

Quick-release nozzles positioned above and below the conveyor provide 360-degree spray coverage. Each nozzle can be individually removed for cleaning or replacement without tools, and spray patterns are factory-optimized for each stage — wider fan patterns for pre-wash coverage, narrower high-impact patterns for main-wash soil removal.

An optional air drying tunnel with high-pressure scroll blowers can be added after the fresh water rinse to remove surface moisture, enabling immediate crate return to production lines where dry containers are required.

Overseas Factory Real Cases With Henger Machines

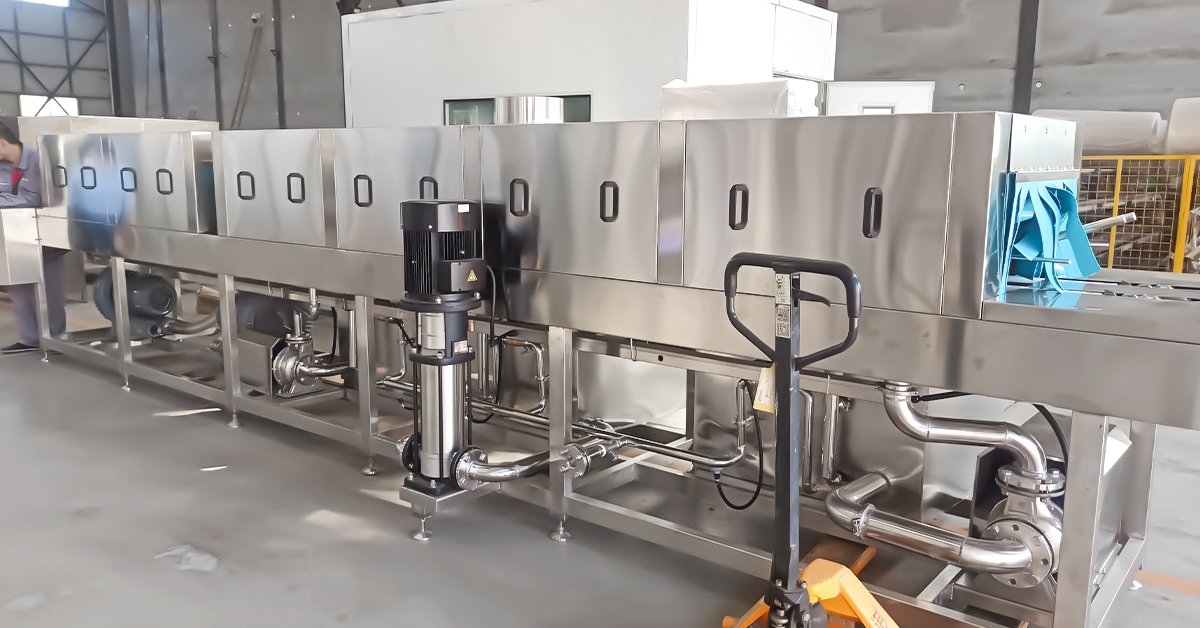

German Meat Processing Facility — HE-4800

A mid-sized sausage and cured meat producer in Bavaria, Germany, processed approximately 700 crates per hour across two shifts. Their previous single-stage washing cabinet required manual pre-scraping and could not sustain throughput during peak production. After installing the HE-4800 with the optional air drying module, the facility achieved consistent 750-crate-per-hour output with documented thermal sanitization at 90°C. The four-stage process eliminated the need for manual pre-scraping, and the recirculating water system reduced fresh water consumption by approximately 40% compared to their previous system. Maintenance staff reported that the tool-free filter access and quick-release nozzles reduced daily cleaning time from 45 minutes to under 15 minutes.

Vietnamese Seafood Processing Plant — HE-3600

A shrimp and tilapia processing facility in Ho Chi Minh City handled saltwater and protein residues on processing tubs and distribution crates. Salt corrosion had been a persistent issue with their previous washer's lower-grade stainless components. The HE-3600's full SUS304 construction — including all nozzle housings, chain links, and tank interiors — resolved corrosion concerns after 14 months of continuous operation. The plant processes approximately 450 crates per hour, and the three-stage process effectively removes salt crystals, fish slime, and organic deposits. The facility's QA team logs wash temperatures and cycle counts daily for HACCP documentation, supported by the machine's integrated temperature display.

Equipment Selection Guide

The choice between HE-3600 and HE-4800 depends primarily on throughput requirements, container soil characteristics, and available floor space:

Both models share the same maximum container dimensions （650 × 350 mm）, SUS304 construction, steam heating capability, and optional air drying module. Facilities with space constraints or moderate throughput （300–600 crates/hour） benefit from the HE-3600's compact 3.6 m footprint, while high-volume operations （600–1,000 crates/hour）or those processing heavy protein residues gain measurable cleaning improvement from the HE-4800's additional rinsing stage.

For facilities already operating Henger Technology cleaning equipment such as the Meat Trolley Washer or Smokehouse Rack Cart Washer, the crate washer integrates into a comprehensive container and equipment sanitation line, sharing common maintenance protocols and spare part types.

Daily Operation & Maintenance Tips For Henger Devices

Sustaining 300 to 1,000 crates per hour of clean output requires systematic maintenance at defined intervals. The following schedule is based on field experience across Henger Technology installations.

Daily Maintenance

• Filter screen cleaning: Remove and rinse all double-layer filtration box screens at the end of each production shift. Accumulated debris restricts water flow and reduces pump efficiency.

• Temperature verification: Cross-check the digital temperature display with a calibrated handheld probe in each tank. Deviation greater than 3°C triggers probe recalibration.

• Nozzle visual inspection: Walk the tunnel during the first production run and observe spray patterns. Blocked nozzles produce gaps in coverage — replace or clear immediately.

• Conveyor chain check: Verify smooth chain movement without binding or unusual noise. Lubricate chain guides if dry.

Weekly Maintenance

• Pump strainer cleaning: Remove and clean the inlet strainers on all wash pumps to prevent cavitation and maintain flow rate.

• Nozzle descaling: Soak quick-release nozzles in food-grade citric acid solution to remove mineral deposits that alter spray patterns.

• Tank draining and inspection: Drain each tank at the end of the weekly production cycle, inspect for sediment accumulation, and pressure-wash tank interiors.

• Steam trap inspection: Check steam traps for proper condensate discharge — failed traps reduce heating efficiency and increase energy costs.

Monthly Maintenance

• Seal and gasket inspection: Check door seals, pump mechanical seals, and pipe connections for leakage. Replace worn seals before failure.

• Sensor calibration: Calibrate temperature probes against a reference thermometer. Inspect solenoid valve operation by verifying steam flow response to setpoint changes.

• Conveyor chain tension: Measure chain tension and adjust to specification. Excessive slack causes uneven crate movement and potential jams.

• Electrical cabinet inspection: Check for moisture ingress, verify contactor operation, and tighten terminal connections.

Quarterly and Annual Maintenance

• Pump performance audit: Measure flow rate and discharge pressure at each pump. Compare to baseline values — a 15% drop indicates impeller wear or internal scaling requiring service.

• Full descaling: Circulate food-grade descaling solution through the entire system （tanks, pipes, nozzles） to remove hard water scale that accumulates over months of high-temperature operation.

• Bearing replacement: Conveyor drive bearings and idler bearings experience continuous load in humid environments. Replace at annual intervals as preventive maintenance.

• Comprehensive system audit: Henger Technology technical support offers remote and on-site audits to review maintenance records, spare part inventory, and system performance data.

Troubleshooting Reference

Spare Parts Lifecycle Planning

Industry Frequently Asked Questions

Q1: How does the HE-4800's additional rinsing stage improve cleaning compared to the HE-3600?

A: The HE-4800 adds a dedicated rinsing stage with its own 2.2 kW pump and water tank between the main-wash and fresh water rinse. This intermediate stage uses clean recirculated water to remove detergent residue and fine particles before the final potable water rinse. For facilities processing heavy protein or fat loads, this reduces detergent carryover and improves the overall cleanliness of the final rinse water, supporting higher throughput without compromising sanitation quality.

Q2: What water temperature should be set for different applications?

A: For meat and poultry crate washing, 82°C to 95°C is recommended to achieve thermal sanitization of organic residues. Seafood processing with salt residues may operate at 80°C to 85°C, as the primary challenge is salt and slime removal rather than thermal sanitization. Vegetable and fruit crate washing typically operates at 70°C to 80°C, where soil removal is the main objective. The steam heating system maintains setpoint within a narrow band regardless of production rate.

Q3: How much water does the recirculating system save compared to single-pass washing?

A: Compared to single-pass washing where all water is used once and drained, the counter-current recirculation system reduces fresh water consumption by approximately 50% to 70%, depending on soil load and production rate. The pre-wash and main-wash stages operate almost entirely on recirculated water, with only the final fresh water rinse consuming potable water. Specific savings depend on crate soil levels, filter maintenance frequency, and production volume.

Q4: Can the machine handle different crate sizes without extended changeover time?

A: The dual-track conveyor features adjustable guide rails that accommodate container widths up to 650 mm and heights up to 350 mm. Changing between standard crate sizes typically requires adjusting rail spacing, which takes approximately 5 to 10 minutes. For facilities handling multiple container types daily, the quick-adjustment design minimizes changeover downtime between production runs.

Q5: What is the recommended spare parts inventory for a new installation?

A: For the first year of operation, Henger Technology recommends stocking: 10% spare nozzles（of total installed count）, 2 sets of filter screens per tank, 1 pump mechanical seal per pump, 1 set of conveyor chain links, and temperature probe spare units. These items cover the most common wear components and prevent extended downtime while awaiting shipment from the Shandong factory.

Q6: How does the crate washer integrate with Henger's other cleaning equipment?

A: Facilities running comprehensive sanitation programs often deploy the crate washer alongside Meat Trolley Washer for 200L meat carts and Smokehouse Rack Cart Washer for smoking racks. These systems share common design principles — SUS304 construction, multi-stage process engineering, and steam heating — allowing maintenance staff to apply consistent protocols across all equipment.
