Smokehouse Rack Cart Washer Maintenance Engineering: Maximizing Equipment Uptime in Smoked Food Facilities

2026-07-22 | Equipment Maintenance | Henger technology

Smokehouse rack cart washers operate at the center of smoked meat production hygiene, processing 50-60 trolleys per hour under sustained thermal and chemical stress. For plant engineers and maintenance managers, preserving consistent cleaning performance across multi-shift operations requires a structured maintenance program, not reactive repairs. This guide examines the engineering maintenance practices that extend the service life of the SCW-560 Smokehouse Rack Cart Washing Machine, covering nozzle array inspection, multi-stage filtration servicing, heating system descaling, chemical dosing calibration, and predictive maintenance scheduling. Drawing from field experience in European and Southeast Asian smoked food facilities, it provides actionable procedures that help food factories maintain cleaning consistency, reduce unplanned downtime, and protect their equipment investment under HACCP and GMP compliance frameworks.

Factory Operation Core Pain Points

In smoked meat and poultry processing facilities, smokehouse rack cart washers face some of the most demanding operating conditions in the plant. The combination of high-temperature water (up to 85 degrees C), alkaline foam disinfectants, and persistent protein-fat-grease loads creates multiple maintenance challenges that develop gradually:

• Nozzle clogging: Protein residues and mineral deposits from hard water accumulate inside spray nozzles, reducing spray pressure and altering coverage patterns. Clogged nozzles are a primary cause of cleaning inconsistency in trolley washers.

• Heating system scale: When water temperatures reach 80-85 degrees C, calcium and magnesium carbonates precipitate onto heating coils and internal pipe surfaces, gradually reducing heat transfer efficiency. A 2 mm scale layer can reduce heating performance by up to 30 percent.

• Filtration screen blockage: The multi-stage circulating filtration system captures grease particles, food debris, and chemical residues. Without regular cleaning, filter screens become obstructed, reducing water recovery flow and increasing fresh water consumption.

• Chemical dosing drift: Peristaltic dosing pumps experience tube wear over time, causing the actual chemical delivery rate to deviate from the panel-set value. Dosing drift leads to foam quality inconsistency and potential hygiene compliance gaps.

• Pump seal degradation: High-pressure rinse pumps (3-6 bar) operate under thermal cycling and chemical exposure. Mechanical seal wear progresses gradually, eventually causing leaks that trigger safety shutdowns.

• Sensor calibration drift: Temperature probes and pressure transducers in the control panel can drift from their calibrated values over months of continuous operation, causing cycle parameters to deviate from validated settings.

These issues share a common characteristic: they develop gradually and remain invisible until cleaning performance drops below acceptable thresholds. A structured maintenance program detects and addresses them before they affect production.

Industry Hygiene & Production Compliance Standards

Equipment maintenance is not optional under modern food safety frameworks. It is a documented prerequisite that directly affects audit outcomes:

• HACCP: HACCP principles require that all equipment contacting production tools, including smoking trolleys, be maintained in a condition that ensures consistent cleaning outcomes. Maintenance records form part of the facility verification documentation.

• EU Regulation 852/2004: Annex II, Chapter I requires food business operators to keep equipment in good order, clean, and maintained to minimize contamination risk.

• FDA FSMA: Preventive controls include equipment maintenance as a prerequisite program, requiring documented maintenance schedules and corrective action records.

• ISO 22000:2018: Maintenance programs fall within Prerequisite Programs (PRPs), requiring documented procedures for equipment servicing, calibration, and preventive maintenance.

• GMP guidelines: Guidelines for smoked meat facilities specifically address the need for cleaning equipment validation, including verification that washers deliver consistent temperature, pressure, and chemical concentration.

For facilities operating the SCW-560 Smokehouse Rack Cart Washing Machine, compliance means maintaining documented evidence that the equipment operates within validated parameters (3-6 bar pressure, up to 85 degrees C temperature, specified chemical dosage) throughout its service life.

Matching Henger Site Equipment Process Solutions

The maintenance engineering program for the SCW-560 addresses six subsystems, each with specific inspection intervals and procedures:

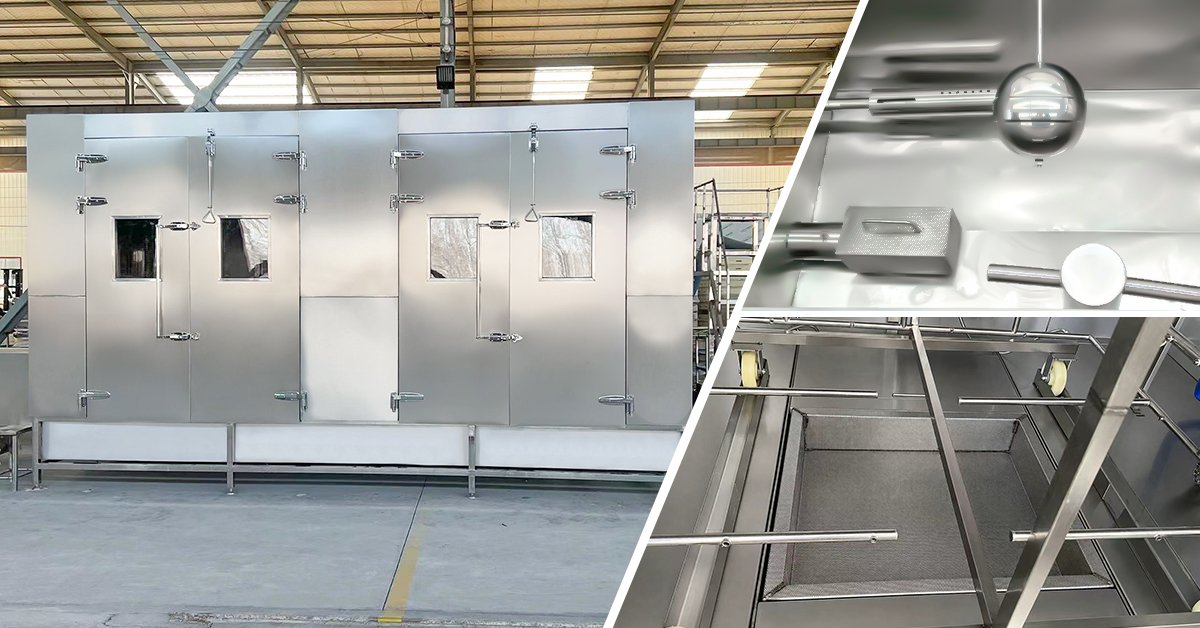

Nozzle Array Maintenance

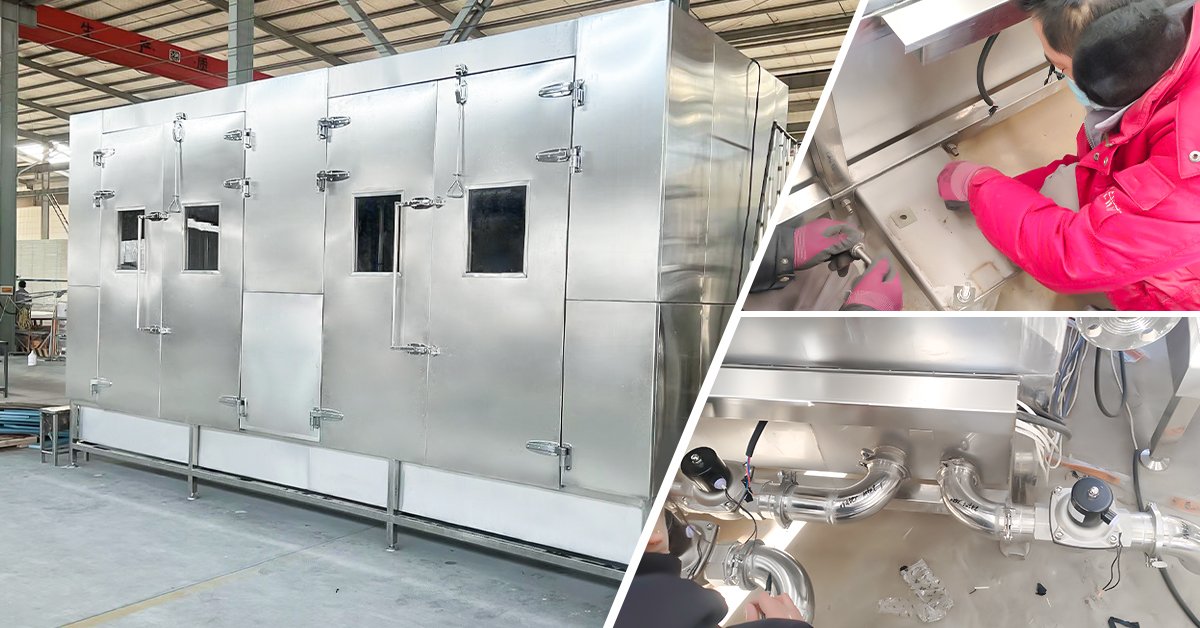

The multi-level nozzle array is the primary cleaning mechanism. Nozzles should be inspected weekly for spray pattern integrity. A simple visual test, running the spray cycle without a trolley and observing coverage uniformity, identifies partially blocked nozzles. Monthly, nozzles should be removed and soaked in a descaling solution to dissolve mineral deposits. Nozzle tips showing visible wear or orifice deformation should be replaced immediately, as worn nozzles deliver inconsistent spray patterns even when unobstructed.

Multi-Stage Filtration Servicing

The circulating water recovery system uses sequential filter stages: a coarse strainer for large debris, a fine mesh screen for grease particles, and a chemical-compatible cartridge filter for fine residues. The coarse strainer requires daily cleaning; the fine mesh screen should be removed and backwashed weekly; the cartridge filter element should be replaced every 3-6 months depending on production volume. Failure to service the filtration system cascades into nozzle clogging and pump cavitation.

Heating System Descaling

Scale accumulation on heating elements reduces thermal transfer efficiency and increases energy consumption. Descaling frequency depends on local water hardness: in soft water areas (below 60 mg/L CaCO3), semi-annual descaling may suffice; in hard water areas (above 120 mg/L CaCO3), quarterly descaling is recommended. A food-grade citric acid or sulfamic acid descaling solution circulated through the heating circuit for 30-45 minutes dissolves carbonate scale without damaging 304 stainless steel components.

Chemical Dosing Calibration

The foam disinfectant dosing system uses a peristaltic pump with a flexible tube that wears progressively. Daily verification involves measuring the actual chemical volume delivered during a timed cycle and comparing it to the panel-set value. When the actual delivery deviates by more than 10 percent from the setpoint, the dosing tube should be replaced. Monthly, the entire dosing line should be flushed with clean water to prevent crystallized chemical buildup in the feed tube.

Pump and Seal Inspection

The high-pressure rinse pump operates at 3-6 bar under thermal cycling. Monthly inspection should check for visible leaks at the mechanical seal, unusual vibration, or noise during operation. Seal replacement intervals vary by usage intensity, typically 12-18 months under continuous multi-shift operation. Pump motor amperage should be checked quarterly using a clamp meter; elevated amperage indicates bearing wear or internal obstruction.

Control Panel Diagnostics

The intelligent control panel manages cycle parameters including pressure, temperature, duration, and chemical dosage. Temperature probe accuracy should be verified quarterly using a calibrated reference thermometer immersed in the wash tank. Pressure transducer accuracy should be checked semi-annually against a calibrated pressure gauge. Any sensor reading deviating more than 5 percent from the reference value requires recalibration or replacement.

Overseas Factory Real Cases With Henger Machines

German Smokehouse Facility: 18-Month Maintenance Program

A mid-sized smoked sausage producer in Bavaria operating two SCW-560 units implemented a structured maintenance program after experiencing recurring nozzle clogging issues in their first year of operation. The facility adopted weekly nozzle inspection, monthly descaling soaks, and quarterly heating system descaling (local water hardness: 145 mg/L CaCO3). Over 18 months, the program reduced unplanned downtime by approximately 60 percent, eliminated emergency nozzle replacements, and maintained consistent cleaning performance across 8-hour production shifts. The facility HACCP audit commended the documented maintenance records as a model for equipment verification.

Vietnamese Poultry Processor: Water Quality Adaptation

A chicken smoking and processing plant in Ho Chi Minh City operates a single SCW-560 unit processing approximately 200 trolleys per day. The facility municipal water supply carries high sediment content during the rainy season, accelerating filter screen blockage. After consultation with Henger Technology technical support team, the facility installed a pre-filtration unit upstream of the washer and adjusted the maintenance schedule to daily coarse strainer cleaning during monsoon months. This adaptation reduced filter replacement frequency by approximately 40 percent and maintained stable water recovery rates year-round. The facility also cross-references its trolley cleaning records with its meat trolley washer maintenance logs to ensure consistent sanitation across both cleaning systems.

Equipment Selection Guide

When selecting a smokehouse rack cart washer, maintenance accessibility should be a primary evaluation criterion alongside cleaning performance:

Spare parts inventory planning should include: nozzle tips (6-month supply), filter cartridges (3-month supply), dosing pump tubes (2-year supply), mechanical seals (1-year supply), and temperature probes (1-year supply). Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. offers standardized spare parts kits tailored to production volume.

Daily Operation & Maintenance Tips For Henger Devices

The following maintenance schedule is designed for facilities operating the SCW-560 under typical multi-shift conditions (8-16 hours/day, 5-6 days/week):

Common troubleshooting reference:

Industry Frequently Asked Questions

Q: How often should nozzles be replaced on the SCW-560?

A: Under typical multi-shift operation, nozzle tips should be replaced every 6-12 months. However, in facilities with hard water or heavy smoke residue loads, replacement may be needed every 4-6 months. Weekly spray pattern inspections help identify replacement timing before performance degrades.

Q: What descaling solution is compatible with the 304 stainless steel construction?

A: Food-grade citric acid (5-10 percent concentration) or sulfamic acid-based descaling solutions are compatible with 304 stainless steel. Avoid hydrochloric acid-based products, which can cause pitting corrosion in stainless steel.

Q: How can we tell if the chemical dosing system needs recalibration?

A: The simplest method is a timed draw test: run a 60-second dosing cycle with the chemical container on a scale, and compare the actual weight delivered to the panel-set volume. A deviation greater than 10 percent indicates the dosing tube needs replacement.

Q: What water hardness level requires quarterly descaling?

A: Facilities with water hardness above 120 mg/L CaCO3 (approximately 7 grains per gallon) should descale the heating system quarterly. Below 60 mg/L, semi-annual descaling is typically sufficient. Water hardness between 60-120 mg/L may require descaling every 4-5 months.

Q: Does Henger Technology provide remote maintenance support?

A: Yes. Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. provides remote technical support including video-guided troubleshooting, maintenance scheduling consultation, and spare parts identification. The technical team can assist with fault code interpretation and guide maintenance personnel through repair procedures.

Q: Can the maintenance schedule be adjusted for single-shift operations?

A: Yes. Facilities operating 8 hours/day, 5 days/week can extend most intervals by approximately 50 percent. Daily tasks (strainer cleaning, dosing verification) remain unchanged, but weekly tasks can shift to bi-weekly, and monthly tasks to every 6 weeks. Quarterly descaling can extend to semi-annual in soft water areas.

Maintaining consistent cleaning performance from your smokehouse rack cart washer requires more than occasional repairs. It requires a structured engineering maintenance program. Henger Technology offers technical support, spare parts supply, and maintenance consultation for all SCW-560 units deployed worldwide. Contact our engineering team through the official product page to develop a maintenance program tailored to your facility production volume, water quality, and compliance requirements. CE and ISO9001 certified equipment, 5-year main components warranty, 24-hour global technical support.
