Boot Washing Machine Factory Retrofit: From Manual Cleaning to Automated Hygiene Stations

July 27, 2026 | Factory Retrofit | Henger technology

Across the global food processing industry, the hygiene entrance remains one of the most underestimated critical control points. Many facilities still rely on manual boot dips, handheld hoses, and visual supervision to manage personnel footwear sanitation. When production scales up and audit standards tighten, these improvised measures become sources of non-conformity, cross-contamination, and operational bottleneck. This article documents two real factory retrofit projects where food processors replaced manual boot cleaning with Henger automated hygiene cleaning stations, covering the site assessment, model selection, installation challenges, and measurable post-retrofit outcomes.

For plant managers and food safety engineers evaluating hygiene entrance upgrades, these case studies provide practical reference points — from space constraints and utility modifications to compliance restoration and return on investment. Each retrofit demonstrates how a purpose-built boot washing machine transforms a vulnerable manual process into a consistent, auditable, and enforced sanitation checkpoint.

Factory Operation Core Pain Points

Facilities that depend on manual boot washing methods typically encounter a predictable set of operational and compliance problems:

• Inconsistent manual compliance: Workers under time pressure during shift changes routinely shorten or skip boot cleaning steps, leaving organic residues on footwear that transfer into production zones.

• No enforced hygiene barrier: Without integrated access control, there is no physical barrier preventing personnel from entering clean zones without completing sanitation — the system relies entirely on supervision.

• Excessive water consumption: Handheld hoses and open boot dips consume substantially more water per worker than engineered recirculation systems, increasing utility costs and wastewater volume.

• Water pooling and slip hazards: Standing water from manual washing creates slip hazards and supports microbial growth in entrance areas, undermining the very hygiene objectives the process intends to achieve.

• Audit documentation gaps: Auditors require evidence that every worker completed sanitation before entry. Manual processes cannot produce per-person, per-shift compliance records, leading to documentation non-conformities.

• Variable cleaning quality: Without standardized brush pressure, contact time, and chemical concentration, cleaning outcomes vary between workers and shifts, making hygiene performance unpredictable.

These issues compound as facility throughput grows. A plant with 400 workers across three shifts cannot rely on a boot dip and a hose nozzle to maintain consistent hygiene at every entrance, every shift, every day.

Industry Hygiene & Production Compliance Standards

Several regulatory frameworks and industry standards directly drive the transition from manual boot cleaning to automated hygiene stations:

• EU Regulation 852/2004: Annex II of EU Regulation 852/2004 requires that food premises have adequate facilities for personal hygiene, including handwashing and footwear cleaning at production area entrances. Manual methods increasingly fail to satisfy audit expectations for consistency and documentation.

• USDA FSIS requirements: USDA Food Safety and Inspection Service directives require establishments to maintain effective sanitation procedures at entry points. Inspection findings frequently cite inadequate footwear sanitation as a sanitation deficiency.

• Codex Alimentarius: The General Principles of Food Hygiene (CAC/RCP 1-1969) establish that personnel entry points must include facilities to prevent contamination of footwear. Revision updates emphasize process verification over visual inspection alone.

• GMP prerequisite programs: GMP standards for food manufacturing mandate that personnel hygiene procedures be documented, trained, and verifiable. Automated stations with access control generate the compliance evidence that auditors expect.

• HACCP prerequisite programs: Footwear sanitation is a recognized prerequisite program within HACCP systems. When a facility identifies footwear as a contamination vector, the control measure must be reliable, repeatable, and documented — characteristics that manual methods cannot guarantee.

Together, these standards shift the expectation from reasonable effort to demonstrable consistency. An automated boot washing machine with sensor-activated cycles and access control provides the process reliability and audit trail that modern compliance frameworks require.

Matching Henger Site Equipment Process Solutions

A successful hygiene entrance retrofit follows a structured engineering approach. Henger Technology supports facility managers through each phase — from initial site survey to commissioning and operator training.

Site Assessment and Traffic Flow Analysis

The retrofit begins with a site visit to evaluate the existing entrance layout, worker traffic patterns, shift sizes, and available utilities. Engineers assess doorway widths, floor drainage capacity, water supply pressure, and electrical availability. For facilities with multiple entrances, a prioritized deployment plan ensures that the highest-traffic entry point receives the most comprehensive station first.

Model Selection Based on Operational Requirements

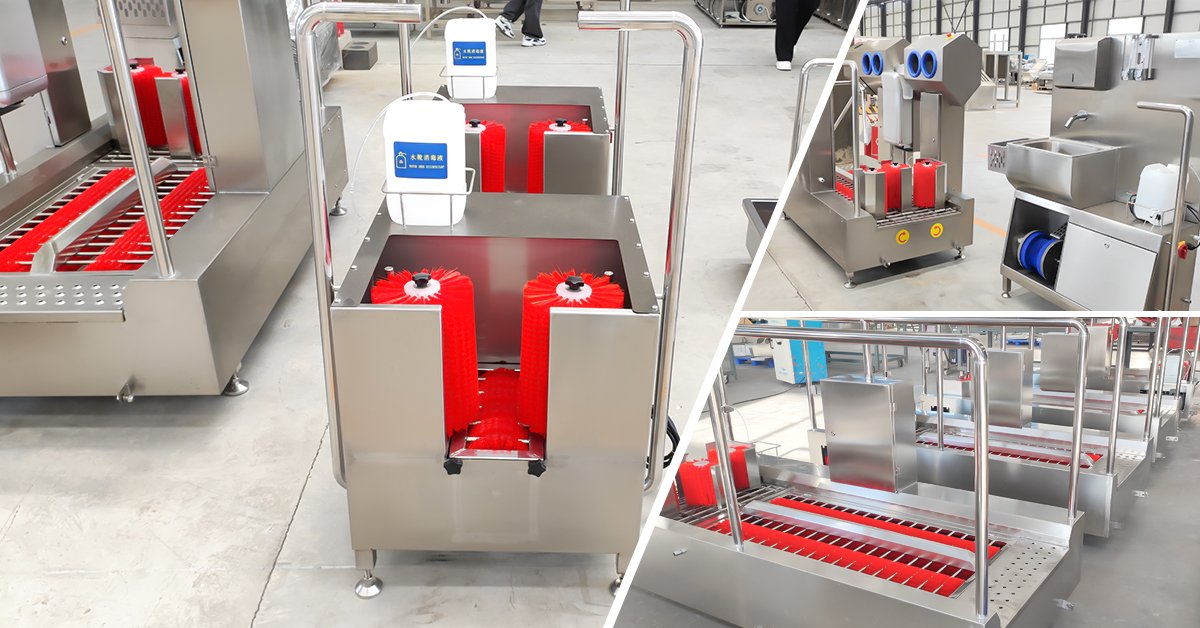

The Henger boot washing machine lineup spans 23 models across five categories, enabling precise matching to facility requirements. For a main production entrance serving hundreds of workers per shift, the HE-HCDS01 full-feature station provides the complete four-step sanitation cycle: boot side washing, hand washing and disinfection, hand drying with simultaneous sole cleaning, and final hand disinfection with access control release. For secondary entrances with space constraints, compact models such as the HE-HCDS13 deliver focused sole cleaning without the full hand hygiene suite.

Integration with Existing Infrastructure

The boot washing machine integrates with existing facility infrastructure through standardized utility connections. The 304 stainless steel construction (2.0 mm plate thickness) withstands the humid, chemically active environment typical of hygiene entrance areas. Photoelectric sensors activate the cleaning cycle automatically upon worker approach, and the access control gate remains locked until the full sanitation sequence completes — ensuring that no worker bypasses the process.

Utility Modifications

Retrofit installations typically require three utility modifications: a dedicated water supply line with pressure regulation (0.2 to 0.4 MPa), a floor drain rated for the station's discharge volume, and a three-phase electrical connection (380V/50Hz standard, customizable to 220V/60Hz for regions with different specifications). Henger's installation team coordinates with facility maintenance staff to minimize disruption during these modifications.

Overseas Factory Real Cases With Henger Machines

Case 1: Polish Poultry Processing Plant

A poultry processing facility in central Poland employing 450 workers across three shifts supplies fresh and frozen products to both domestic retailers and EU export markets. In early 2025, the plant received two non-conformity findings during a customer audit: inadequate footwear sanitation documentation and visible organic residue on boots in the cutting room entrance area.

The facility had relied on a chlorinated boot dip and a handheld hose at the main entrance. Compliance depended on a supervisor visually confirming that workers stepped through the dip — a process that broke down during shift changes when 150 workers entered within a 20-minute window. The audit findings threatened an export contract worth significant annual revenue.

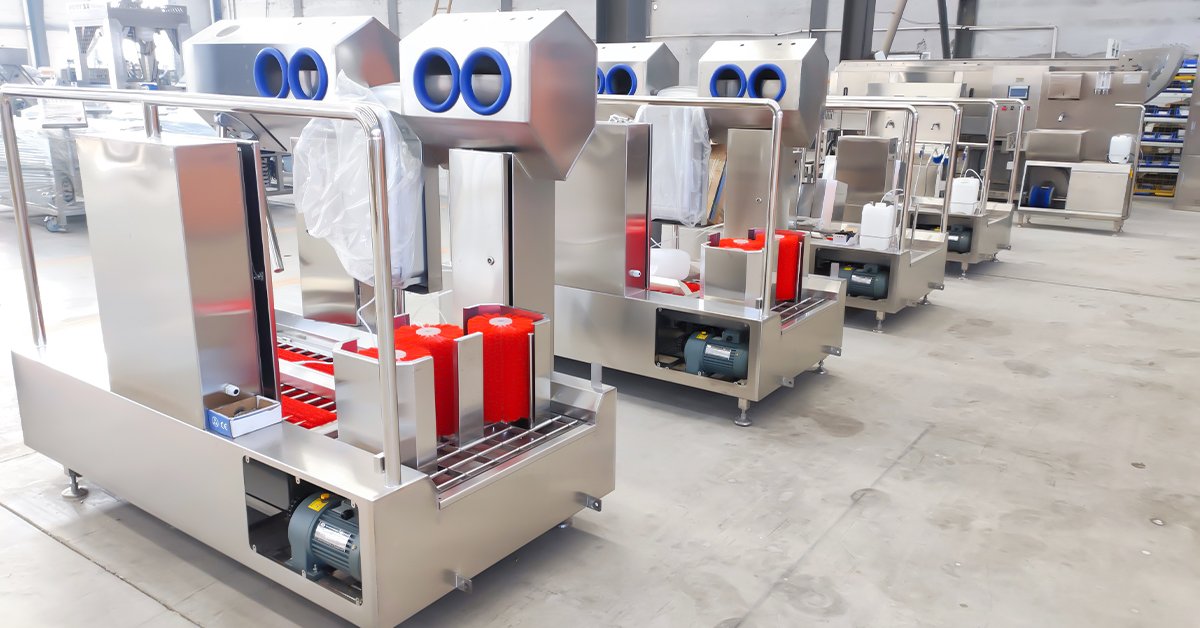

Henger's site assessment identified the main entrance (2450 mm width available) and a secondary entrance near the packaging area as retrofit targets. The engineering team specified an HE-HCDS01 full-feature station for the main entrance — providing the complete four-step cycle with 7.5 kW power — and an HE-HCDS13 compact sole washer for the secondary entrance where space was limited to 2270 mm.

Installation was completed over a planned weekend shutdown. The access control interlock was configured to the facility's existing turnstile system, and chemical dosing was calibrated to the plant's approved quaternary ammonium compound sanitizer. Operator training covered daily brush rinsing, weekly disinfectant tank inspection, and the quick-release brush replacement procedure.

Post-retrofit results: Within the first quarter of operation, the plant passed a follow-up audit with zero hygiene non-conformities. Water consumption at the main entrance decreased by approximately 60% compared to the previous manual process. Shift-change throughput improved because the sensor-activated cycle standardized cleaning time per worker, eliminating the variability of manual methods. The stainless steel hand washing station integrated into the HE-HCDS01 also resolved a concurrent hand hygiene deficiency noted in the same audit.

Case 2: Saudi Arabia Dairy Processing Facility

A dairy processing facility in Riyadh, Saudi Arabia, with 280 workers, produces fresh dairy products including pasteurized milk, yogurt, and cheese. The plant operates with zone separation between raw milk reception, pasteurization, and packaging areas. However, the only physical barrier between the raw milk zone and the packaging zone was a doorway with no enforced hygiene procedure.

Following a internal contamination risk assessment, the quality team identified footwear transfer between zones as a critical vulnerability. The facility needed an automated hygiene station that could serve as a zone gateway — enforcing boot sanitation and hand disinfection before any worker crossed from the raw milk side to the packaging side.

Henger engineers specified an HE-HCDS03 standard all-in-one station (3180 x 1160 x 1600 mm, 3.55 kW). The extended length accommodated the facility's wider corridor, and the integrated access control created a physical zone boundary. The station was configured with the plant's approved peracetic acid disinfectant, and the chemical dosing pump was calibrated to maintain the required concentration range.

The installation required a new floor drain and a water supply extension, both completed during a two-day planned maintenance window. The facility's engineering team handled the utility work while Henger's technicians installed and commissioned the station. Post-installation validation included ATP swab testing on boot soles before and after the cleaning cycle, demonstrating a consistent microbial reduction that satisfied the internal HACCP team.

Post-retrofit results: The facility achieved enforced zone separation with documented compliance for every worker crossing between raw milk and packaging areas. The air shower room was subsequently added at the packaging zone entrance for particulate control, creating a comprehensive hygiene barrier. Chemical consumption decreased compared to the previous manual spray method due to the engineered dosing precision. The plant passed its GMP recertification audit with the retrofit cited as a positive compliance initiative.

Equipment Selection Guide

Selecting the appropriate boot washing machine for a retrofit project depends on entrance traffic volume, available space, and the scope of hygiene functions required. The following table maps common retrofit scenarios to recommended Henger models:

For facilities uncertain about the optimal configuration, Henger's engineering team conducts on-site assessments and provides customized retrofit proposals covering model selection, utility requirements, and installation sequencing.

Daily Operation & Maintenance Tips For Henger Devices

Sustaining the performance of a retrofitted boot washing machine requires a structured maintenance routine. The following schedule aligns with the equipment's design specifications and supports consistent audit-readiness:

• Daily: Rinse brush rollers with clean water to remove accumulated organic debris. Verify that the photoelectric sensors activate when approached and that the access control gate locks properly. Check that the water supply reaches the station at the specified pressure range.

• Weekly: Inspect the disinfectant tank level and concentration. Clean the metering pump filter to prevent clogging. Wipe down the stainless steel surfaces with a food-safe sanitizer to maintain the hygienic appearance expected during audits.

• Monthly: Test the access control interlock sequence to confirm the gate releases only after the full cleaning cycle completes. Inspect electrical connections for moisture intrusion. Check brush roller wear — replace when bristle length decreases below the specified threshold.

• Quarterly: Replace brush rollers using the quick-release design (no tools required). Calibrate the chemical dosing pump against a reference measurement. Verify sensor alignment and clean optical surfaces. Inspect the water drainage path for blockages.

The quick-release brush design is a critical maintenance feature — replacement takes approximately five minutes per roller without specialized tools, minimizing downtime during brush changes. Facilities should maintain a spare brush inventory sized to the replacement frequency determined by worker traffic volume.

Industry Frequently Asked Questions

How long does a typical boot washing machine retrofit installation take?

For a single-station installation with utilities already prepared, the physical installation and commissioning typically require one to two days. If utility modifications (water supply, drainage, electrical) are needed, the total project duration extends to three to five days, usually coordinated with a planned maintenance window to minimize production disruption.

Can the hygiene station integrate with existing turnstiles or access control systems?

Yes. The HE-HCDS01 and HE-HCDS03 models include an integrated access control gate that can be configured to interface with existing facility turnstile systems. Henger's engineering team coordinates the interlock configuration during installation to ensure seamless operation with the facility's access management infrastructure.

What water supply and drainage modifications are typically required?

The station requires a dedicated water supply line delivering 0.2 to 0.4 MPa pressure and a floor drain rated for the discharge volume. For facilities with limited drainage capacity, Henger can specify a recirculation option that reduces total water consumption and discharge volume. The specific requirements are documented in the site assessment report provided before installation.

How is the chemical disinfectant dosing calibrated?

The integrated metering pump delivers disinfectant at a calibrated ratio set during commissioning. Henger technicians calibrate the dosing to match the facility's approved sanitizer concentration. Periodic recalibration is recommended quarterly, and the quick-disconnect dosing tube simplifies sanitizer changes between different chemical products.

What happens during a power failure?

The station includes a safety interlock that defaults the access gate to a locked state during power loss, preventing uncontrolled entry. The emergency stop button provides immediate equipment shutdown capability. Upon power restoration, the system automatically resets to standby mode and resumes normal sensor-activated operation.

For food processing facilities considering a hygiene entrance upgrade, Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. provides comprehensive retrofit support — from initial site assessment and model selection to installation, commissioning, and operator training. With 23 models across five categories, CE and ISO 9001 certification, and a five-year main components warranty, Henger's boot washing machines deliver the process reliability and compliance documentation that modern food safety audits demand.
