Central Foam Cleaning Station Retrofit: From Scattered Cleaning to Systematic Hygiene

August 4, 2026 | Workshop Sanitation | Henger technology

Many food processing facilities still rely on scattered portable foam cleaners and manual hose rinsing for daily sanitation. While individual portable units deliver adequate foam coverage, managing eight or more units across a large plant creates inconsistent dilution ratios, untraceable chemical consumption, and uneven cleaning results between shifts. A central foam cleaning station retrofit consolidates these scattered resources into a single, intelligent hygiene management system with German-imported valve technology, 25-meter hose coverage, and 70% water savings. This article examines real factory retrofit projects where Henger central foam cleaning stations replaced dispersed cleaning equipment, delivering measurable improvements in HACCP compliance, water reduction, and operational efficiency.

Factory Operation Core Pain Points: Scattered Cleaning Problems

Food plants operating with multiple portable foam cleaners face operational bottlenecks that compound as production scales:

• Root cause: Inconsistent dilution ratios: Each portable unit requires manual chemical mixing, leading to wide variation in foam concentration across shifts and operators.

• Root cause: Untraceable chemical consumption: Without centralized dosing, plant managers cannot verify how much cleaning chemical each area receives, complicating HACCP documentation.

• Root cause: Excessive water usage: Conventional unrestricted water guns consume significantly more water than constant-pressure systems, raising utility costs and stressing wastewater treatment capacity.

• Root cause: Operator-dependent results: Cleaning quality varies by individual technique, making sanitation outcomes unpredictable between morning, afternoon, and night shifts.

• Root cause: Equipment sprawl: Eight or more portable units scattered across the facility occupy floor space, create tripping hazards with trailing hoses, and require individual maintenance schedules.

• Root cause: No cycle standardization: Without programmable cleaning cycles, there is no mechanism to enforce consistent sanitation procedures across different operators or production lines.

These pain points directly affect audit readiness. When an inspector asks for cleaning records, plants with scattered equipment struggle to produce standardized documentation showing that each zone received the correct chemical concentration, contact time, and rinse volume.

Industry Hygiene and Production Compliance Standards

A central foam cleaning station retrofit directly addresses multiple regulatory frameworks that food processing facilities must satisfy:

HACCP Cleaning Documentation

HACCP principles require documented cleaning procedures with verifiable chemical concentrations, contact times, and rinse protocols. The intelligent timing system on the central foam cleaning station allows pre-programmed cleaning cycles, ensuring that every shift applies identical sanitation parameters. The touchscreen interface records cycle data, providing auditable proof that standardized procedures were followed.

ISO 22000 Food Safety Management

ISO 22000 requires a systematic approach to sanitation across the entire facility. Scattered portable cleaners create gaps in the sanitation system where zones may receive inadequate coverage. A central station with 25-meter hose coverage from each drop point ensures complete facility coverage from strategically placed stations, eliminating blind spots in the cleaning map.

Water Conservation Standards

Environmental management systems (ISO 14001) and local wastewater discharge permits impose limits on water consumption. The constant pressure control system delivers precise water flow on demand, achieving a documented 70% reduction in water usage compared to conventional cleaning methods. This reduction directly lowers wastewater treatment loads and supports sustainability targets.

Matching Henger Site Equipment Process Solutions

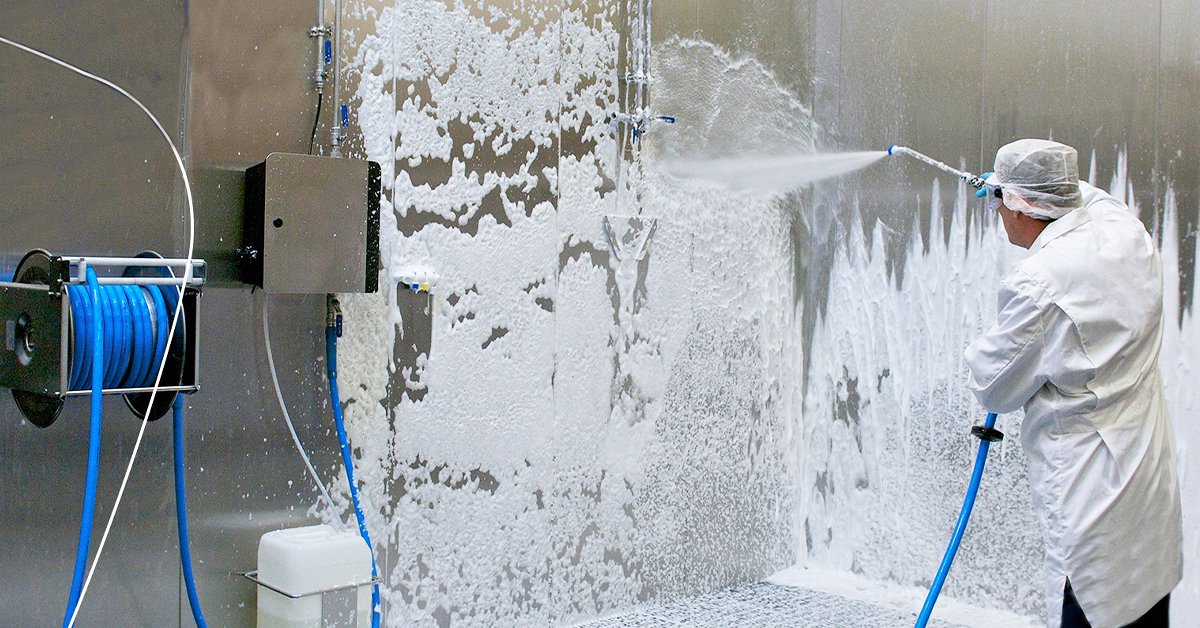

The central foam cleaning station integrates four cleaning modes into a single workstation, each activated by a one-click switch on the German-imported valve body:

High-pressure water rinsing: Production lines, conveyors, and machinery surfaces receive targeted high-pressure water at constant pressure, removing loose soil and product residue.

Foam cleaning: Thick foam adheres to vertical and overhead surfaces including vats, tanks, and mixers, providing extended contact time for chemical action on stubborn organic residues.

Disinfectant application: Even spray distribution of sanitizing solution covers walls, floors, and ceiling structures, reaching areas that manual wiping cannot effectively sanitize.

Compressed air foam: Dense foam for deep cleaning scenarios where extended foam dwell time is required before rinsing.

The retrofit process follows a structured engineering approach:

Site Assessment and Station Placement

Engineers map the production floor to determine optimal central station placement. Each station provides 25-meter hose coverage in all directions, creating a coverage circle of approximately 1,963 square meters. For a typical 5,000-square-meter processing hall, two central stations positioned at strategic nodes provide complete coverage with hose overlap at boundaries.

Distribution Network Design

The retrofit includes a sanitary piping network connecting the central station to chemical storage, water supply, and compressed air utilities. Food-grade stainless steel piping routes through ceiling voids, dropping to wall-mounted hose stations at production zone boundaries. Each drop station features either an auto-retract hose collector or a manual hose reel, selected by operational preference.

Commissioning and Operator Training

After installation, the Henger commissioning team configures cleaning cycle programs for each production zone, sets dilution ratios according to chemical manufacturer specifications, and calibrates the constant pressure system. Operator training covers mode switching, cycle selection, hose management, and basic troubleshooting through the touchscreen interface.

Overseas Factory Real Cases With Henger Machines

Case 1: Polish Poultry Processing Plant (800 Workers, 3 Shifts)

A large poultry processing facility in Poland operated eight portable foam cleaners distributed across slaughter, deboning, and packaging zones. Despite adequate individual unit performance, the plant faced recurring audit findings related to inconsistent chemical concentration records and water consumption exceeding permit limits by 35%.

The retrofit project installed two Henger central foam cleaning stations at strategic nodes covering the entire 4,800-square-meter processing hall. Each station was equipped with auto-retract hose collectors, and a total of six drop stations were distributed across the facility. The intelligent timing system was programmed with zone-specific cleaning cycles: a 12-minute foam-and-rinse cycle for slaughter zones, an 8-minute cycle for packaging areas, and a 15-minute deep-clean cycle for end-of-shift sanitation.

Results after six months of operation:

• Metric: Water consumption reduced by 60% compared to the previous scattered portable unit configuration, bringing the plant within wastewater permit limits.

• Metric: ATP swab pass rates increased from 82% to 97% across all production zones, with the most significant improvement in the deboning area where previous inconsistency was highest.

• Metric: Chemical consumption decreased by 25% due to precise dosing and elimination of manual mixing errors.

• Metric: Cleaning cycle standardization eliminated operator-dependent results, with all three shifts producing consistent sanitation outcomes documented through the touchscreen interface.

• Metric: Audit findings related to cleaning documentation dropped to zero, as the intelligent timing system generated automatic cycle records for HACCP compliance.

Case 2: Middle Eastern Dairy Factory (500 Workers, 2 Shifts)

A dairy processing facility in the Middle East relied on manual hose rinsing and portable foam application for daily cleaning. The plant faced challenges with chemical waste from unrestricted foam application, inconsistent sanitizer coverage on overhead pipe structures, and difficulty meeting ISO 22000 cleaning documentation requirements.

The retrofit installed one Henger central foam cleaning station with a 25-meter hose and four additional drop stations distributed along the ceiling-mounted piping network. The plant selected manual hose reels for cost optimization, with the auto-retract collector option reserved for the main station. The German-imported valve body was configured for three primary cleaning modes: high-pressure water for equipment surfaces, foam for vat and tank exteriors, and disinfectant for walls and floors.

Results after four months of operation:

• Metric: Water consumption reduced by 70%, matching the documented savings rate and significantly lowering the wastewater treatment load on the facility's on-site treatment plant.

• Metric: Chemical waste eliminated through precise dosing control, with chemical consumption tracked through the touchscreen interface for each cleaning cycle.

• Metric: Overhead pipe cleaning achieved effective coverage through the 25-meter hose, reaching ceiling-mounted processing infrastructure that previous manual methods could not adequately sanitize.

• Metric: ISO 22000 audit passed with zero non-conformances related to cleaning procedures, as the pre-programmed cycles provided standardized documentation.

• Metric: The built-in water scale removal system prevented calcium buildup in the piping network, reducing descaling maintenance frequency from monthly to quarterly.

Equipment Selection Guide

When planning a central foam cleaning station retrofit, plant engineers evaluate several factors to determine the optimal system configuration:

For facilities transitioning from portable foam cleaners, the Henger central foam cleaning station offers a modular retrofit path. Plants can begin with a single central station covering the highest-priority production zone and expand the drop-station network as budget permits, without replacing the core unit.

Explore the central foam cleaning station product page for full technical specifications and configuration options.

Daily Operation and Maintenance Tips

Maintaining a central foam cleaning station ensures consistent performance and extends equipment service life:

Daily Procedures

• Daily: Inspect the 25-meter sanitary hose for kinks, abrasion, or chemical degradation. Verify that the auto-retract collector or manual reel operates smoothly.

• Daily: Check the touchscreen display for active alarm messages, particularly water shortage alerts, and resolve before beginning cleaning operations.

• Daily: Verify that the German-imported valve body switches between all four modes (water, foam, disinfectant, compressed air foam) without hesitation or irregular pressure drops.

Weekly Procedures

• Weekly: Flush the entire system with clean water after the last cleaning cycle of the week to prevent chemical residue buildup in the piping network and valve body.

• Weekly: Inspect drop station connections for leaks, and tighten or replace seals as needed to maintain constant pressure throughout the distribution network.

• Weekly: Review the intelligent timing cycle logs on the touchscreen to verify that all programmed cleaning cycles were executed as scheduled across all shifts.

Monthly and Quarterly Procedures

• Monthly: Activate the built-in water scale removal system and inspect internal passages for calcium deposits, particularly in facilities with water hardness above 120 mg/L.

• Monthly: Calibrate the constant pressure control system by comparing displayed pressure values with a reference gauge at the farthest drop station from the central unit.

• Quarterly: Perform a full system audit: chemical dosing accuracy, cycle timing precision, hose condition, valve body response, and touchscreen functionality. Schedule replacement of wear components such as O-rings and seals as needed.

For portable cleaning needs at remote facility zones beyond the central station coverage, the high pressure foam cleaner provides complementary three-in-one functionality.

Industry Frequently Asked Questions

How long does a central foam cleaning station retrofit take?

A typical retrofit project for a mid-sized food processing facility (3,000-5,000 square meters) requires two to three weeks from site assessment to commissioning. The central station installation takes two to three days, ceiling piping network routing requires three to five days, drop station installation takes two days, and commissioning with operator training requires two to three days. Production can continue during installation with phased zone-by-zone commissioning.

Can the central station integrate with existing portable foam cleaners?

Yes. Many facilities retain their existing portable foam cleaners for isolated cleaning tasks or zones beyond the 25-meter hose coverage. The central station and portable units use compatible cleaning chemicals and can share the same chemical storage area. During the transition period, plants typically reduce portable unit count as the central system coverage proves adequate.

What utilities does the central station require?

The central foam cleaning station requires connections to potable water supply (minimum 3 bar inlet pressure), compressed air (6-8 bar for foam generation), and chemical storage with dosing pumps. Electrical supply is 220V single-phase for the touchscreen and control system. The modular design allows utility connections to be pre-routed during facility planning or adapted to existing utility drops during retrofit.

How does the system handle different cleaning chemicals?

The German-imported valve body is compatible with standard food-industry foam, disinfectant, and rinse chemicals. Chemical selection is configured during commissioning based on the facility's sanitation protocol. The intelligent dosing system adjusts concentration ratios for each programmed cycle, ensuring that alkaline foam, acid detergent, and sanitizing solutions are applied at manufacturer-specified dilutions without manual mixing.

What happens during a power outage?

The central station defaults to manual operation mode when power is restored, allowing cleaning to continue with mechanical valve control. The touchscreen and intelligent timing functions resume when power returns. Cycle data logged before the outage is preserved in non-volatile memory for HACCP documentation continuity.
