Smokehouse Rack Cart Washer Factory Retrofit: From Manual Scrubbing to Automated Cleaning Systems

Published: August 5, 2026 | Category: Smokehouse Equipment / Equipment Retrofit | Henger technology

Every production cycle in a smokehouse facility generates a predictable outcome: smoking trolleys and rack frames coated in baked-on fat, polymerized smoke residue, and heat-set protein deposits. As production volumes increase, the gap between manual cleaning capacity and required hygiene standards widens. Facility managers face a decision point — continue allocating labor hours to the scrubbing bay, or retrofit the washing station with an automated smokehouse rack cart washing machine. This article documents two factory retrofit cases where meat and poultry processing facilities transitioned from manual cart cleaning to the SCW-560 automated trolley washer, examining the decision triggers, site modifications, installation process, and operational outcomes that followed.

Factory Operation Core Pain Points of Manual Rack Cart Cleaning

Manual cleaning of smoking trolleys creates a bottleneck that compounds across shifts. The following pain points were documented across multiple facilities before retrofit:

• 45-60 minutes of manual labor per cart — operators scrub frame joints, weld seams, and internal frame gaps with brushes and pressure washers. For a mid-scale smokehouse processing 40-60 carts per day, this consumes 30-60 labor hours daily.

• Inconsistent cleaning results — manual scrubbing cannot maintain uniform pressure, chemical coverage, or contact time across all cart surfaces. Smoke residue in recessed frame joints and hanging hook connection points frequently survives the manual process.

• Water and chemical waste — manual pressure washing consumes 300-500 liters per cart without recirculation. Chemical mixtures are applied by handheld sprayer with no dosing control, leading to overuse and inconsistent concentration.

• Labor availability constraints — skilled sanitation workers are difficult to hire and retain. Turnover in the washing bay means new operators must be retrained on cleaning procedures every few months, introducing variability.

• Production downtime correlation — when manual cleaning falls behind, smoking production must pause. The cleaning bottleneck directly limits batch throughput, especially during peak seasonal demand.

Industry Hygiene Standards for Smokehouse Cart Sanitation

Smokehouse operations face specific hygiene requirements driven by both food safety regulations and production quality demands. The nature of smoked food processing — with its combination of heat, smoke particulates, and protein-rich product contact surfaces — creates an environment where inadequate cart cleaning directly threatens product safety and shelf life.

• HACCP cross-contamination control — smoking trolleys that move between raw material intake, smoking chambers, chilling rooms, and packing zones serve as mobile cross-contamination vectors. Automated cleaning at controlled temperature and pressure provides documented sanitation between zones.

• Smoke residue as biofilm substrate — polymerized smoke deposits on rack surfaces attract moisture and provide an ideal substrate for biofilm formation. Mechanical removal with foam pre-treatment and high-pressure rinse is necessary to prevent biofilm establishment on frame structures.

• Audit documentation requirements — third-party food safety audits (BRC, IFS, SQF) require documented cleaning procedures with verifiable parameters. Manual cleaning logs provide operator self-reporting; an automated system logs actual cycle parameters — pressure, temperature, duration, chemical dosage — as objective audit evidence.

• Allergen cross-contact risk — smoked facilities that process multiple protein types (beef, pork, poultry) on shared trolleys must demonstrate effective cleaning between species. The SCW-560's programmable cycle parameters allow species-specific cleaning protocols with documented parameter recording.

Matching Henger Site Equipment Process Solutions

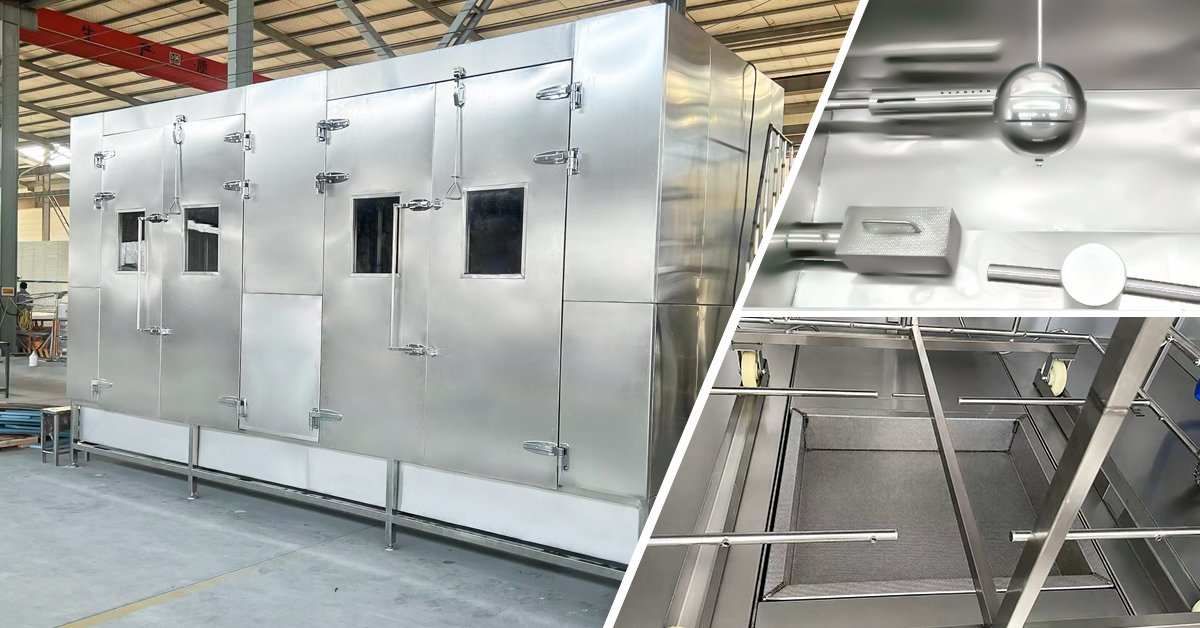

The SCW-560 Smokehouse Rack Cart Washing Machine is engineered specifically for smoking trolley and rack frame geometries. The retrofit process integrates this system into existing smokehouse workflows with minimal production disruption.

SCW-560 Retrofit Specifications

The following specifications formed the basis for both retrofit case studies:

• Cleaning cycle: 3-5 minutes per cart (45-55 carts/hour actual throughput after retrofit)

• Four-stage automated process: foam pre-spray → programmed dwell → high-pressure hot water rinse (3-6 bar, up to 85°C) → water recovery filtration

• 304 stainless steel construction — main body, spray manifold, and water tanks fabricated from food-grade SUS304, suitable for continuous operation in humid smokehouse environments

• Custom-fit dimensions — machine length, width, and height matched to each facility's actual trolley and smoking frame specifications

• Multi-stage circulating filtration — recovers and recycles rinse water, reducing consumption by approximately 40% compared to single-pass manual washing

• Intelligent control panel — independent parameter adjustment for water pressure, temperature, wash duration, and chemical dosage, with cycle data logging for audit records

Retrofit Site Preparation Process

Both retrofit projects followed a structured site preparation sequence:

Overseas Factory Retrofit Case Studies

Case 1: German Smoked Sausage Producer — From Shift Bottleneck to Continuous Throughput

A mid-scale German smoked sausage facility in Bavaria operated two smokehouse chambers with a fleet of 120 stainless steel smoking trolleys. Prior to the retrofitted smokehouse rack cart washing machine installation, a team of 4 sanitation workers handled post-smoke cleaning in an 8-hour overnight shift. The facility processed pork and beef wurst varieties, requiring species-specific cleaning between production batches.

Pre-retrofit conditions:

• 4 sanitation workers × 8-hour overnight shift = 32 labor hours dedicated solely to cart cleaning

• Average cleaning time: 40 minutes per cart (manual scrubbing + pressure wash). Maximum throughput: approximately 48 carts per 8-hour shift

• Water consumption: approximately 350-450 liters per cart (single-pass pressure washing). Daily water usage for cart cleaning alone: 16,800-21,600 liters

• Chemical cost variability: manual mixing of foam detergent and disinfectant with no dosing control — monthly chemical costs fluctuated ±30% depending on operator habits

• Audit finding (IFS): manual cleaning effectiveness inconsistent — swab test results showed ATP readings ranging from 50 to 350 RLU on frame joints, exceeding the facility's 150 RLU threshold on 22% of tested carts

Retrofit solution: One SCW-560 unit with custom dimensions matching the facility's 120 trolley fleet. The wash bay was reconfigured with a direct cart track feeding the washer inlet, eliminating manual trolley maneuvering. A 380V/50Hz power line was extended to the bay, and an existing hot water boiler (85°C capacity) was connected to the SCW-560's heating loop.

Post-retrofit results (6-month follow-up):

• Labor reallocation: 2 sanitation workers × 4-hour shift = 8 labor hours (75% reduction). Reassigned workers moved to production line quality inspection roles.

• Cleaning throughput: 3.5 minutes average cycle per cart, achieving approximately 50 carts per hour. Daily capacity of 120 carts cleared in 2.5 hours.

• Water consumption: reduced to approximately 200 liters per cart with recirculation filtration (43-54% reduction). Annual water savings: approximately 4.2 million liters.

• Chemical dosing consistency: programmable chemical injection calibrated to 2% foam concentration and 0.5% disinfectant solution — monthly chemical costs stabilized, showing 18% cost reduction from pre-retrofit average.

• IFS re-audit result: ATP swab readings consistently below 80 RLU across all cart surface points. Zero non-conformances related to equipment cleaning in the subsequent annual audit.

Case 2: Vietnam Poultry Smokehouse — Solving High-Humidity Corrosion and Labor Turnover

A poultry processing and smoking facility near Ho Chi Minh City operated a single smokehouse line producing smoked chicken and duck products for domestic and export markets. The facility maintained a fleet of 80 stainless steel hanging racks. The primary challenges were high ambient humidity (80-90% RH year-round) accelerating manual fatigue, corrosive cleaning chemical exposure causing frequent worker turnover, and cart surfaces developing rust spots from inadequate drying after manual cleaning.

Pre-retrofit conditions:

• 6 sanitation workers rotating across two 6-hour shifts. Annual turnover rate in the washing bay exceeded 60% due to the harsh working environment.

• Cleaning time: 50-55 minutes per rack (heavy smoke residue from tropical hardwood smoking). Throughput bottleneck limited smokehouse production to 35 racks per 12-hour production day.

• Corrosion issue: manual drying was inconsistent — racks stored wet developed surface rust at weld points within 6-8 months, requiring replacement of approximately 15 racks annually.

• Export audit pressure: Japanese and Korean importers required ATP swab certification below 100 RLU. Manual cleaning achieved this on only 70% of racks, requiring re-cleaning of failed racks and delaying shipment schedules.

Retrofit solution: One SCW-560 with corrosion-resistant 304 stainless steel construction, custom-sized to the facility's hanging rack dimensions. The unit was placed in a dedicated wash room with enhanced ventilation. Hot water connection was routed from the facility's existing boiler, and a dedicated drainage trench with grease trap was installed to handle the high-fat poultry effluent. Due to Vietnam's 380V/50Hz power grid compatibility, no voltage conversion was required.

Post-retrofit results (12-month follow-up):

• Labor reduction: 2 operators per shift (from 6 to 4 total across two shifts — 33% reduction). Zero washing bay staff turnover in the 12 months post-retrofit due to improved working conditions.

• Cleaning throughput: 3-4 minutes per rack, achieving approximately 50 racks per hour. The 80-rack fleet is now cleaned in 1.6 hours, removing the production bottleneck.

• Corrosion elimination: automated hot water rinse at 82°C combined with residual heat drying eliminated wet storage. Zero rack replacements due to corrosion in the 12-month follow-up period.

• Export compliance: ATP readings consistently below 60 RLU. Japanese audit in month 8 passed with zero cleaning-related findings. Korean buyer increased order volume by 35% following the audit result.

• ROI achievement: labor savings, water reduction, chemical optimization, and eliminated rack replacement costs combined to achieve full payback of the SCW-560 investment within 11 months.

Retrofit Selection Guide for Smokehouse Cart Washers

Facilities considering a smokehouse rack cart washing machine retrofit should evaluate the following factors to determine the correct approach:

Daily Operation and Maintenance After Retrofit

Post-retrofit maintenance of the SCW-560 smokehouse rack cart washing machine follows a tiered schedule adapted from both case study facilities:

Daily (end of each shift):

• Inspect spray nozzles for clogging — smoke residue particles can accumulate in nozzle orifices. Clear any visible blockages with the provided nozzle cleaning tool.

• Check primary filter screen in the water recovery tank — remove and rinse accumulated grease and particulate matter. This 2-minute check prevents reduced water flow and maintains spray pressure consistency.

• Verify chemical tank levels — foam detergent and disinfectant reservoirs should be topped up to ensure uninterrupted operation for the next shift.

• Run a brief visual inspection cycle — observe spray pattern coverage on an empty cart to confirm all nozzle banks are functioning before full production cleaning begins.

Weekly:

• Remove and deep-clean all filter stages in the multi-stage filtration system. The German facility found that weekly filter maintenance was sufficient for pork and beef fat residues; the Vietnam facility, processing higher-fat poultry, performs this check twice weekly.

• Inspect door seals and gaskets for wear or heat damage. Smokehouse environments expose seals to elevated ambient temperatures — replace any seal showing cracks or compression set.

• Calibrate chemical dosing pumps — verify that the foam concentration and disinfectant dilution match the programmed setpoints. A 10% deviation from setpoint triggers recalibration.

Monthly:

• Check pump motor current draw — increased current consumption may indicate bearing wear, impeller blockage, or seal degradation. Both case study facilities log motor current readings monthly for trend analysis.

• Inspect electrical connections in the control panel for moisture ingress. Smokehouse environments have elevated humidity; tighten any loose terminals and verify panel gasket integrity.

• Verify temperature probe accuracy against a calibrated reference thermometer. Deviation beyond ±1.5°C triggers probe replacement.

Quarterly/Annual:

• Quarterly: Perform a full spray coverage test with clean water — document spray pattern coverage on all nozzle levels, comparing against the baseline pattern recorded at commissioning.

• Semi-annual: Replace water filter cartridges in the fine filtration stage (0.5mm mesh). The Vietnam facility, operating in harder water conditions, performs this quarterly.

• Annual: Comprehensive inspection of all stainless steel welds and frame structure. Replace pump mechanical seals as preventive maintenance (12-18 month service interval). Full control system function test and parameter recalibration.

Industry Frequently Asked Questions

Q: How long does a smokehouse rack cart washer retrofit take from decision to operation?

A typical retrofit timeline from purchase order to full operation is 4-6 weeks, including 1-2 weeks for custom manufacturing to cart dimensions, 1 week for shipping, and 1-2 weeks for site preparation and installation. Both case study facilities transitioned to the automated system within this timeframe without interrupting production schedules.

Q: Can the SCW-560 clean different cart types in the same facility?

Yes. The intelligent control panel stores multiple cycle programs with independent parameter settings — pressure, temperature, duration, and chemical dosage — for different cart types or contamination levels. Operators select the appropriate program from the panel without mechanical adjustment.

Q: What utility connections are required for the retrofit?

The SCW-560 requires: 380V/50Hz/3-Phase power (customizable to local voltage), hot water supply connection (up to 85°C), compressed air line for pneumatic valves, and a floor drainage trench capable of handling 300 L/h peak flow. A site survey before retrofit confirms utility availability and identifies any required modifications.

Q: How is chemical dosing calibrated and maintained after retrofit?

Chemical dosing pumps are calibrated during commissioning to deliver the specified foam concentration (typically 2-5%) and disinfectant dilution (typically 0.5-1%). Weekly verification checks ensure dosing accuracy. Chemical selection is facility-specific — the system is compatible with standard food-industry alkaline foam detergents and quaternary ammonium or peracetic acid disinfectants. Visit the

Q: What happens if the SCW-560 malfunctions during a production run?

I'd like to know — but the SCW-560 includes an emergency stop button and thermal overload protection as standard safety features. If a malfunction occurs, the control panel displays a diagnostic code indicating the affected subsystem. Most issues (nozzle blockage, filter clogging, chemical tank empty) can be resolved by the operator within 5-10 minutes following the troubleshooting guide. For electrical or mechanical faults, Henger Technology provides remote diagnostic support via video call. Both case study facilities reported uptime exceeding 97% in their first year of operation.

Q: Is remote installation support available for overseas retrofit projects?

Yes. Henger Technology provides remote installation guidance and operator training via video call with detailed documentation. The SCW-560 is delivered pre-assembled to minimize on-site assembly time. For both case study facilities — Germany and Vietnam — the entire commissioning process was completed remotely with local contractor support for utility connections.

To evaluate whether an automated smokehouse rack cart washing machine is right for your facility, contact Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. for a retrofit consultation. Provide your cart dimensions, daily throughput requirement, and existing utility specifications for a customized SCW-560 proposal.
