Pass Box for Cleanrooms: How to Choose the Right Transfer Hatch

Introduction

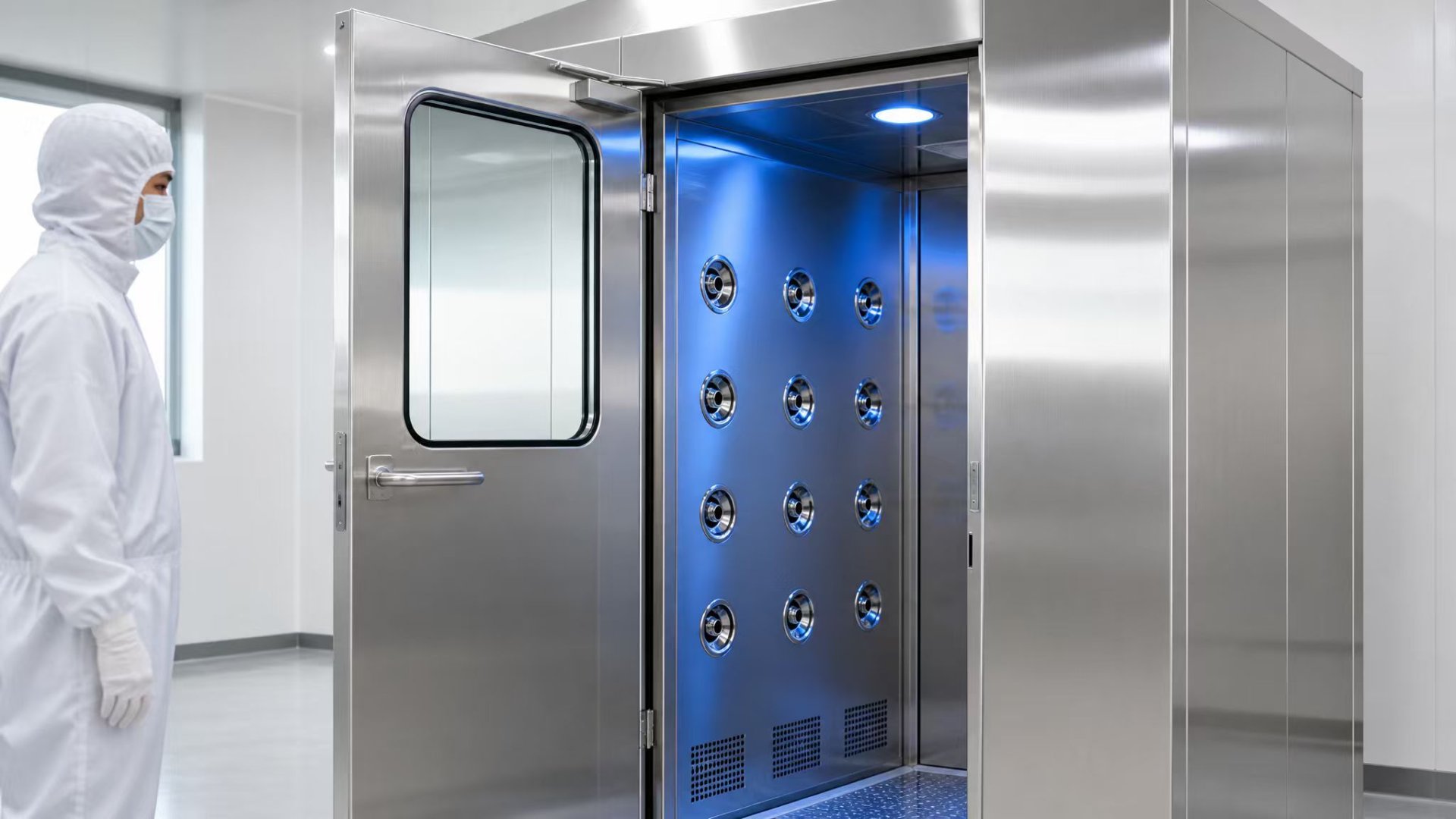

Every time a material moves from a non-controlled corridor into a cleanroom, it carries a contamination risk. Boxes, components, tools and consumables all arrive from the outside world covered in particles that have no place inside a classified production zone. Opening a cleanroom door to accept a delivery is the simplest way to undo everything the ventilation system, the personnel hygiene entrance, and the air shower have achieved. The pass box — also called a transfer hatch or transfer window — eliminates that trade-off. It allows materials to cross the cleanroom boundary without breaking the pressure differential or exposing the interior to unfiltered corridor air. For pharmaceutical manufacturers, electronics assemblers, medical device producers, and food-grade facilities operating under ISO or GMP requirements, the pass box is not a convenience feature: it is a contamination control asset built into the building envelope itself. This guide explains how pass boxes work, where they are used, and what to evaluate when specifying one for your facility.

What a Pass Box Does and Why It Matters

The function of a pass box is straightforward: it creates a sealed intermediate chamber between two environments of different cleanliness levels, allowing objects to pass from one side to the other without either door being open at the same time. The two interlocked doors — one facing the clean room, one facing the corridor or lower-grade area — cannot both open simultaneously. This mechanical or electronic interlock is the defining safety feature of the device.

Without a pass box, every material transfer is a hygiene event that requires gowning, procedure, and personnel movement. With one installed in the wall, a worker on the corridor side loads materials into the hatch, closes the outer door, and a worker on the clean side retrieves them after the inner door is released by the interlock. The cleanroom pressure differential is maintained throughout.

This matters across a wide range of industries:

• Pharmaceuticals and biotech: GMP guidelines require documented material transfer procedures. A pass box with an airlock function and self-closing interlocked doors provides a defensible, auditable transfer method.

• Medical device manufacturing: ISO 13485 environments need to control particulate introduction. Pass boxes are integral to keeping assembly areas at their rated cleanliness level during production.

• Electronics and semiconductor: Even ISO 6 and ISO 7 cleanrooms see yield losses from particulate contamination. Pass boxes prevent particle introduction during wafer, component, and tool transfers.

• Food and beverage (high-care zones): High-care processing areas benefit from a defined transfer point for packaging materials and tools, reducing the need for personnel to cross hygiene boundaries.

Static Pass Box vs Dynamic Pass Box: The Core Decision

The most important specification decision when selecting a pass box is whether to choose a static (passive) model or a dynamic (active) model. The difference determines the level of decontamination that occurs during the transfer, and therefore which cleanliness applications each type suits.

Static pass boxes rely entirely on the interlock to prevent simultaneous door opening. The chamber itself is sealed and clean, but no air is circulated and no filtration occurs during the transfer. For ISO 7 and ISO 8 environments — the majority of pharmaceutical secondary packaging, food high-care, and general device assembly areas — this level of protection is sufficient and cost-effective.

Dynamic pass boxes add a built-in HEPA fan filter unit that continuously circulates filtered air inside the transfer chamber while materials wait. Some models also include a UV sterilization cycle. This active purging removes any particles shed by the material surface during the transfer, making dynamic pass boxes the correct choice for ISO 5 and ISO 6 environments, aseptic processing areas, and any application where the material itself may be a particle or microbiological source.

A practical rule: match the pass box type to the rating of the cleanroom it serves. If the room is ISO 7 or lower in strictness, a static model is the appropriate and economical choice. If the room is ISO 6 or stricter, or if the product is sterile or highly sensitive, specify a dynamic model.

Key Specifications to Evaluate

Beyond the static vs dynamic choice, five specifications determine whether a pass box will perform correctly over its service life.

1. Interlock Type

The interlock prevents both doors from opening simultaneously — the core safety mechanism. Mechanical interlocks use a physical latch system: releasing one door locks the other. Electronic interlocks use sensors and solenoid locks, enabling additional features such as status indicators, alarm outputs, and integration with building management systems. Electronic interlocks are standard on dynamic pass boxes and are increasingly common on static models used in regulated environments, where audit records may require documented door events.

2. Construction Material

The interior of the pass box must be smooth, non-porous, and resistant to cleaning agents. Stainless steel (304 grade as standard, 316 for more aggressive disinfectants) is the material of choice for pharmaceutical and food-grade applications. The viewing window, where fitted, is typically toughened glass flush with the interior surface to eliminate ledges where particles accumulate.

3. Chamber Dimensions

Pass boxes are specified by internal usable volume, not external size. Standard chamber heights range from 400 mm to 600 mm, widths from 500 mm to 800 mm, and depths from 400 mm to 600 mm, accommodating trays, small equipment, and consumable packaging. For larger items — equipment components, bulk packaging — larger custom chambers are available. Measure the largest object that will routinely pass through and specify the chamber accordingly, with margin.

4. UV Sterilization Lamp

UV lamps are a standard option on static pass boxes and standard equipment on dynamic models. They provide surface decontamination of the chamber and of objects left inside before transfer. Key points: UV lamps have a rated service life (typically 8,000–10,000 hours) and must be replaced on schedule; the timer should be configurable (typically 15–30 minutes per cycle); and the lamp must be shielded from direct operator exposure, relying on the closed chamber during operation.

5. Installation Interface

Pass boxes are typically installed flush into a cleanroom wall panel during construction, with flanges and sealing around the perimeter. Retrofit installation into an existing wall is possible but requires careful sealing to maintain cleanroom integrity. Confirm wall thickness compatibility and whether the supplier provides a pre-fabricated mounting frame.

Common Installation Configurations

Pass boxes are positioned to match material flow logic in the facility. Three configurations cover most applications:

Cleanroom wall installation (standard): The pass box is set into the cleanroom boundary wall between the clean corridor or production zone and the adjacent non-classified corridor. This is the default layout — materials arrive from the external corridor and enter the clean side through the hatch.

Between cleanroom grades: In multi-grade facilities, a pass box between an ISO 7 and an ISO 6 zone controls transfer between adjacent classified areas without personnel crossing. A dynamic model is typically specified here because both sides are classified environments.

Gowning room to production zone: In pharmaceutical plants, materials such as consumables, tools, and in-process components often transfer through a pass box between the gowning area and the production cleanroom. This eliminates the need for a gowned operator to exit, collect materials from outside, and re-enter.

Maintenance and Validation Considerations

A pass box is a controlled component, and in regulated industries it requires periodic qualification and maintenance.

Interlock function test: The interlock should be tested at installation and at defined intervals (typically quarterly). A failed interlock is a GMP deviation — the pass box becomes a contamination risk rather than a control.

UV lamp replacement: Track cumulative lamp hours against the rated service life. A degraded UV lamp provides false assurance. In pharmaceutical environments, UV intensity should be verified periodically with a UV meter.

HEPA filter integrity (dynamic models): Dynamic pass box HEPA filters require periodic integrity testing (particle count or DOP/PAO challenge) to confirm they have not developed leaks. Filter replacement schedule depends on usage and the particulate load of materials transferred.

Cleaning and wipe-down: The interior surfaces should be wiped down with an approved disinfectant on a defined schedule. Smooth stainless steel interiors minimize residue accumulation and resist chemical attack, which is why material selection at specification time directly affects maintenance burden.

Selecting a Pass Box for Your Facility: A Practical Checklist

· Determine the cleanroom ISO classification on both sides of the transfer point

· Select static (ISO 7–8) or dynamic (ISO 5–6) based on room classification

· Measure the largest object that will routinely pass through; add 20% margin to determine chamber dimensions

· Confirm the interlock type required (mechanical vs electronic) and whether audit trail output is needed

· Specify 304 or 316 stainless steel based on disinfectants in use

· Confirm wall thickness and installation method (flush-mount, surface-mount, or retrofit)

· Confirm UV lamp timer range and rated lamp life

· Clarify validation support requirements (IQ/OQ documentation, certificate of conformance)

Conclusion: Getting the Transfer Right

The pass box is one of the least glamorous components in a cleanroom, but one of the most consequential for contamination control in practice. Every material transfer that bypasses the cleanroom door is a contamination event that did not happen. In environments where product quality, regulatory compliance, and audit readiness depend on maintaining a documented, defensible barrier at every material entry point, the pass box earns its place in the facility design from day one.

Henger supplies static and dynamic pass boxes in 304 stainless steel, with mechanical and electronic interlock options, UV sterilization, and HEPA filtration for dynamic models. Custom chamber dimensions are available for non-standard material sizes, and factory-direct support means your engineering team gets accurate specifications and installation guidance rather than a catalogue number.
